Printytron Extruder Figure, 85 mm Wide
Created today
Description
Desk figure of the Printytron character, styled after an extruder. It prints lying on its back, so the whole underside sits flat on the plate and no supports are needed. The body has a recessed magenta screen with a face (eyes with pupil indents, curved eyebrows, smile), a teal button on a side box, curved arms ending in round hands, and a hexagonal tapered nozzle on a square collar. "Printy.dev" is engraved below the screen.
Specs
- Overall size: about 85 mm wide, 76 mm long, 15.5 mm tall as printed
- Orientation: back face down, screen facing up
- Body thickness: 14 mm; arms 5 mm thick; hands 10 mm thick
- Side box: sloped underside (about 50° from the plate) so it prints without supports
- Antennae: run down to the back face, so they print flat
- Nozzle: hexagonal cone with a flat underside along its full length, on a 22 mm square collar with a 1 mm bottom chamfer
- Engraving: "Printy" at 8 mm and ".dev" at 4 mm, Space Mono, about 1 mm deep
- Colours: yellow body, magenta screen, teal button; suited to a multicolour print or painting after printing
Images
More like this
Explore more in Decor & Display →

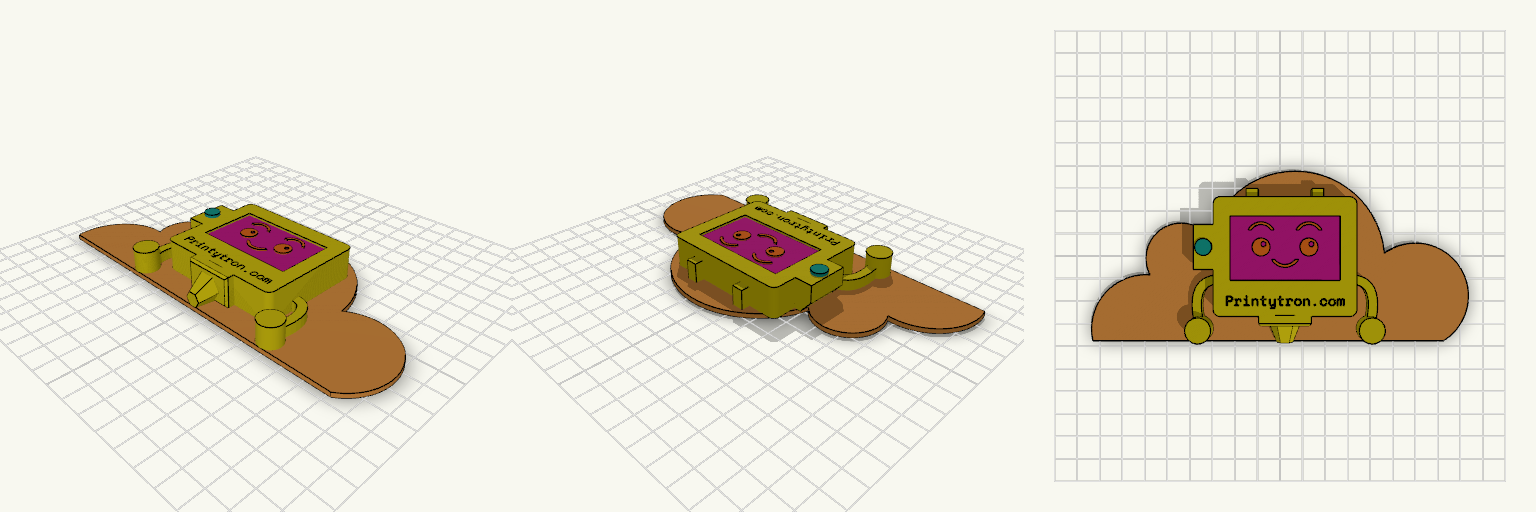

Printytron Extruder Figure on Cloud Plate
