Screwdriver Handle With Bit Storage
Created today
Description
Digging through a loose pile for the exact bit wastes time, so this 1/4-inch hex screwdriver handle keeps six spare bits loaded directly in the base. The main driving socket holds the active bit with a recessed magnet, while the spare slots are kept out of the way so the sharp ends stay clear of your grip while turning.
Fit and Hardware
- Overall Size: 100 mm long by 30 mm diameter.
- Main Socket: 1/4-inch (6.35 mm) hex, sized to 6.6 mm for printed clearance, with a pocket at the bottom for a standard 6x3 mm neodymium magnet.
- Spare Magazine: Six hex slots cut 18 mm deep, leaving roughly 7 mm of a standard 1-inch bit exposed so they can be pulled out by hand.
- Grip: Six flutes offset from the bit holes to maintain wall thickness and provide torque.
Images
More like this
Explore more in Workshop & Tools →

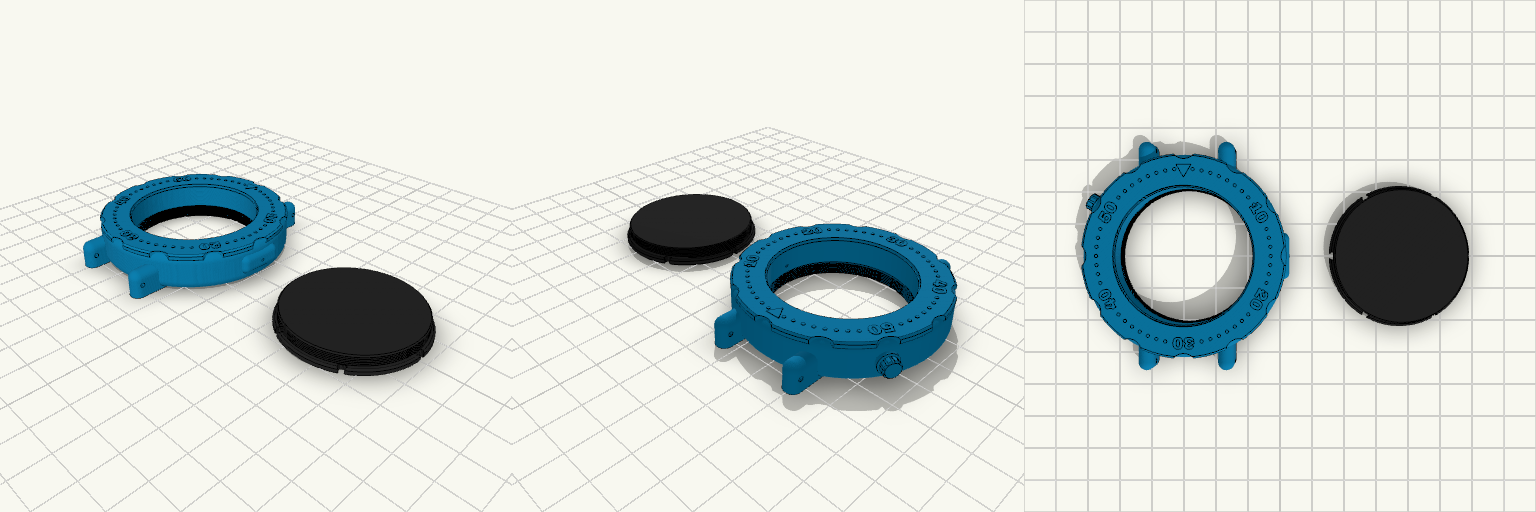

montre
What it's for A 3D-printable watch case modelled on dive-watch proportions. Features a scalloped rotating-style bezel with minute markers, a fine threaded base for the case back, and integrated lugs for a standard watch strap. The inner cavity tapers to secure a movement, with a lip cut for a domed crystal. Dimensions Overall Case: 42 mm diameter Inner Cavity: 41 mm base, tapering to 40.4 mm at the dial Lugs: Spaced for a 20 mm strap Crystal Seat: 41.4 mm diameter, 1 mm deep Stem Hole: 1.1 mm diameter at the 3 o'clock position Threads: 0.5 mm pitch, matching case back included Print notes The case back uses a very fine 0.5 mm thread pitch. This requires a well-calibrated printer and low layer heights (0.12 mm or finer) to print cleanly. You may need to scale the case back slightly on the X and Y axes depending on your printer's tolerances.
Wide Stance Filament Spool Stand
Filament spools that hang off the edge of undersized holders are a constant source of drag and jams. This A-frame stand widens the track, catching oversized spools before they can derail. Fit and Bed Limits Inner Clearance: 160 mm between the uprights Base Width: 180 mm Spindle Height: 192 mm Printability: The entire layout is spaced to fit on a 220x220 mm bed without needing rotation or supports.

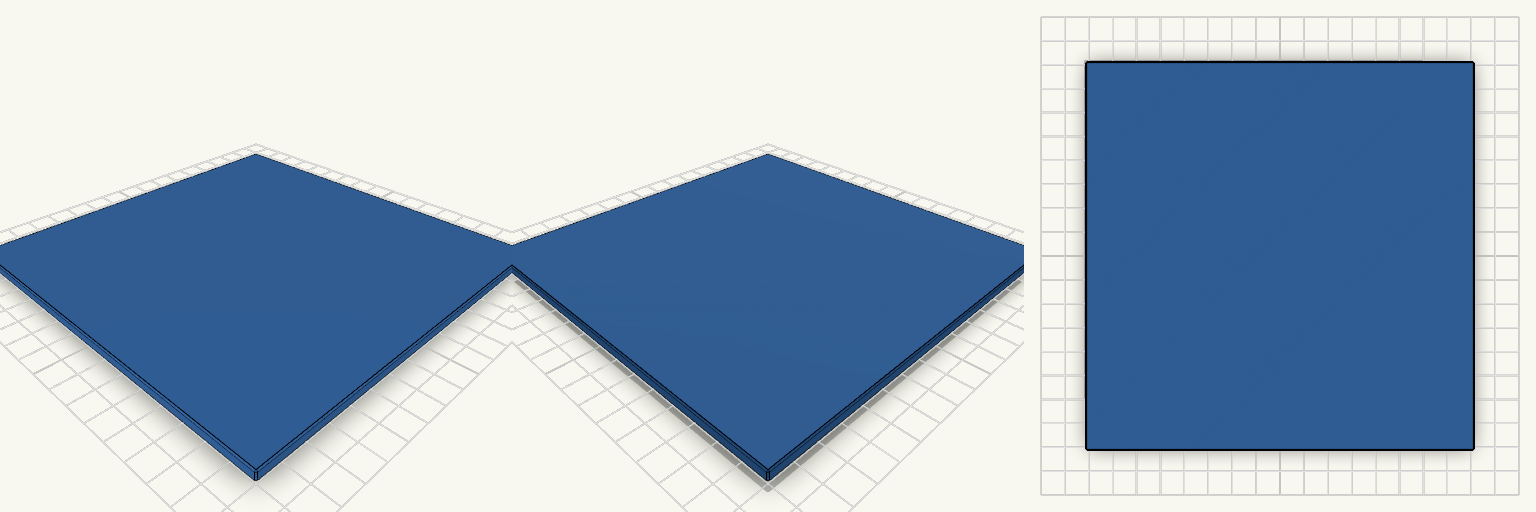

160mm Square Base Plate
What it's for A simple, flat 160mm square plate, suitable as a foundational base, shim, or blank canvas for further structural modifications. Dimensions Width & Length: 160 mm x 160 mm Thickness: 4 mm Remix ideas Subtract precise mounting holes to use it as an electronics sled. Carve out a hex grid to create a lightweight mesh panel. Emboss or deboss a logo into the top face.
20 mm Round Disc, 2 mm Thick
A flat 20 mm round disc, for when a 2D circle needs to become something you can print and hold. A bare circle has no thickness, so this gives it enough to print as a solid piece. Print details Diameter: 20 mm Thickness: 2 mm (assumed, since a plain circle has no height) Sits flat on the bed, no supports needed Prints in any filament

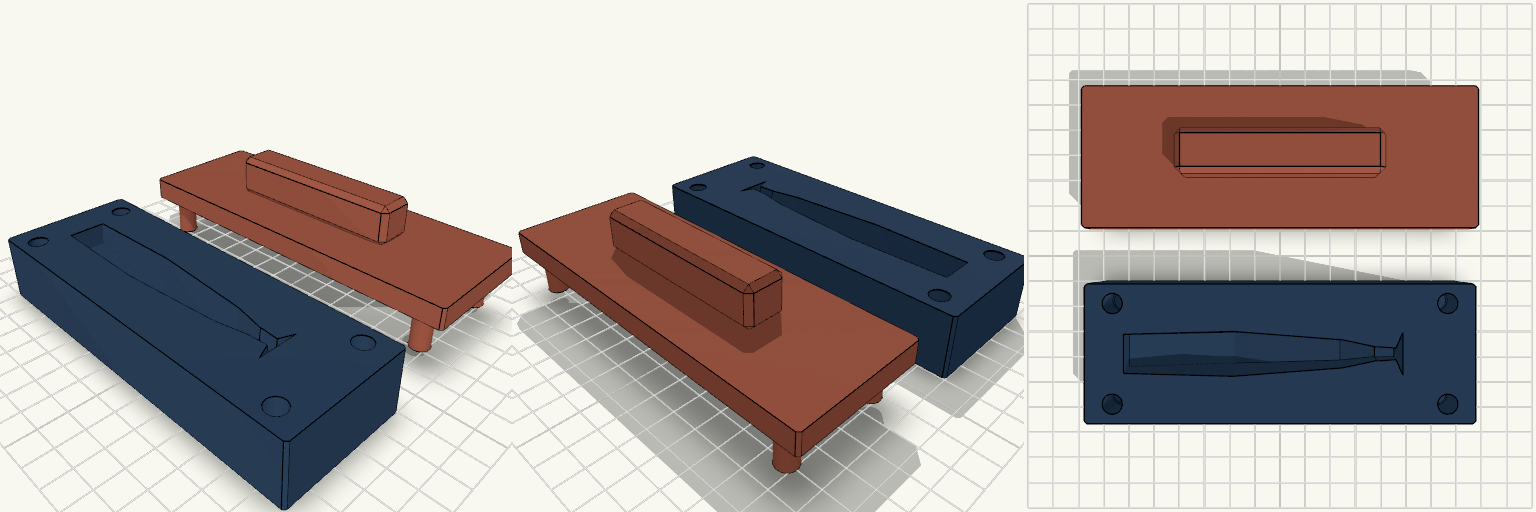

Es ist fertig
