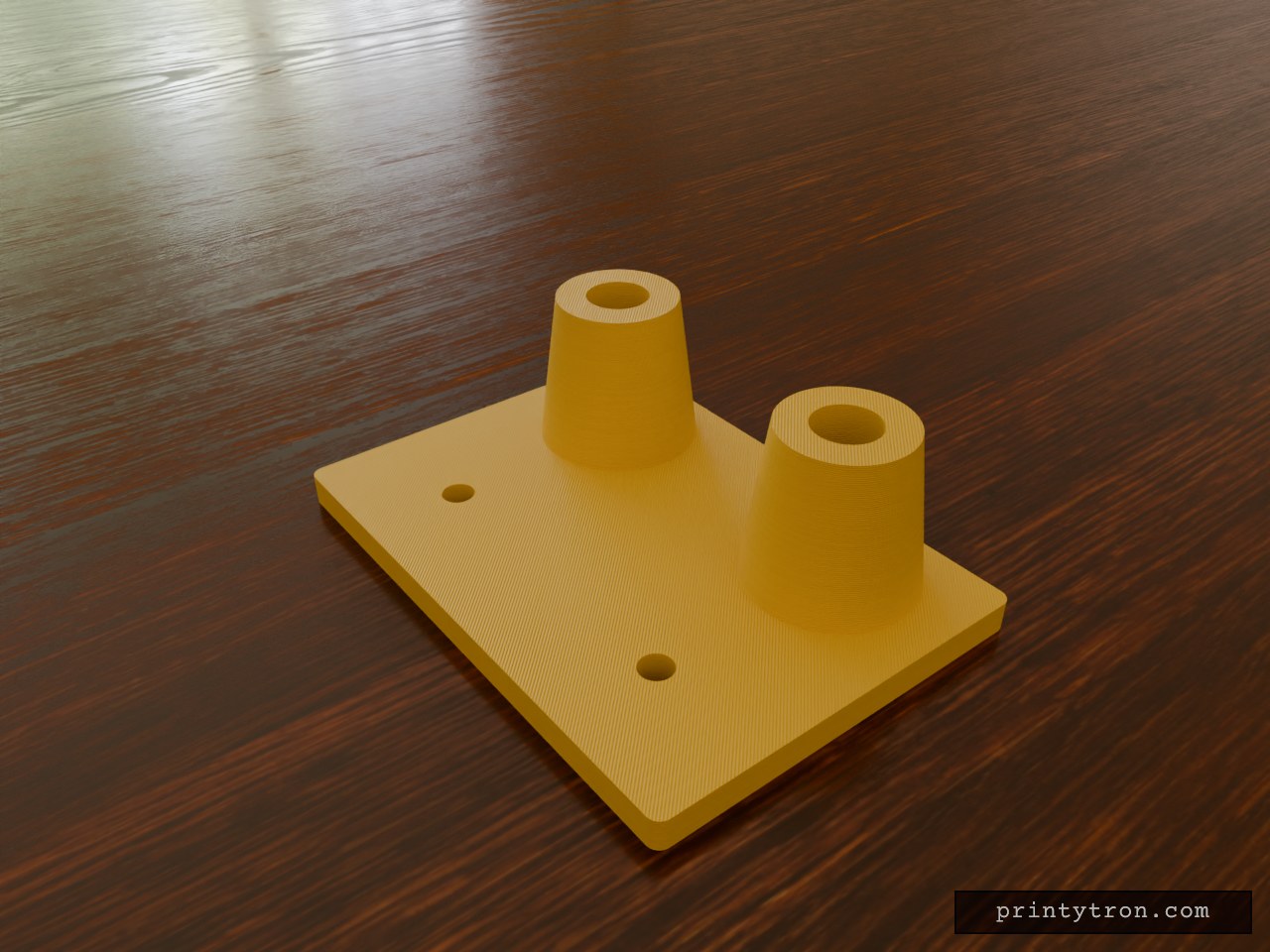

Shelf Pin Drill Guide Jig
Created 1 months ago
Description
A low-profile template for drilling perfectly spaced 5mm adjustable shelf pin holes. Features a 5mm base plate to minimize material use, with 30mm tall tapered bosses to fully support standard metal drill guide bushings.
- Bushing Holes: 10.2mm diameter to accommodate 10mm OD metal drill bushings.
- Indexing Holes: 5.2mm diameter, fits standard 5mm shelf pins to lock the jig in place for the next run.
- Spacing: 32mm vertical pitch, 50mm horizontal spacing (20mm and 70mm from the edges of a 90mm wide plate).
- Thickness: 5mm base, 30mm overall height at the bushings.
