Sleeve — 0.385" OD Spacer Tube
Created today
Description
Sleeve is a plain, precise hollow cylinder sized in inches: a straight-through bore and a clean outer wall, ready to use as a spacer, bushing or standoff.
Dimensions
- Outer diameter: 0.385" (9.78 mm)
- Inner diameter: 0.26" (6.60 mm)
- Length: 0.75" (19.05 mm)
- Wall thickness: about 0.0625" (1.59 mm)
Print notes
- Print standing on end, no supports needed.
- Bore may print slightly tight; ream or scale up a touch if fit matters.
Images
More like this
Explore more in Workshop & Tools →

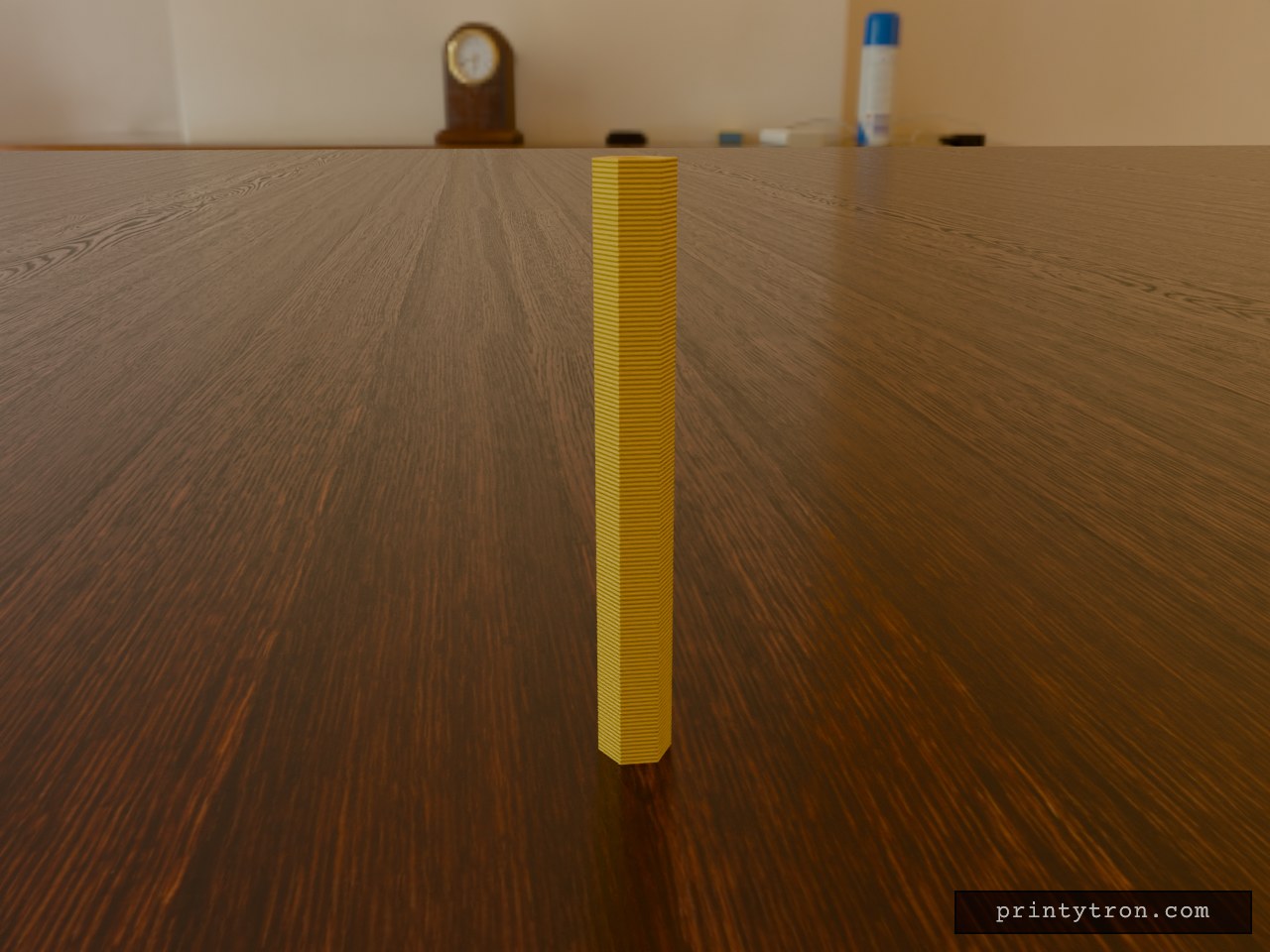

Hex Tube 40 mm Tall With Center Bore
A hex tube, 4 cm tall, for when a round spacer or standoff spins or rolls where a flat-sided one would hold still. The 2.5 mm bore runs the full length so a rod, wire or screw passes straight through. Key dimensions Height: 40 mm Width: 5.15 mm point to point Center bore: 2.5 mm diameter, through the full length Printing Print standing upright, no supports needed. Walls are thin at the hex flats, so use at least 2 perimeters and a small nozzle if possible.

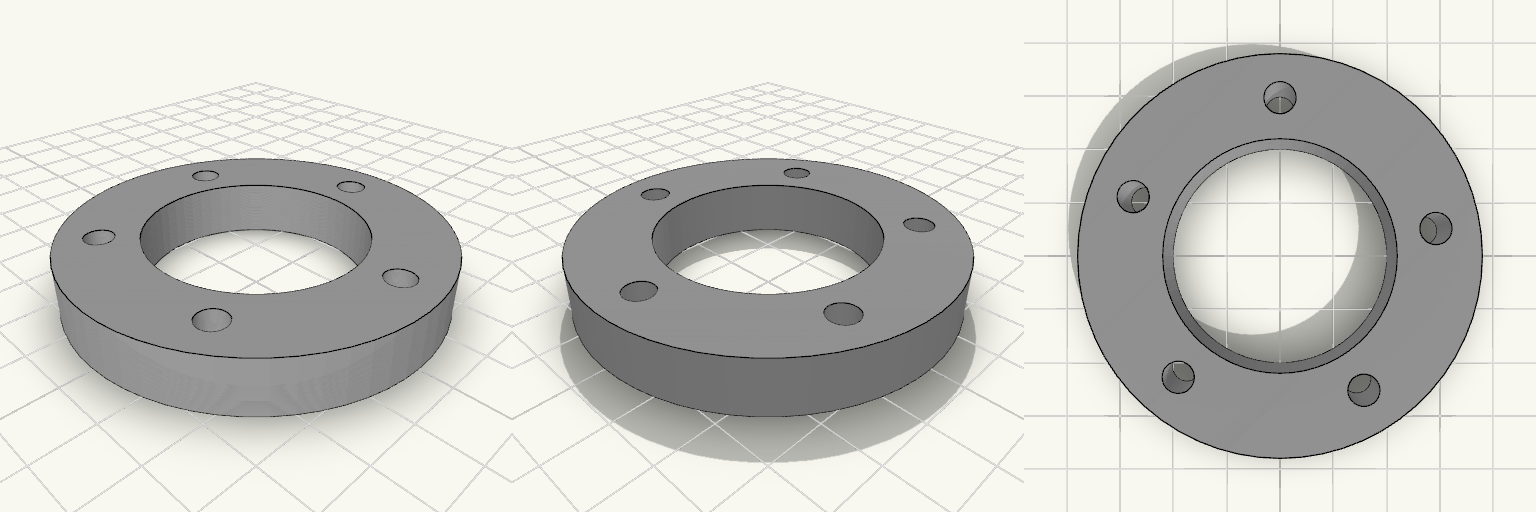

69 mm Round Spacer, 5 Holes
