Slim Tiered Playing Card Rack
Created today
Description
What it's for
A sleek, tiered playing card holder designed to display up to five rows of cards. It features 15-degree angled blind grooves to securely pitch cards back at a comfortable viewing angle, with progressively taller tiers ensuring full visibility for the rear rows.
Dimensions
- Overall footprint: 220 mm wide × 85 mm deep
- Height: 75 mm (at the rear tier)
- Tiers: 5 rows, each stepping up by 15 mm
- Internal: Fully hollowed with an enclosed internal void, featuring 4 mm robust walls, a continuous solid base, and internal bridging ribs to print cleanly while conserving filament.
Print notes
- Designed to be printed flat on its base without external supports.
- The internal structure consists of safely bridged spans (~39 mm each) supported by internal ribs, meaning you shouldn't need infill to support the roof layers.
Images
More like this
Explore more in Storage & Organization →
Standard Card Interlocking Holder
A five-row holder for standard 63.5 × 88.9 mm playing cards. The deck tilts cards back at a 15-degree angle for easy reading without letting them spill. The holder breaks down into two halves using a 3-tab interlocking jigsaw joint laid flat into the base. The base stays completely solid underneath to protect the cards, and the joint pulls straight apart vertically when you need to pack it away. Specs Total Assembled Length: 330.2 mm (13 inches) Clearance: 0.25 mm per side on the interlocking puzzle tabs Groove Floors: Solid, minimum 3 mm thick beneath the slots
Support 25 Clés USB
Un support de bureau lourd et stable conçu pour ranger et organiser 25 clés USB en un seul endroit. Variables à ajuster Espacement (28 mm x 23 mm) : Pensé pour accepter la plupart des corps de clés USB sans qu'elles se chevauchent. Peut être resserré si vous n'avez que des clés très fines. Taille des encoches (14 mm x 7,5 mm) : Les fentes offrent un jeu confortable autour d'un connecteur USB-A standard. Profondeur (12 mm) : Laisse les clés bien droites tout en conservant 3 mm de matière pleine au fond du bloc (hauteur totale de 15 mm).
150mm Borg Friendship Vault
Zak's Borg Friendship Vault. Three-piece print, designed to drop in and seat clean without fasteners. Overall Footprint: 150mm x 150mm. Total Height (Assembled): 145mm. Internal Payload Bore: 65mm diameter x 105mm depth. Cage Windows: 90mm span, designed to bridge flat across the top without support on well-calibrated machines. The top cap runs a 118mm square boss to locate itself on the outer frame, plus a 64.5mm cylindrical plug to lock into the core and prevent horizontal slop. Print the outer cage and cap in black PETG; run the core in fluorescent PLA. Keep your cooling aggressive for the long window bridges.
65mm Wood Hook Phone Bracket
A heavy-duty hook bracket to suspend a phone over a 60mm wooden beam or headboard. The main channel is sized at 65mm for clearance, dropping a device tray down 65mm from the top edge. Fitment: 65mm interior gap clears standard 60mm stock. Tray Specs: 16mm deep with a 3mm inward tilt to keep the device seated against the backrest. Width: 50mm overall extrusion. Printability: Designed to be printed flat on its side. Requires no supports.
Screw-Through Dowel Shelf Bracket
A two-part wall bracket for holding a 13 mm wooden dowel, intended as a filament spool shelf. A narrow wall plate carries a ledge that takes the vertical load, and a separate flat-printed arm rests on that ledge. One screw passes through the arm's back flange and the wall plate into the wall, locking the two parts together. The screw head sits in a recess in the arm. Wall plate: 24 mm wide, 84 mm tall, with a ribbed ledge under the arm Arm: 12 mm thick, printed on its side with no supports Dowel hole: 13.6 mm, 150 mm out from the wall plate Fixing: one screw near the top, shared by both parts Print two sets for a pair of brackets

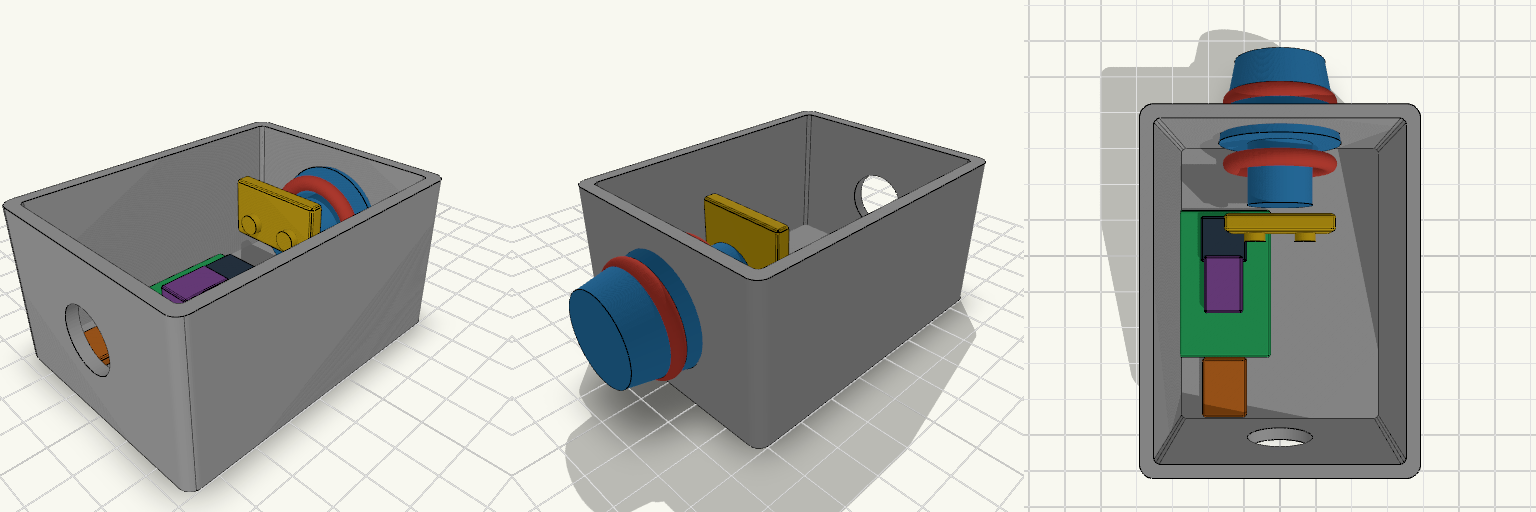

Smart Tap Layout
