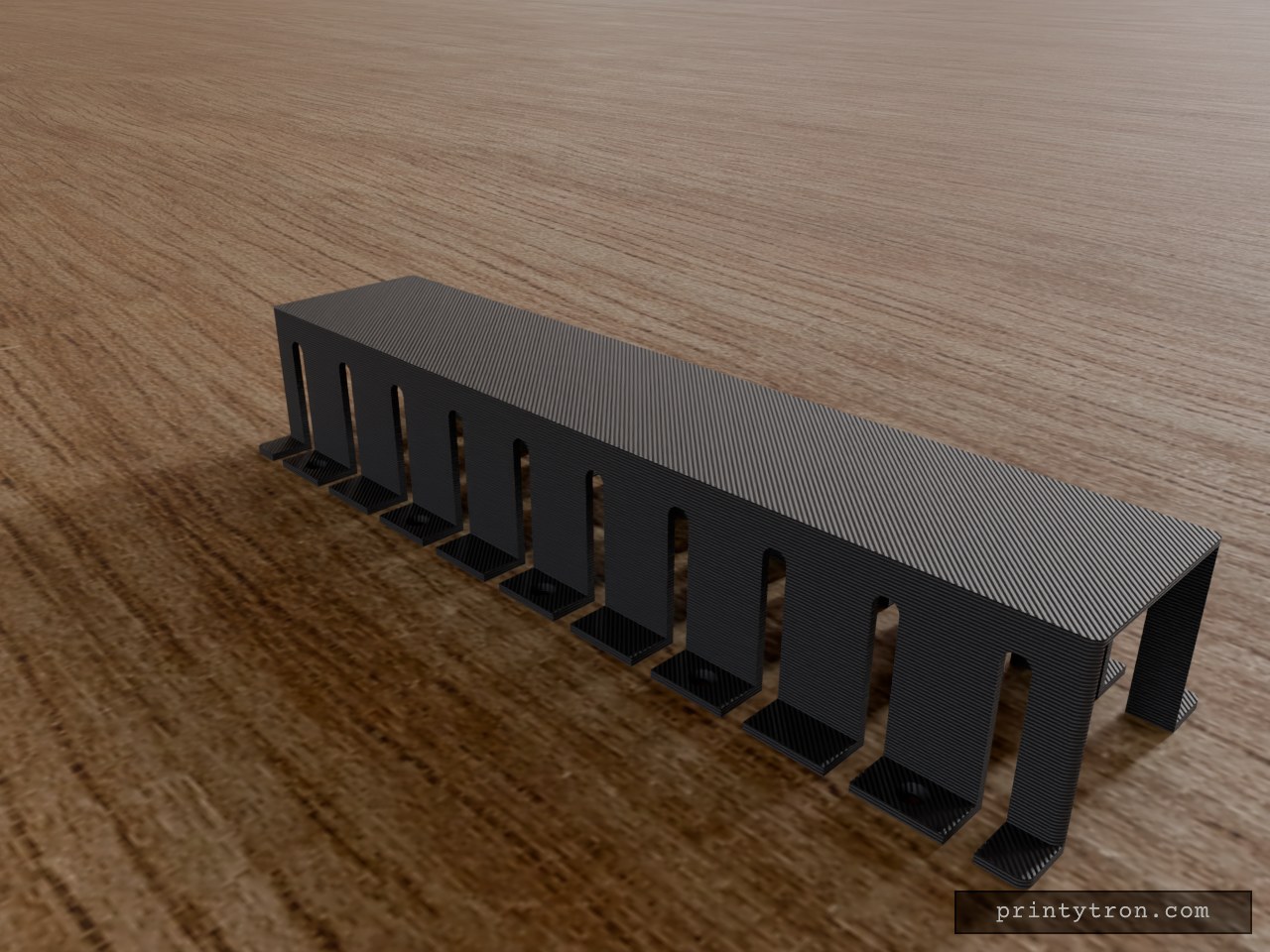

Slotted Under-Desk Cable Tray
Created yesterday
Description
What it's for
Designed to mount directly to the underside of a desk to hold a power strip and bundle loose cables, clearing floor hazards. The open U-channel features vertical slots along both long edges, allowing cables to drop in from above and providing anchor points for hook-and-loop straps to lash down the strip. Prints flat on its back without supports.
Dimensions
- Overall footprint: 350 x 100 x 60 mm
- Inner channel capacity: 350 x 64 x 57 mm
- Cable slots: 8 mm wide, 45 mm deep, spaced at 35 mm intervals
- Mounting: 10 countersunk screw holes positioned along the outer flanges
Remix ideas
- Adjust the overall length to match specific power strips or desk spans.
- Widen the side slots to accommodate heavy-gauge monitor cables or display connectors.
- Increase the wall thickness to support heavier power supplies and transformers.
Photos
Technical views
