Smart Tap Layout
Created today
Description
An internal component layout for a smart tap, featuring a universal adaptor, dual O-rings, an IR sensor, and a segmented electronics board with off-board relay.
- Base Enclosure: Open-top shell ready for component mounting.
- Electronics: Main PCB holding the control unit and SPET driver, with a low-profile off-board relay.
- Plumbing: Universal adaptor with dual sealing rings.
Images
More like this
Explore more in Storage & Organization →
Vented Equipment Enclosure Box
What it's for A functional electronics or equipment enclosure featuring an integrated hinged lid, snap latch, and generous ventilation slots. Designed to print easily with the lid flat on the bed alongside the main body. Dimensions Internal capacity: 200 x 200 mm base, 60 mm deep inside Floor: 5 mm thick solid base for structural rigidity Cutouts: A 30 mm circular port on the left wall, and a 12x6 mm rectangular port on the back wall by the hinges. Cooling: Vertical slot vents on the front, left, and back panels. Assembly Once printed, mate the hinge knuckles of the lid to the base. Slide a piece of raw 1.75mm or 3mm filament (or a standard M3 bolt) straight through the hinge line to join them.
150mm Borg Friendship Vault
Zak's Borg Friendship Vault. Three-piece print, designed to drop in and seat clean without fasteners. Overall Footprint: 150mm x 150mm. Total Height (Assembled): 145mm. Internal Payload Bore: 65mm diameter x 105mm depth. Cage Windows: 90mm span, designed to bridge flat across the top without support on well-calibrated machines. The top cap runs a 118mm square boss to locate itself on the outer frame, plus a 64.5mm cylindrical plug to lock into the core and prevent horizontal slop. Print the outer cage and cap in black PETG; run the core in fluorescent PLA. Keep your cooling aggressive for the long window bridges.
Support 25 Clés USB

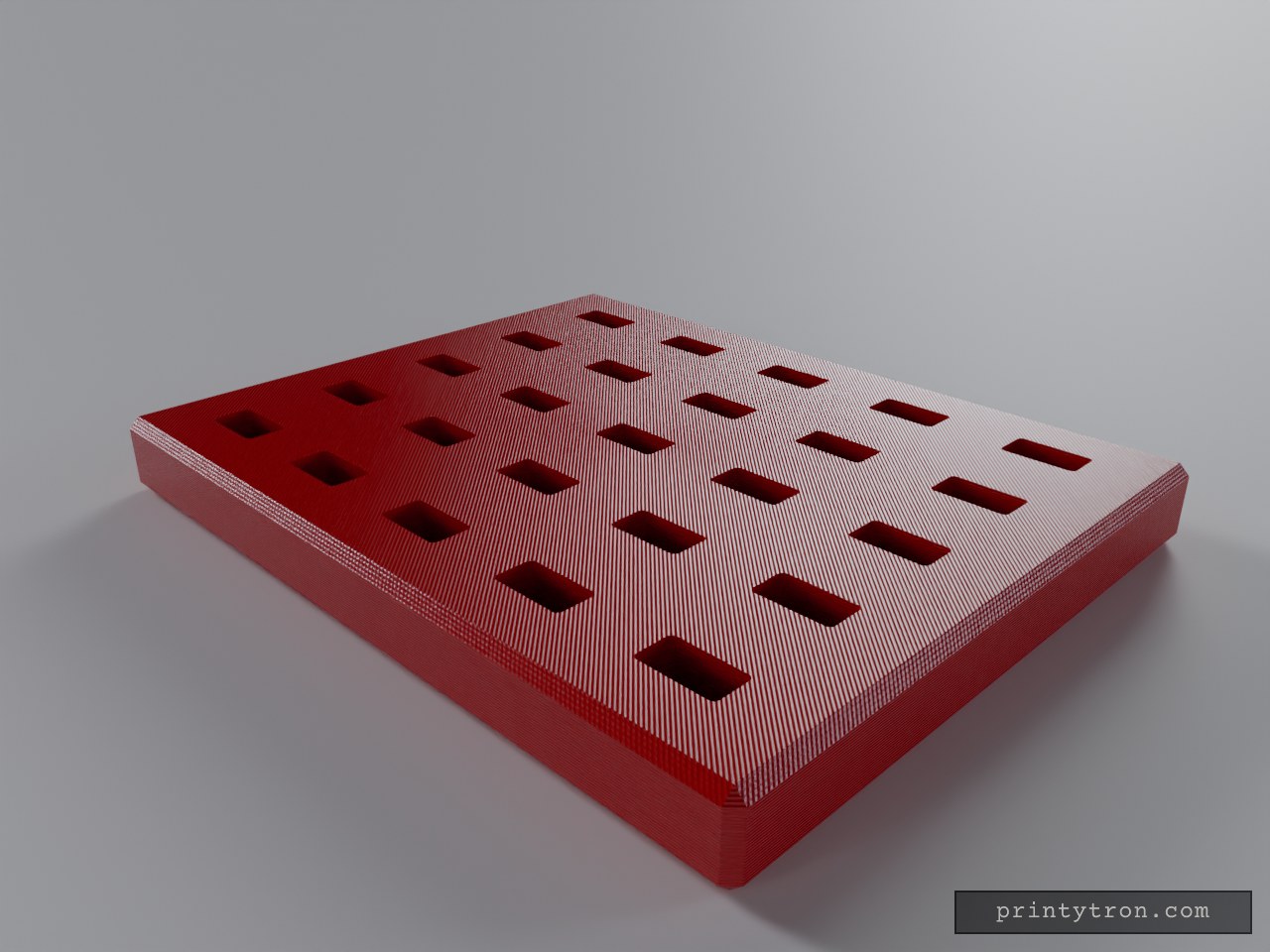

Un support de bureau lourd et stable conçu pour ranger et organiser 25 clés USB en un seul endroit. Variables à ajuster Espacement (28 mm x 23 mm) : Pensé pour accepter la plupart des corps de clés USB sans qu'elles se chevauchent. Peut être resserré si vous n'avez que des clés très fines. Taille des encoches (14 mm x 7,5 mm) : Les fentes offrent un jeu confortable autour d'un connecteur USB-A standard. Profondeur (12 mm) : Laisse les clés bien droites tout en conservant 3 mm de matière pleine au fond du bloc (hauteur totale de 15 mm).
130mm Tubeless Repair Kit Case
A rigid three-piece storage case designed for tubeless tyre repair kits. The base features an inset lip that locks the lid in place, secured by a snap-fit C-clamp latch that mounts to an integrated front axle. Dimensions: 130 mm x 85 mm x 35 mm combined. Wall Thickness: 2.5 mm throughout. Clearances: 0.3 mm on the lid slip-fit, 0.5 mm width clearance for the latch. Print Orientation: All three pieces are laid flat on the bed. No supports required.
Swivel Tooth Stash Box
A fluted cylinder stash box featuring a swing-open lid and a custom dental logo on top. The lid snaps securely into place with a concealed locking pin, making it perfect for holding small desktop items. Swivel Action: Swings smoothly and clicks closed via a small detent on the rim. Fluted Base: Deep vertical cuts around the cylinder provide plenty of grip. Raised Engraving: A custom tooth outline frames "United Smiles Dentistry" cleanly on the lid.
3D Cube IQ Puzzle
A miniature, low-filament version of the classic Soma cube puzzle. The set includes seven distinct pieces that assemble into a solid 3x3x3 cube. The puzzle comes with a small square container to store the pieces or to build the solution directly inside. Print Details Pieces: 7 standard Soma cube fragments Container: 33.5mm outer footprint Supports: None required. All puzzle pieces are oriented to print flat against the build plate. Solvability: Mathematically proven to have exactly 240 valid solutions.
