SumaSlide — Tablero Matemático con Carriles
Created today
Description
SumaSlide convierte la abstracción de las sumas con llevadas en un proceso mecánico y tangible. Diseñado con tres vías de deslizamiento fresadas en la base, permite que la ficha del "1" sobrante viaje físicamente hacia arriba y a la izquierda hasta coronar la columna siguiente.
Esta versión ajusta la cabecera e incorpora un módulo de test para verificar tolerancias de deslizamiento antes de lanzar el tablero completo.
Ajustes y Componentes
- Pieza de prueba: Tramo corto con curva idéntica a la principal, ideal para comprobar que las fichas fluyen sin atascos.
- Cabecera rediseñada: Texto encogido y desplazado al borde superior para garantizar un recorrido limpio y seguro.
- Separación de objetos: Todo está dispuesto en una misma plataforma virtual; divídelo en objetos independientes desde tu fileteador para imprimir por separado.
Images
More like this
Explore more in Workshop & Tools →
SumaSlide — Tablero Matemático con Carriles

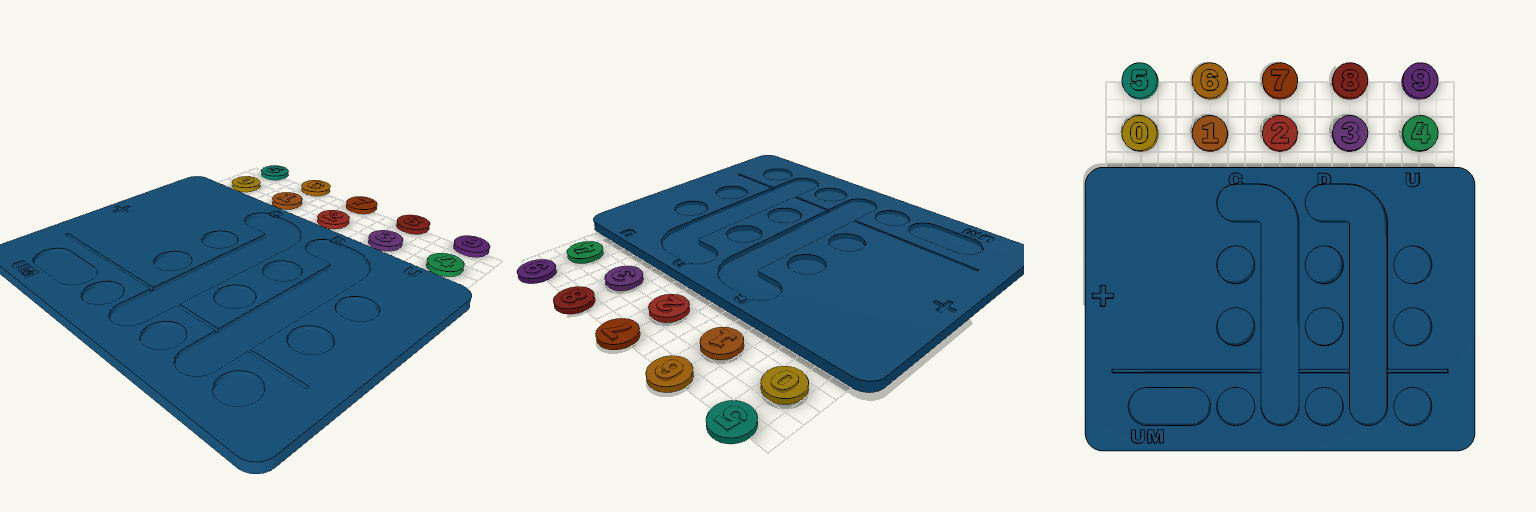

SumaSlide convierte la abstracción de las sumas con llevadas en un proceso mecánico y tangible. Diseñado con tres vías de deslizamiento fresadas en la base, permite que la ficha del "1" sobrante no se levante de la mesa, sino que viaje físicamente hacia arriba y a la izquierda hasta coronar la columna siguiente. La columna de millares incluye un canal de caída directa: la llevada final se desliza hasta su posición de resultado sin interrupciones. Dimensiones y Tolerancias Base Principal: 220 × 160 × 6 mm. Fichas: 20 mm de diámetro y 4 mm de altura total (texto en relieve incluido). Canales de deslizamiento: 21.5 mm de ancho por 2.5 mm de profundidad. La holgura asegura que las fichas deslicen libremente sin volcarse. Impresión Todas las piezas están diseñadas para imprimirse apoyadas en plano directamente sobre la cama, sin necesidad de soportes. Imprime múltiples copias de las fichas para resolver operaciones que requieran repetir números.
