Uchwyt latarki Dragon HT05
Created today
Description

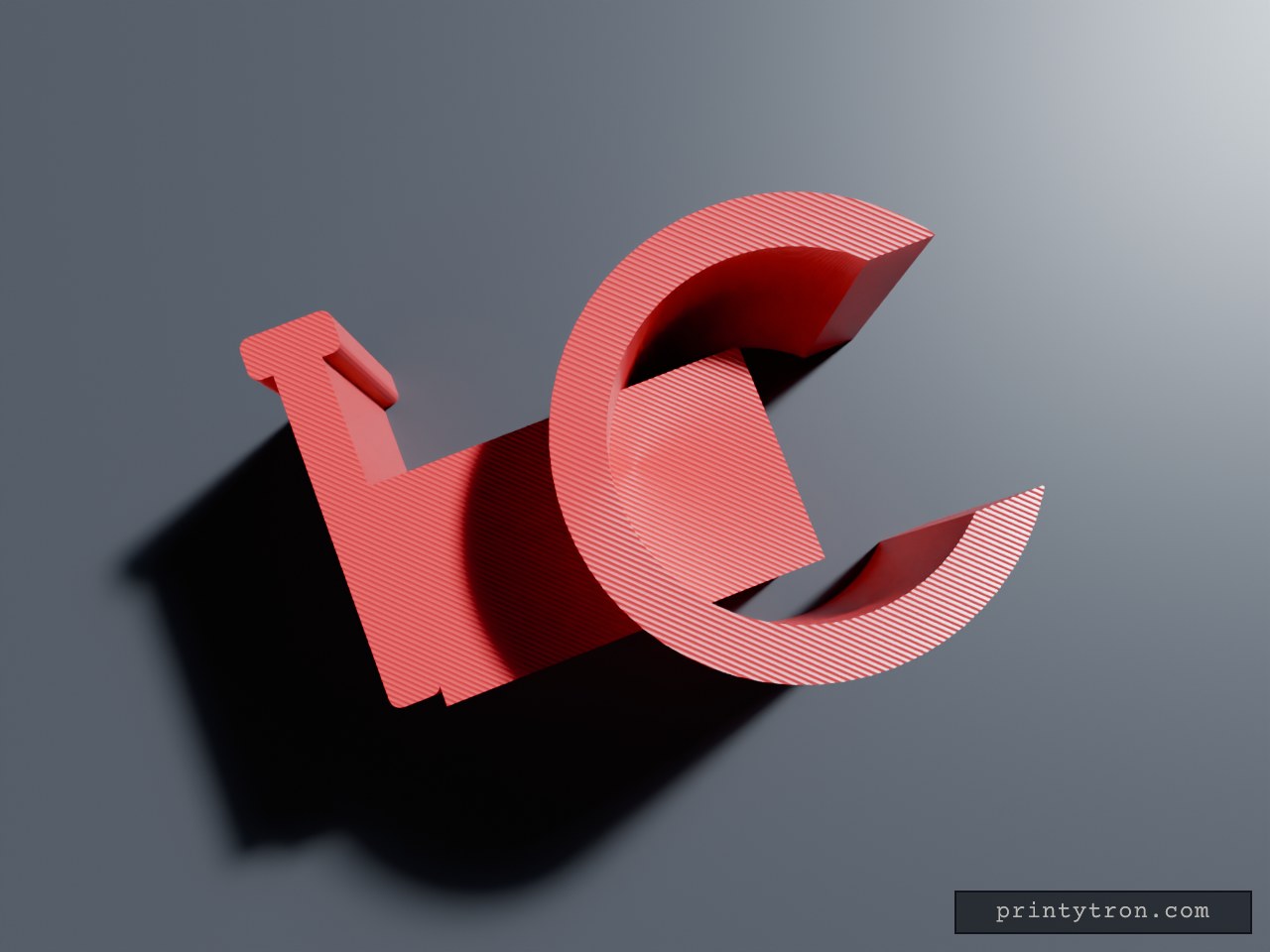

Wsuwany boczny uchwyt do hełmu strażackiego Dragon HT05, przystosowany do latarek typu Iskra LED. Zaprojektowany jako jeden zwarty element.
Zaczepy do modyfikacji
- Obejma latarki: Otwór ma 30 mm, a szerokość wcięcia wynosi 72% tej wartości (dobry zatrzask dla materiałów takich jak PETG).
- Szyna montażowa: Standardowo profil 25 mm na 4.5 mm, z drobną sferyczną wypustką do wyczuwalnego zablokowania w slocie hełmu.
- Orientacja: Model w całości zorientowany jest tak, by leżeć płasko na stole – nie używaj tu podpór, wydrukuje się gładko w jednym przejściu osi Z.
