マイコンケース②
Created today
Description
A two-part enclosure for a 47 × 57 mm STM32F103 board, with a screw-down lid, external mounting flanges and a cable opening at the connector end.
The base has 2.5 mm walls, four board bosses at 37 × 50 mm spacing holding the board 5 mm above the floor, and four corner posts for the lid screws. The lid has a locating lip and four clearance holes. Triangular gussets reinforce the flange-to-wall joints and the wall-to-floor joints, and the internal corners are rounded.
- Total height with lid: 35 mm
- Connector end extended 20 mm (+Y), with an adjustable cable opening
- Lid screws: M2.5 self-tapping, 2.2 mm pilot holes in the corner posts
- Adjustable: hole spacing and offset, boss height and hole size, flange hole size and positions, cable opening, extensions
- Board hole spacing is approximate and should be checked against the real board
Images
More like this
Explore more in Desk & Tech →
Fidget Spinner Planetario Ø70 mm
Fidget spinner a ingranaggi planetari stampabile in un solo pezzo (print-in-place), diametro esterno 70 mm, con ingranaggio solare centrale, 5 satelliti e anello esterno dentato internamente. L'anello è alleggerito da 10 fori passanti e non ha coperchi, così gli ingranaggi restano visibili. Diametro esterno: 70 mm, spessore 8 mm Modulo 1,5; solare 15 denti, satelliti 10 denti, corona 35 denti Denti elicoidali a spina di pesce (25°) che trattengono i satelliti senza assi Gioco sui denti: 0,25 mm Fori centrali Ø7 mm (solare) e Ø5 mm (satelliti) per alleggerire Stampa piatta, senza supporti; PLA o PETG
バルブ、サーボケース（仮）
A small bunker of a box: thick walls braced by tapered buttress ribs, a ribbed underside, and a flat screw-down lid that lifts straight off the top. Built as a housing for a servo-driven rotary valve, with a completely empty interior. Design notes Size: 60 × 100 × 40 mm overall, including the lid and all ribs. Ribs: tapered gusset-style ribs on all four walls, plus underside ribs the body stands on when printing. Corners: rounded, with four blended screw bosses that double as corner reinforcement. Lid: 4 mm, with countersunk M3 clearance holes into pilot holes in the bosses. Hose holes: 6 mm, on one shared vertical axis; the Y and X positions are editable parameters (Y defaults to 20 mm off centre). Floor: flat and clear of obstructions.

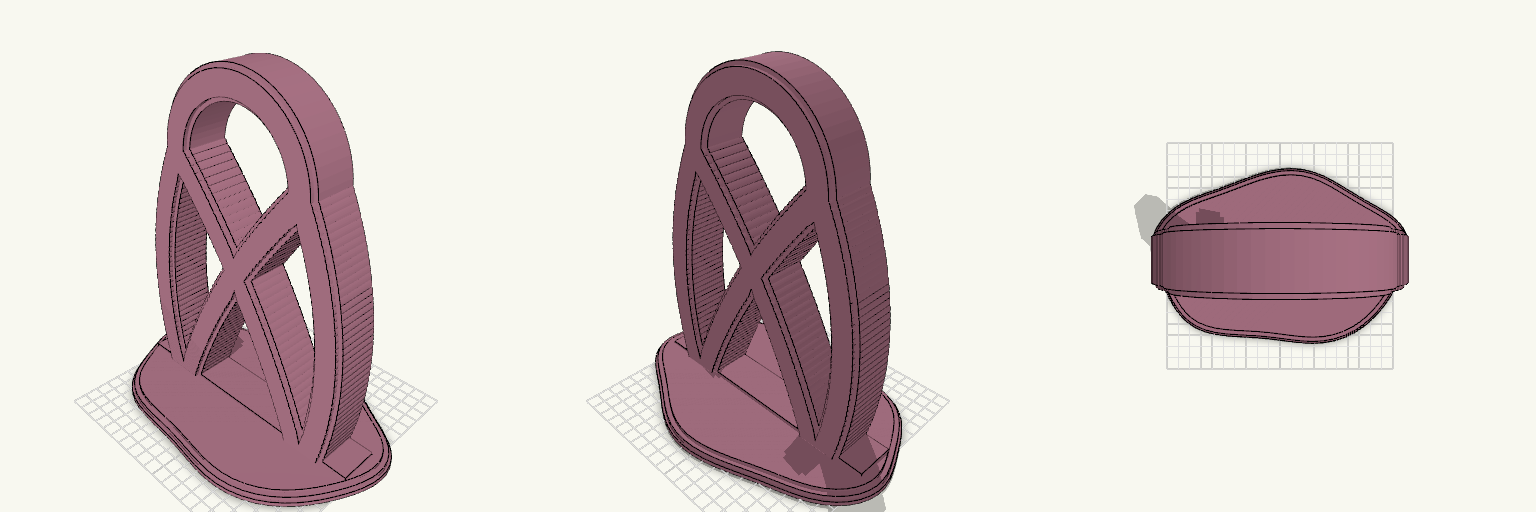

Organischer Kopfhörerständer in Rosa
