Veil — Air Freshener Front Plate
Created today
Description
Veil is a plain, flat front cover for an automatic air freshener dispenser. It is a clean blank with rounded corners, ready to be used as-is or modified with cutouts for a nozzle, sensor or window.
Dimensions
- Height: 230 mm
- Width: 76 mm
- Thickness: 1 mm
- Corner radius: 8 mm
Print notes
- Print flat on the bed, no supports needed.
- At 1 mm thick, a wide brim or a slow first layer helps prevent warping.
Photos
Technical views
More like this
Explore more in Home & Fixtures →
Toolbox Front Latch Replacement C-Clip
Replacement front latch for a STUFF Basic 20 inch toolbox, for when the original hinge loop or hook has snapped. One solid C-profile part, 61 mm wide, with an open clip at the bottom that snaps onto the box pin and a filleted L hook at the top. Key numbers Overall: 61 mm wide, 65 mm tall, 18 mm deep Wall: 5 mm throughout Clip: 5.3 mm bore, 15.3 mm outer diameter, 5 mm gap Hook: 13 mm forward, 5 mm inside fillet, 2 mm outside fillet, 2.5 mm rounded tip Printing Material: PETG Supports: none Orientation: lay it on its 61 mm side so the C-profile faces up
Advent Calendar Drawer With Grip
A single replacement drawer for an Advent calendar: open-top box, 41.5 × 23.5 × 44 mm, 1.5 mm walls and floor, with the number engraved on the front above a small square grip. Remix hooks Grip size: 8 × 5 mm face, 4 mm projection (5 mm deep body, 1 mm embedded). Make it wider for easier pulling. Grip rounding: 0.8 mm edge rounding. Raise it for a softer look, drop it for a sharper square. Number: 8 mm Roboto, engraved 1 mm deep near the top. Change the digit for other drawers. Fit: trim 0.2 mm off width and height if it binds in the frame. Pairs with: the other numbered drawers, since the front footprint is unchanged.
Wide Hook With Tall Front Lip
A small wall-side hook, 20 mm wide and 15 mm deep, with a 20 mm back plate, a flat 3 mm arm and a 50 mm upturned front lip. Remix hooks Width (20 mm): the one value shared by the plate, arm and lip. Widen it for heavier loads or narrow it for tight spots. Lip height (50 mm): lower it to around 10–15 mm for a simple catch, or keep it tall to hold flat items upright. Back plate height (20 mm): raise it to leave room for a screw hole or two. Arm thickness (3 mm): thicken it if the hook will carry weight. Pairs well with countersunk screw holes in the back plate or double-sided mounting tape.
Wall-Mounted Bedside Floating Shelf
What it's for A sleek floating shelf for beside the bed at about head height, sized for an ornament or a small potted plant. A back plate with four countersunk screw holes fixes it to the wall, and two triangular brackets support the top. The design is symmetrical, so printing two gives a matching pair for each side of the bed. Dimensions Shelf top: 200 × 120 × 12 mm, rounded edges Back plate: 170 mm wide, 6 mm thick, 70 mm tall including the shelf Screw holes: four, 4.5 mm shank with 9 mm countersink, set 80 mm apart, the upper pair just below the shelf Brackets: two, 6 mm thick, at X ±70 mm Print notes Prints with the top face on the bed, with no supports needed. Use wall plugs suited to your wall type and countersunk screws with heads up to 9 mm. Remix ideas Narrow the shelf for tighter spaces. Add a small front lip to keep ornaments from sliding off. Add a cable notch for a bedside lamp.
Bote de basura innovador
Bote de basura con tres compartimentos para orgánicos, reciclables y basura general. Evita que todo termine mezclado en una sola bolsa y que haya que tocar la tapa con las manos sucias. Cada compartimento tiene su propia abertura con trampilla de color. Dos sensores al frente detectan a la persona que se acerca, una pantalla indica el nivel de llenado, un panel solar inclinado en la parte trasera alimenta la electrónica y cuatro ruedas permiten moverlo. Datos clave Diámetro del cuerpo: 240 mm; altura total sin panel: unos 346 mm Tres sectores de 120° separados por divisiones de 3 mm Aberturas de 76 mm de diámetro, una por compartimento Ruedas de 36 mm en cuatro soportes Impresión por piezas: cuerpo, tapa, chasis, ruedas y panel; paredes de 3 mm, sin soportes en el cuerpo La electrónica (sensores, pantalla, motores) no está incluida: el modelo solo aporta alojamientos y forma

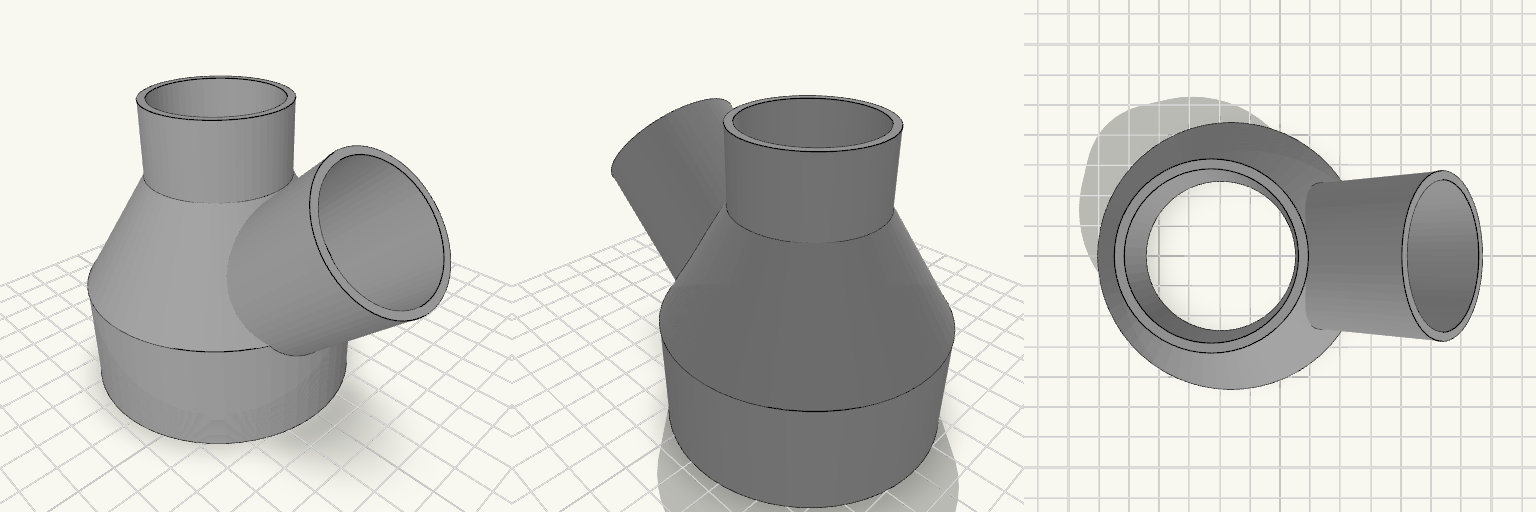

Y-Rohrstück 75 auf 39 mm mit Steckende
