Vented Acoustic Basket
Created today
Description
A skeletal mounting chassis designed to hold a custom 50mm driver assembly. The aggressive cutouts strip away unnecessary mass, leaving four sweeping struts that provide rigid support while entirely opening the rear wave to prevent acoustic reflections. The base houses a precision-cut cavity tailored to scavenged PC fan magnets, complete with a vented central pole piece.
Acoustic Details
- Rear Ventilation: 50-degree windows cut low into the voice coil gap ensure maximum airflow and heat dissipation.
- Magnet Housing: A 28.5mm OD x 5mm bottom slot sized specifically for standard 120mm fan ring magnets.
- Mounting Interface: 50mm outer diameter upper ring with a 2mm wall thickness for standard cone attachment.
Images
More like this
Explore more in Automotive, RC & Hobby →

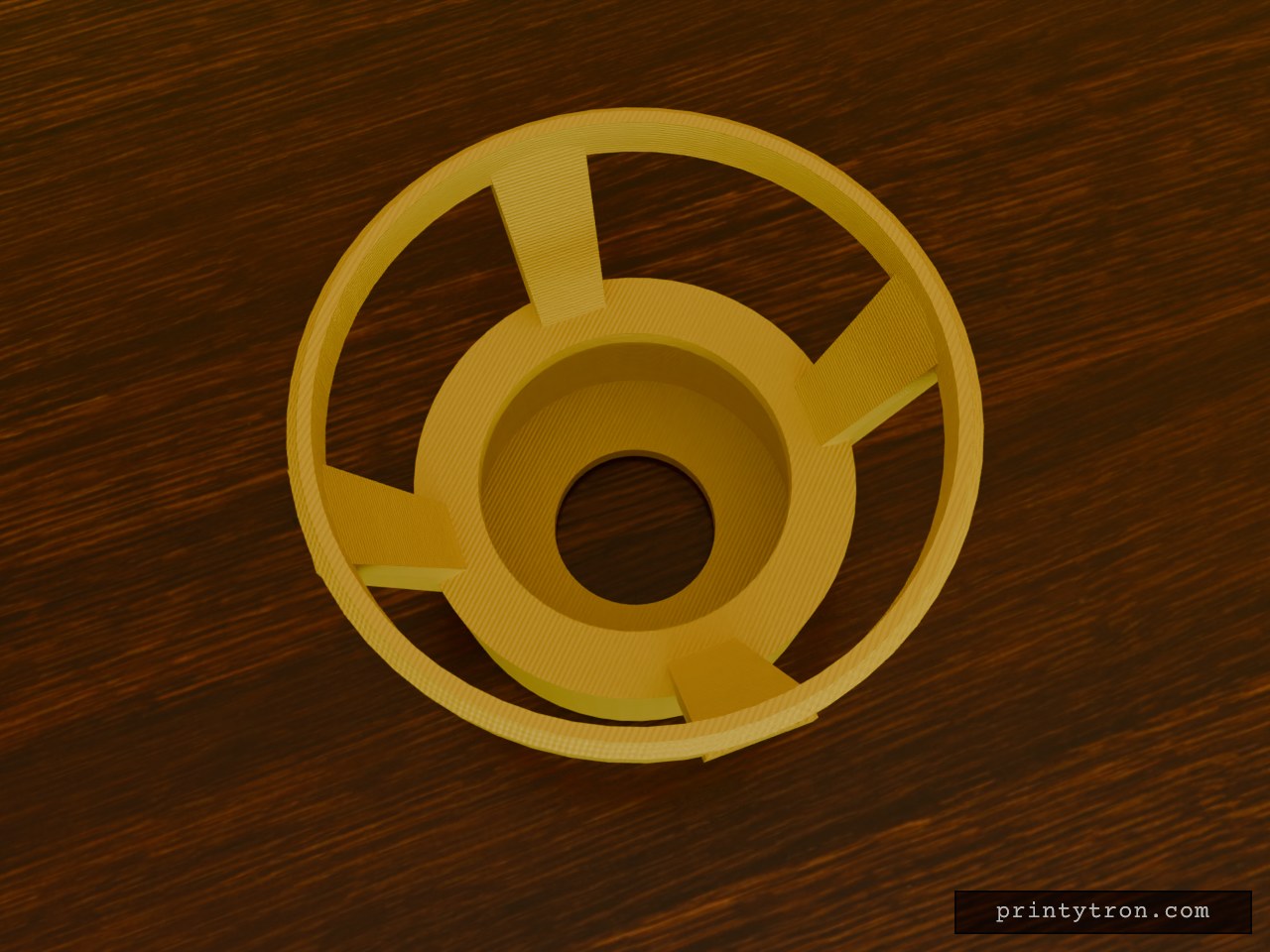

Vented 50mm Speaker Basket
A custom 3D-printable 50mm speaker basket designed for custom driver assemblies. It provides a rigid framework linking a standard 50mm top surround ring to a tailored bottom magnet housing. This version features a completely hollow core: Pass-Through Bottom: The central pole has been deleted and the floor bored out to 25mm, allowing full clearance for a voice coil and T-yoke assembly. Magnet Seat: Leaves a 3mm resting lip for a standard 31mm ring magnet. Acoustic Venting: Four structural struts anchor the assembly while maximizing rear airflow.
Double Seatbelt Buckle Holder, Backseat
Two seatbelt buckles flop around and fall into the seat gap, so this holder stands both upright side by side in the backseat of a Toyota Sienta. Each 33 x 53 mm pocket goes straight through the base, so the buckle and webbing pass through with nothing blocking the bottom. Pocket size: 33 x 53 mm each, sized for a 31 x 51 mm buckle Sleeve height: 28 mm above a 6 mm base Overall footprint: 130 x 64 mm Centre screw hole: 4.5 mm Print flat on the base, no supports needed
Retro TV Enclosure for No-Solder RP2040 Builds
A two-piece retro TV shell designed to house a no-solder RP2040 video player. The clamshell locks together with a built-in snap fit, offering exactly 150×80×50mm of internal space. Both halves print flat on the bed without supports. Front Bezel: Features a sloped CRT-style screen cutout with an internal ledge for a 2.8" display, twin 7mm dial holes, and integrated speaker vents. Back Shell: Includes a bottom-edge USB-C cutout and classic rear cooling vents. Snap Fit: A 4mm friction lip with interlocking bumps holds the enclosure securely together.

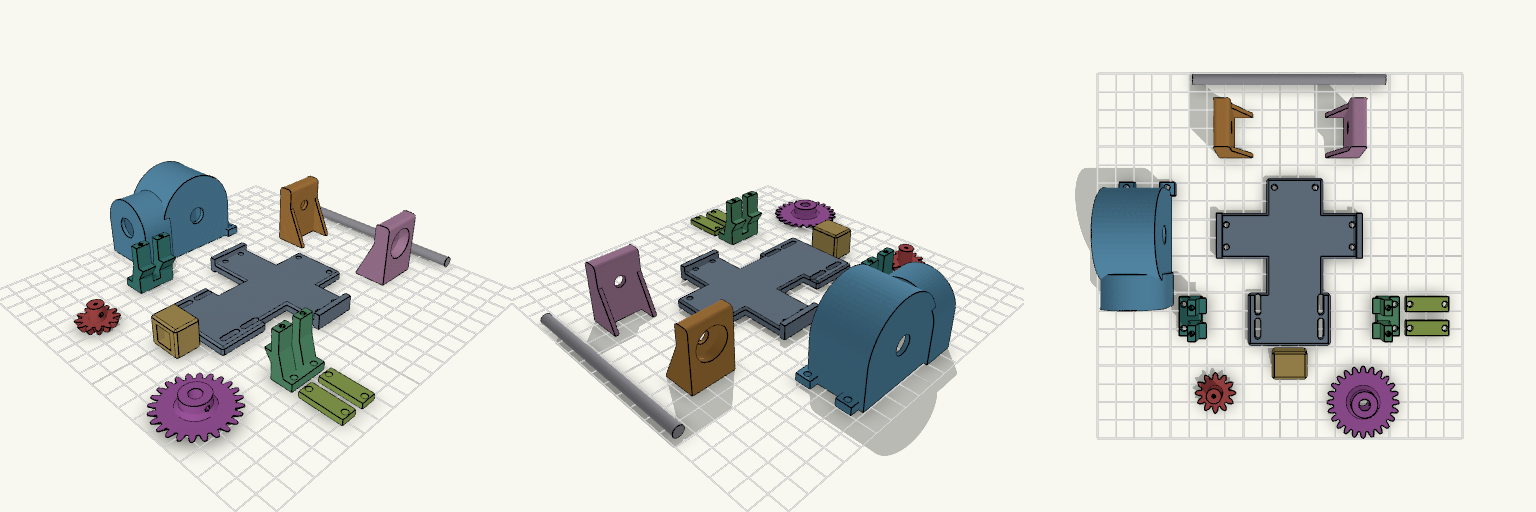

RC Car Bevel Gear Rear Drive
