Vented Power Supply Enclosure
Created today
Description
What it's for
A custom-sized, two-part vented enclosure designed to hold a 111x79x36mm power supply. It features side-mounted cooling vents, a solid base, and wire-routing holes positioned near the bottom of the narrow end.
Dimensions
- External size: 99 x 131 x 42 mm (main box), plus the flush-fitting lid.
- Internal space: The central cavity between the corner screw pillars provides a clear 83 x 115 mm footprint, allowing a 2 mm clearance gap on all sides for the 111 x 79 mm power supply unit.
- Wire routing: Two 7mm diameter holes on the narrow end for cable pass-through.
Assembly
The lid secures into the four corner pillars using standard M3 screws. The interior features a small alignment lip on the lid to ensure it seats squarely against the posts.
Images
More like this
Explore more in Storage & Organization →

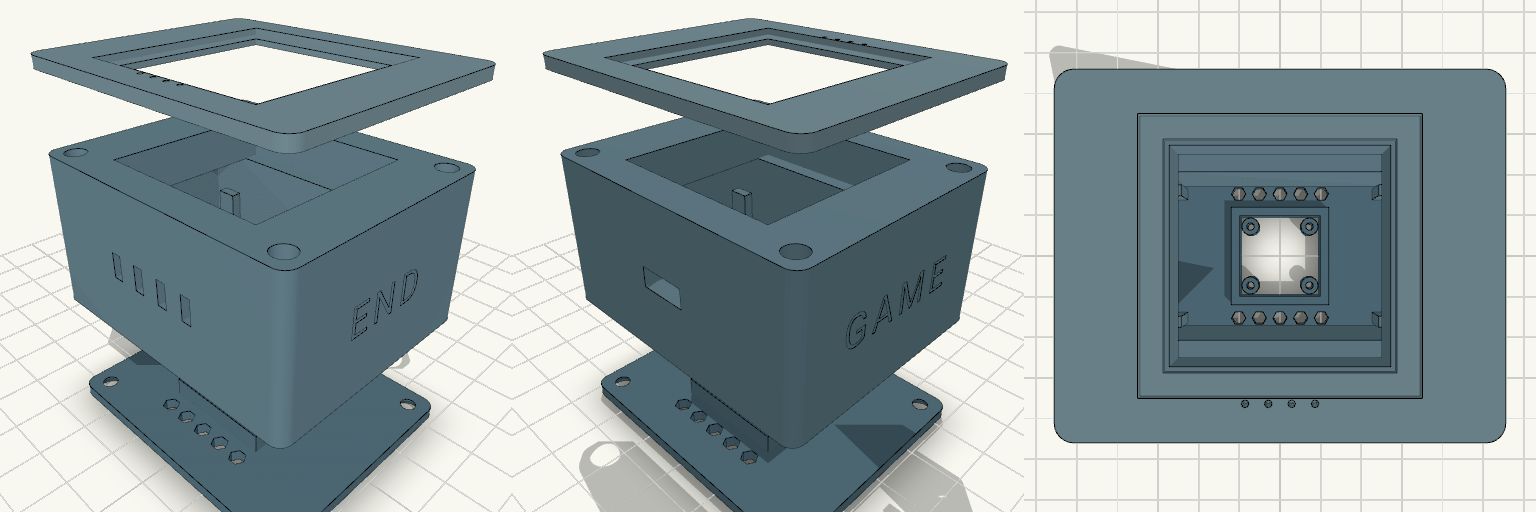

Endgame Robotics Enclosure
