Wall Shelf, 20 cm Glue-On
Created today
Description

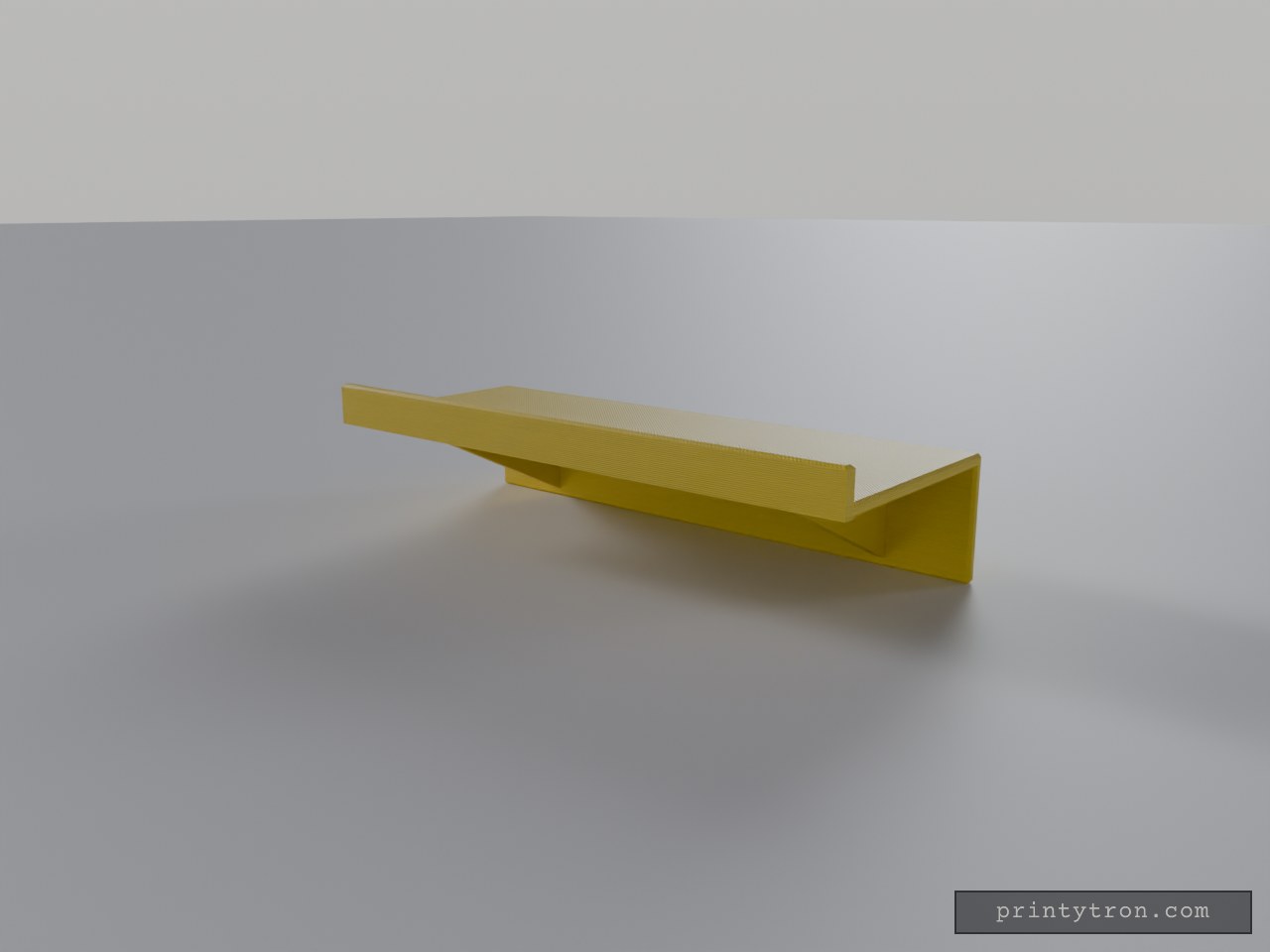

A small wall shelf that sits flat against the wall and glues on, with no drilling and no screws that miss the stud. The tall back plate gives the adhesive a big flat face, and two triangular gussets stop the front edge from sagging or peeling off.
Key numbers
- Shelf top: 200 mm long x 80 mm deep x 4 mm thick
- Back plate: 200 x 40 mm, 4 mm thick, flat on the wall side
- Two gussets, 4 mm thick, each 34 mm tall
- Print: shelf upright on its back plate or flat on the top, no supports needed with the plate down; PETG or PLA, 3+ perimeters
- Glue: construction adhesive or mounting tape on the back plate face
Photos
Technical views
