1/2" Pitch 24T Solid Blank Sprocket
Created today
Description
A solid 24-tooth bicycle sprocket designed for standard 1/2" pitch, 3/32" wide chains.
Fitment
- Pitch: 1/2" (12.7 mm)
- Chain Width Compatibility: 3/32" (Teeth are chamfered down to ~2.2 mm at the edges to clear the narrow rollers)
- Overall Plate Thickness: 3/16" (4.76 mm) for rigidity
- Center Bore: Completely solid blank (0 mm) — designed to be custom drilled or machined to fit your specific motor or prop adapter.
- Overall Diameter: ~104.9 mm
The solid center provides maximum material for custom mounting solutions. Print with a high infill and robust walls if this will see significant torque.
Images
More like this
Explore more in Automotive, RC & Hobby →
RC Car Bevel Gear Rear Drive
A rear-axle drive for an RC car where the motor shaft has to turn 90° into a cross-car axle without the gears skipping or the motor shifting. This set uses a 12-tooth pinion and 24-tooth crown gear (2:1) on a 103.9 mm × 6 mm axle, with an open motor cradle instead of a closed box. Key numbers Gears: module 1.5, 20° pressure angle, 4 mm face width, 90° shaft angle Pitch cone angles: 26.57° (pinion) and 63.43° (crown); cone distance about 20.1 mm Pinion bore 2.1 mm, crown bore 6.2 mm, both with M3 set-screw holes in the hubs Axle supports: 6.4 mm through-hole plus a 17.3 mm seat for 606 bearings (6×17×6) Base: 84 × 92 × 5 mm, M3 holes (3.4 mm clearance); cradle slots allow forward and back adjustment Motor cradle parameters at the top of the file: mw, mh, wall, saddlel, saddley. Measure the real motor and edit them Cover is open at the bottom, with two M3 ears at the rear Printing Print gears with the hub facing up or down on the bed; PETG or nylon preferred Cover prints open-side up without supports Axle is a separate 6 mm steel rod; M3 screws hold supports, cradle, straps and cover
Double Seatbelt Buckle Holder, Backseat
Two seatbelt buckles flop around and fall into the seat gap, so this holder stands both upright side by side in the backseat of a Toyota Sienta. Each 33 x 53 mm pocket goes straight through the base, so the buckle and webbing pass through with nothing blocking the bottom. Pocket size: 33 x 53 mm each, sized for a 31 x 51 mm buckle Sleeve height: 28 mm above a 6 mm base Overall footprint: 130 x 64 mm Centre screw hole: 4.5 mm Print flat on the base, no supports needed
Retro TV Enclosure for No-Solder RP2040 Builds
A two-piece retro TV shell designed to house a no-solder RP2040 video player. The clamshell locks together with a built-in snap fit, offering exactly 150×80×50mm of internal space. Both halves print flat on the bed without supports. Front Bezel: Features a sloped CRT-style screen cutout with an internal ledge for a 2.8" display, twin 7mm dial holes, and integrated speaker vents. Back Shell: Includes a bottom-edge USB-C cutout and classic rear cooling vents. Snap Fit: A 4mm friction lip with interlocking bumps holds the enclosure securely together.
Space Command Console Toy
The keyboard belongs to you. The TV remote belongs to you. The oven dials are strictly off limits. But they still want to press buttons, and everything they reach for has a consequence. This console solves that. It’s a chunky, slanted control panel built to take a hammering. The throttle is a captive slider that prints fully in place—no assembly, just crack it loose and it glides. The giant red and green buttons sit on thin printed hinges, giving them enough flex to feel like a real press without needing actual springs or hardware. The dials and radar screen are solid topographic features that add tactile feedback without weak points. Printing Notes Dimensions: The base fits squarely on a 180x130mm footprint. Print-in-Place Clearance: The slider runs in an internal T-slot with a generous 0.5mm clearance on all sides, making it easy to free up on almost any FDM machine. Orientation: Designed to sit entirely flat on the build plate. The 13-degree slope of the panel is built into the geometry, so the internal bridges and tracks print parallel to the bed. Settings: Standard 0.2mm layer heights work beautifully. Three perimeters recommended to keep the compliant button hinges tough.

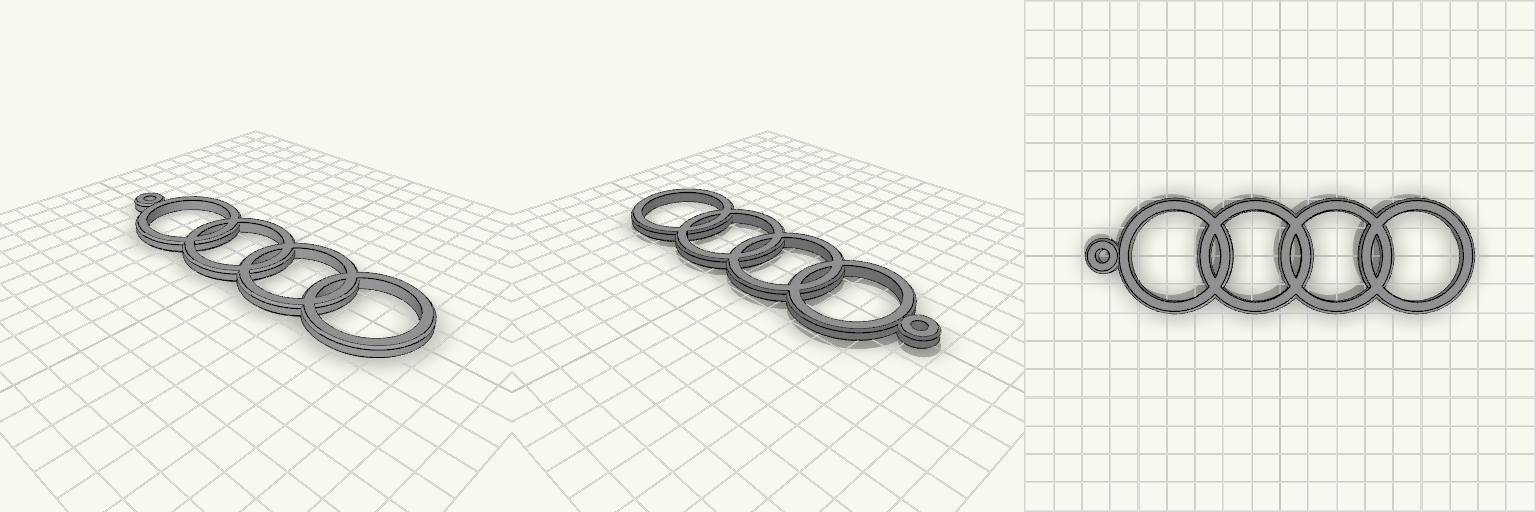

Aura — Automotive Ring Emblem
A flat-backed, print-ready representation of the classic four-ring automotive logo. Designed to sit flush on the build plate for an easy print. Dimensions Overall Width: 124 mm Ring Outer Diameter: 40 mm Thickness: 4 mm Print Notes Prints directly on the bed with no supports required. The intersection points are fully merged to ensure the entire emblem prints as a single solid, structurally sound piece.

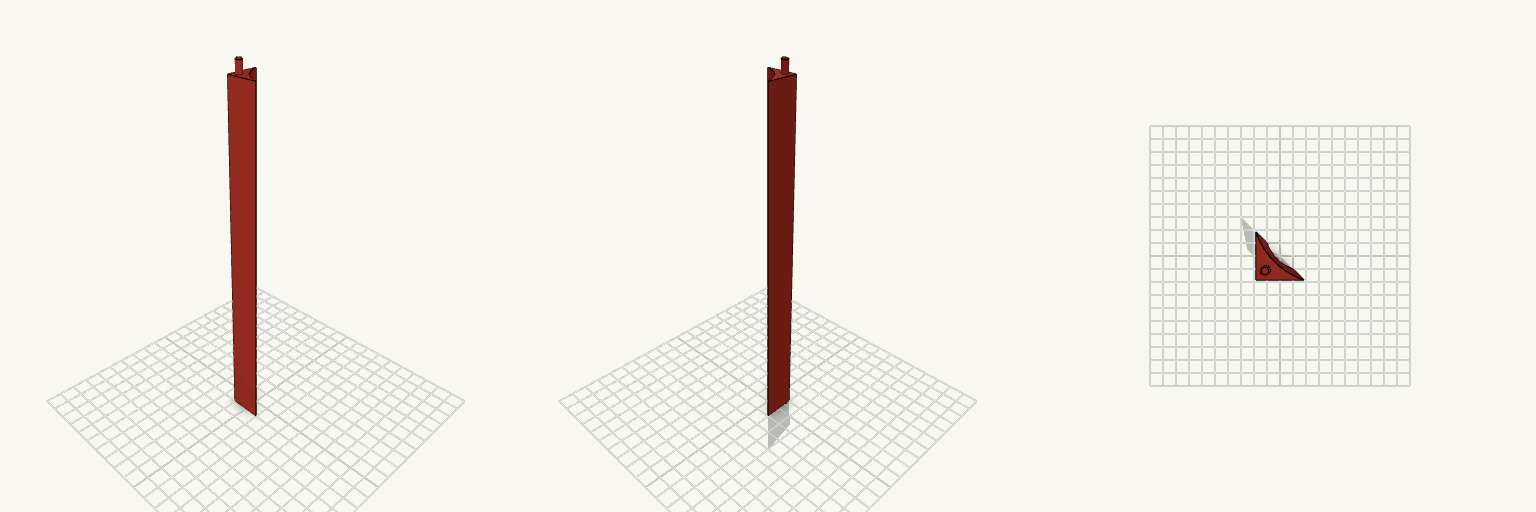

Deflettore Angolare Modulare 218mm
