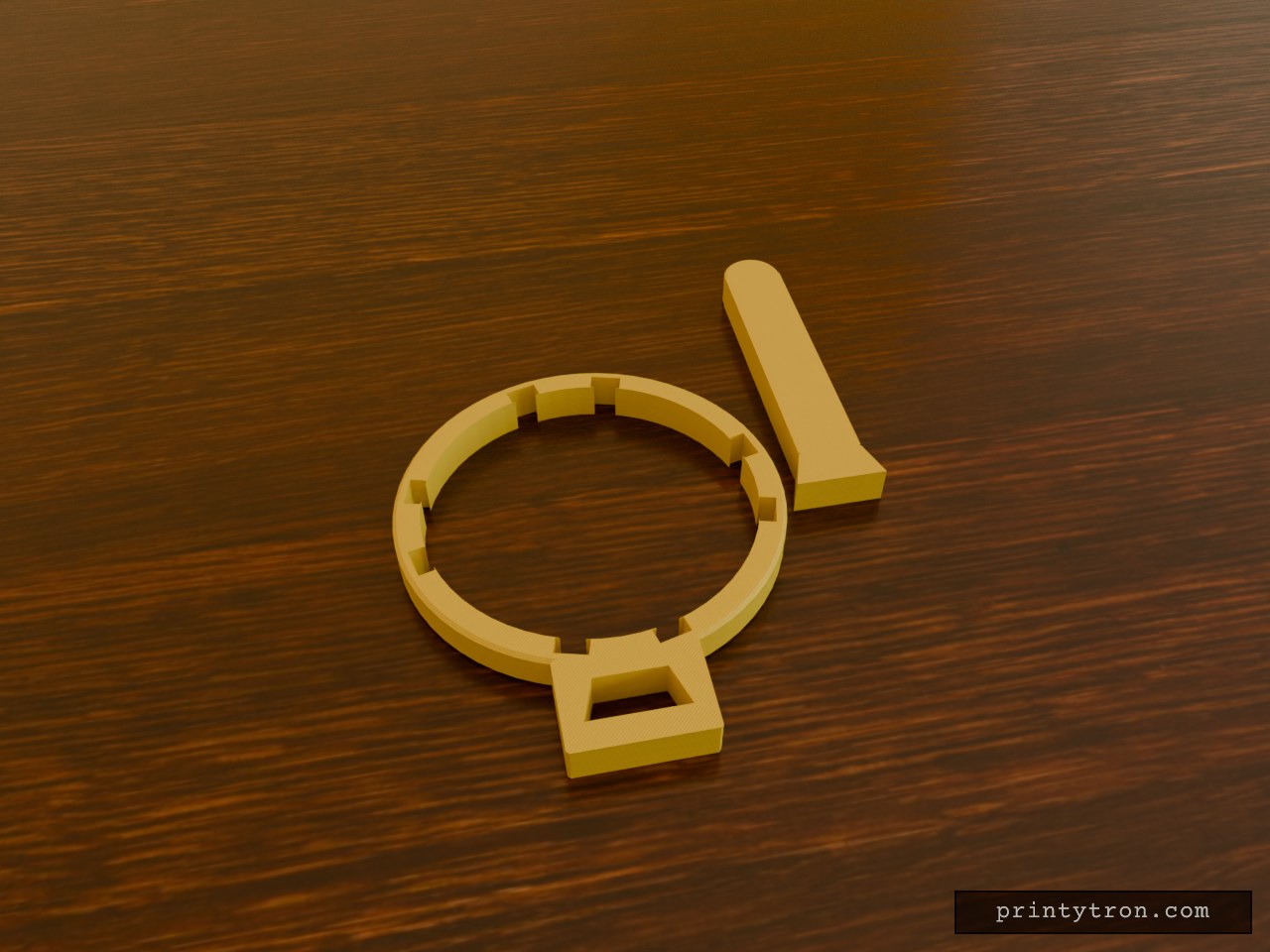

125mm 8-Rib Filter Wrench
Created today
Description
Two-piece water filter wrench sized for 125mm (4.5-inch) housings, featuring an 8-rib engagement ring.
- Joint: Heavy Z-axis sliding dovetail
- Fit: 125mm inner diameter with 8 notches
- Print Volume: Parts separated to fit 180x180mm print beds
Photos
Technical views
