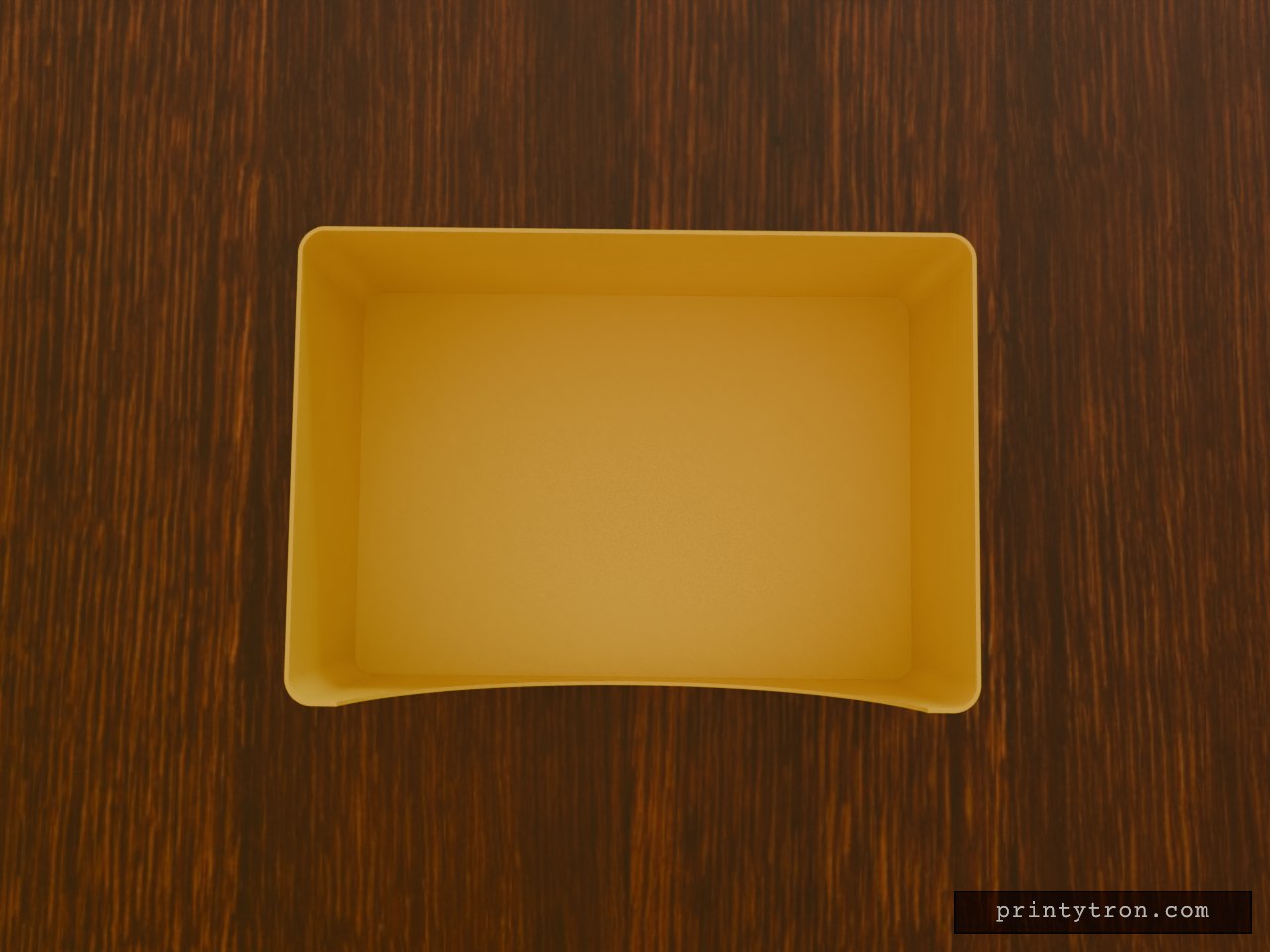

500x350mm Footprint | Small Mammal Pan
Created today
Description
A wide-entry litter pan scaled for small mammals. Fits a standard 500x350mm floor space, replacing the tall cat-style entry with a broad cutaway for easier clearance.
Fitment
- Footprint: 500x350mm
- Entry Width: 440mm
- Step-in Height (Lip): 40mm
- Total Wall Height: 200mm
Photos
Technical views
More like this
Explore more in Automotive, RC & Hobby →

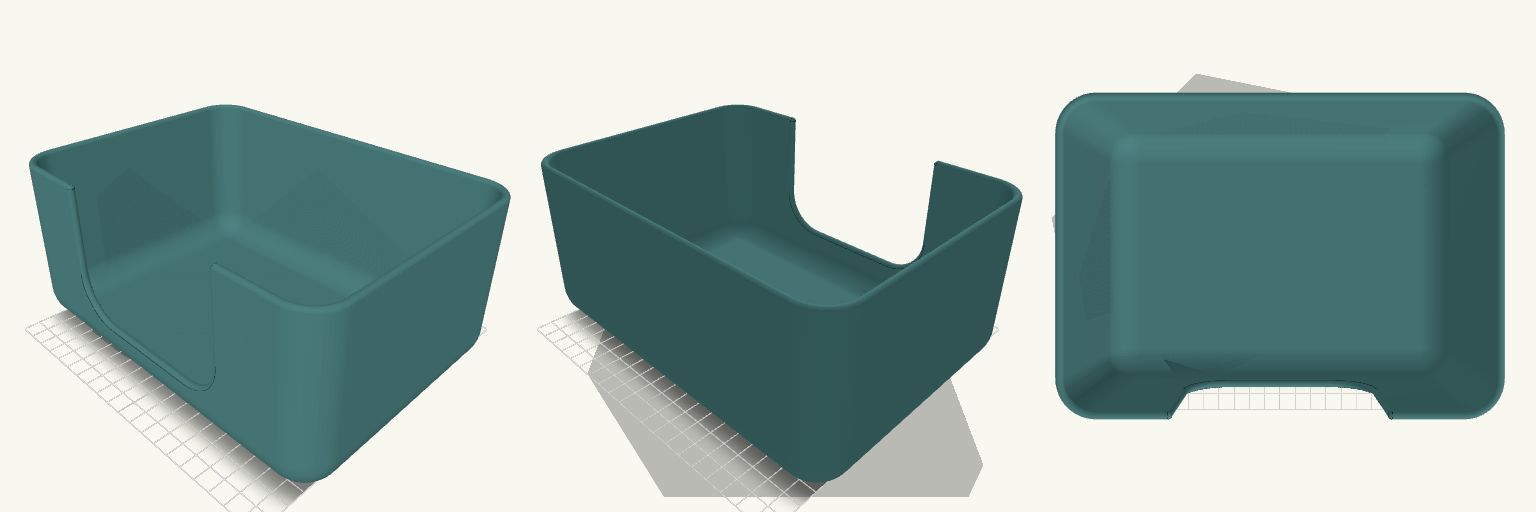

High-Walled Mammal Litter Box
A heavy-duty, high-walled litter enclosure designed for small mammals. The solid base limits scattered bedding, while the dropped, U-shaped front entry provides easy access. The entire perimeter—both the upper walls and the entryway lip—is finished with a full-radius bead to eliminate sharp edges and ensure comfort. Dimensions: 220mm x 160mm x 100mm Entry Height: 25mm from the floor Wall Thickness: 4mm solid perimeter Edge Treatment: 20mm internal radiused corners, full round top rim
Double Seatbelt Buckle Holder, Backseat
Two seatbelt buckles flop around and fall into the seat gap, so this holder stands both upright side by side in the backseat of a Toyota Sienta. Each 33 x 53 mm pocket goes straight through the base, so the buckle and webbing pass through with nothing blocking the bottom. Pocket size: 33 x 53 mm each, sized for a 31 x 51 mm buckle Sleeve height: 28 mm above a 6 mm base Overall footprint: 130 x 64 mm Centre screw hole: 4.5 mm Print flat on the base, no supports needed
Retro TV Enclosure for No-Solder RP2040 Builds
A two-piece retro TV shell designed to house a no-solder RP2040 video player. The clamshell locks together with a built-in snap fit, offering exactly 150×80×50mm of internal space. Both halves print flat on the bed without supports. Front Bezel: Features a sloped CRT-style screen cutout with an internal ledge for a 2.8" display, twin 7mm dial holes, and integrated speaker vents. Back Shell: Includes a bottom-edge USB-C cutout and classic rear cooling vents. Snap Fit: A 4mm friction lip with interlocking bumps holds the enclosure securely together.
Space Command Console Toy
The keyboard belongs to you. The TV remote belongs to you. The oven dials are strictly off limits. But they still want to press buttons, and everything they reach for has a consequence. This console solves that. It’s a chunky, slanted control panel built to take a hammering. The throttle is a captive slider that prints fully in place—no assembly, just crack it loose and it glides. The giant red and green buttons sit on thin printed hinges, giving them enough flex to feel like a real press without needing actual springs or hardware. The dials and radar screen are solid topographic features that add tactile feedback without weak points. Printing Notes Dimensions: The base fits squarely on a 180x130mm footprint. Print-in-Place Clearance: The slider runs in an internal T-slot with a generous 0.5mm clearance on all sides, making it easy to free up on almost any FDM machine. Orientation: Designed to sit entirely flat on the build plate. The 13-degree slope of the panel is built into the geometry, so the internal bridges and tracks print parallel to the bed. Settings: Standard 0.2mm layer heights work beautifully. Three perimeters recommended to keep the compliant button hinges tough.

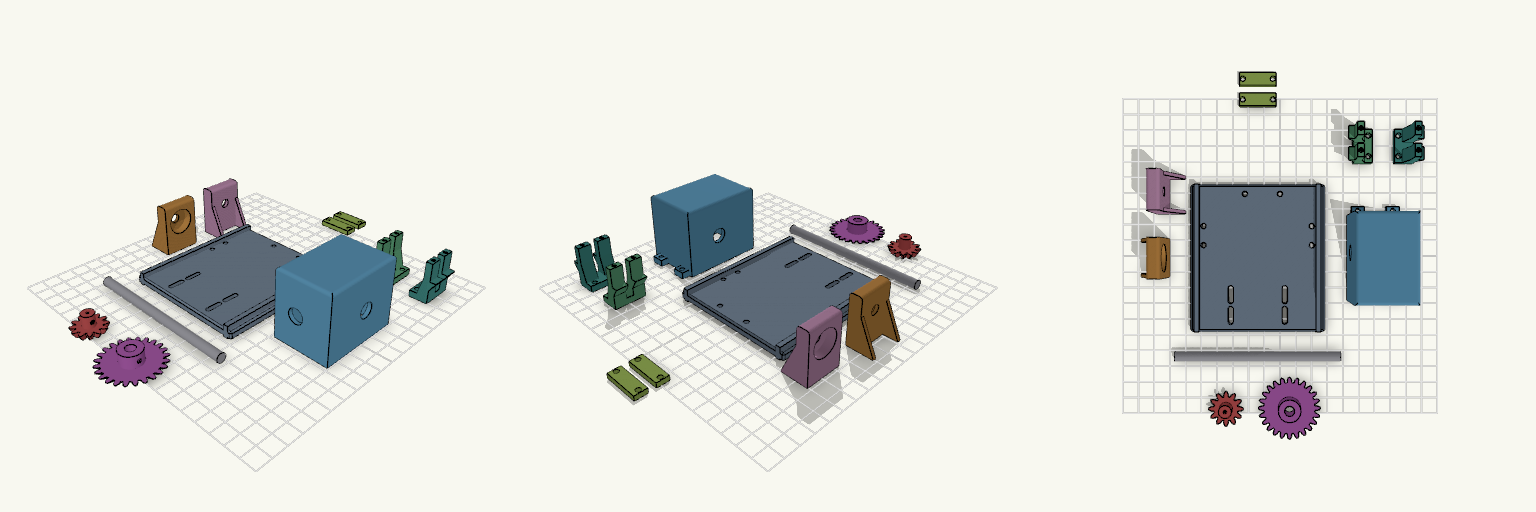

RC Car Bevel Gear Rear Drive
