60mm Arc Reactor LED Ring
Created today
Description
Circular mounting ring for standard 5mm LEDs. Sized with a 60mm outer diameter and a 48mm pitch circle. Features a continuous recessed channel on the rear face to simplify wire routing and soldering, plus a stepped front lip to seat a custom diffuser plate.
- Outer Diameter: 60.0 mm
- Inner Diameter: 36.0 mm
- Thickness: 5.0 mm
- LED Fitment: 5x 5.2mm bores (72° spacing)
- Rear Recesses: 6.2mm flange countersinks with an 8mm wide wire track
- Front Groove: 1.0 mm deep, accommodates a 56mm OD diffuser
Images
More like this
Explore more in Automotive, RC & Hobby →
60mm RV Outlet Weather Cover
A heavy-duty, print-in-place weather cover designed for RV and camper electrical outlets. This cover features a robust 60x60mm footprint with an uninterrupted 40x40mm rear passthrough, replacing standard multi-hole mounts with a single unified channel. Specifications Overall Dimensions: 60 x 60 x 20 mm Front Chamber: 48 x 48 mm (17 mm depth) Rear Passthrough: 40 x 40 mm (centered) Hinge Mechanism: Integrated 2.5 mm axis knuckle hinge (100° range) Weather Resistance: Geometry-based labyrinth seal, bottom drip edge, and top hinge shield Tolerances: Pre-calculated 0.3 - 0.5 mm mechanical clearances for print-in-place operation
Lego piece for wagon door runner with thinner teeth bit slightly smaller
Wagon door runner to replace 3 off 15208 bricks Version with slightly too large slope

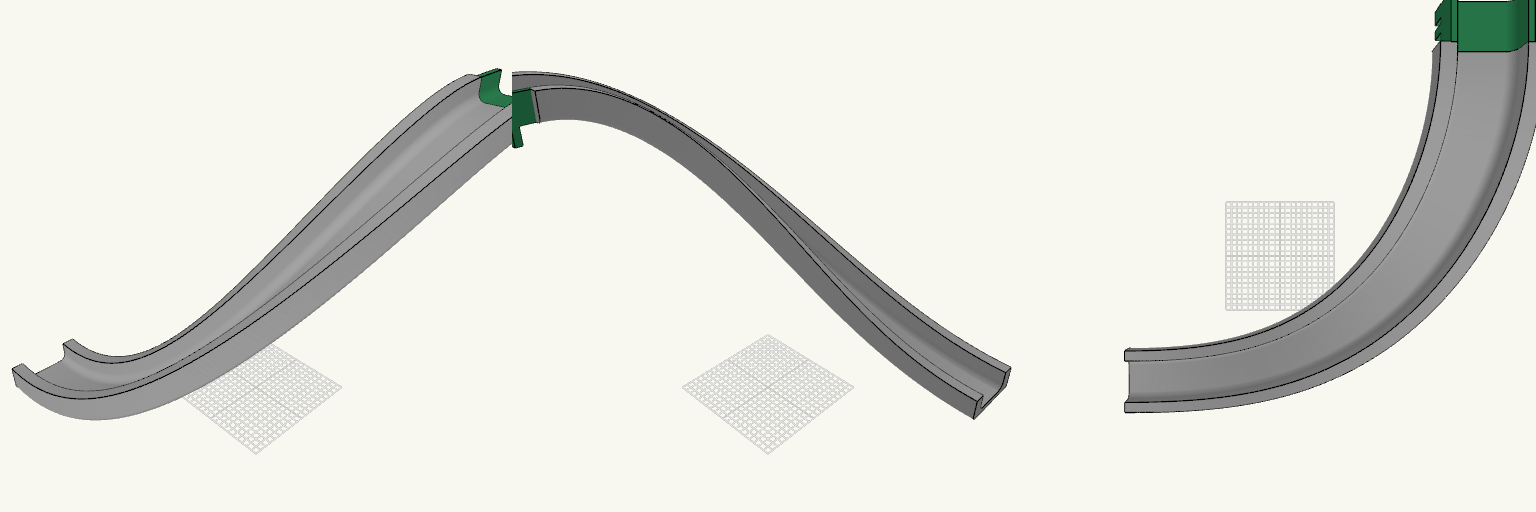

Sweeping Dollhouse Window Slide
A large 3D-printable playground slide designed to mount securely into a 90 mm window frame, sized for 1:6 scale dolls. The track follows a single smooth clockwise sweep out and away from the dollhouse, transitioning cleanly to the floor. Broad Descent: Uses a smooth Bezier sweep to drop 460 mm without looping or reversing direction. Upright Geometry: The track remains perfectly level across its width from top to bottom. Window Mount: Features a squared notch that drops cleanly over a standard lower window edge.

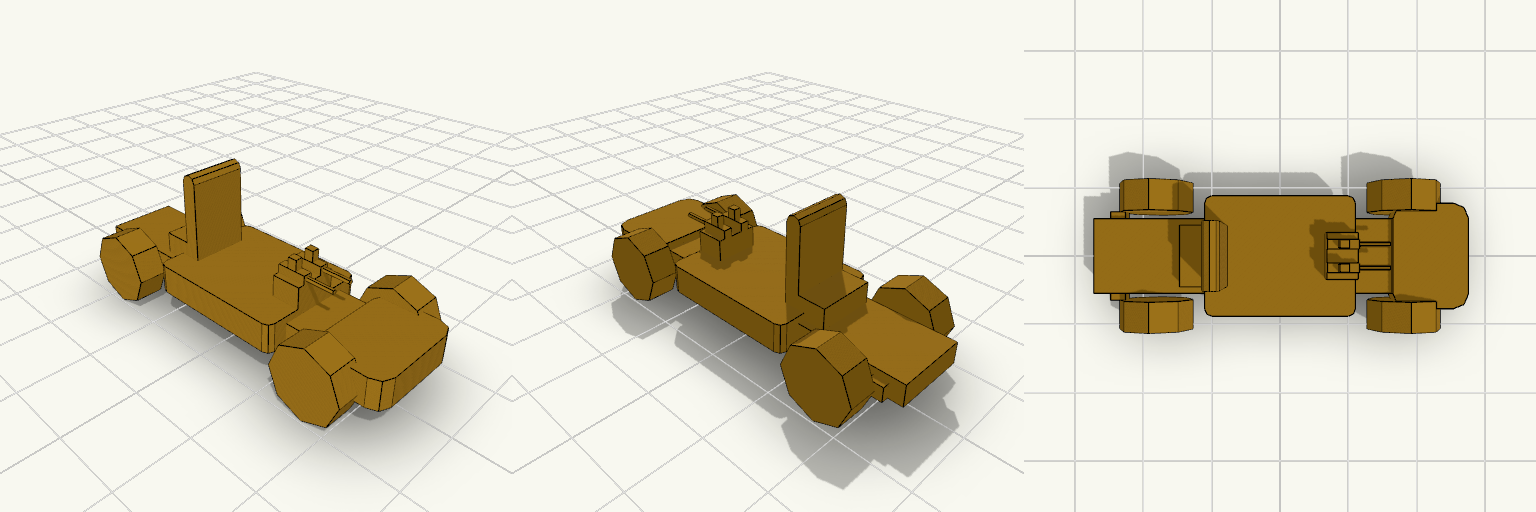

50mm Armed Safety Kart
