AeroMount — Modular Desk Boom Arm
Created 8 days ago
Remixed once
Description

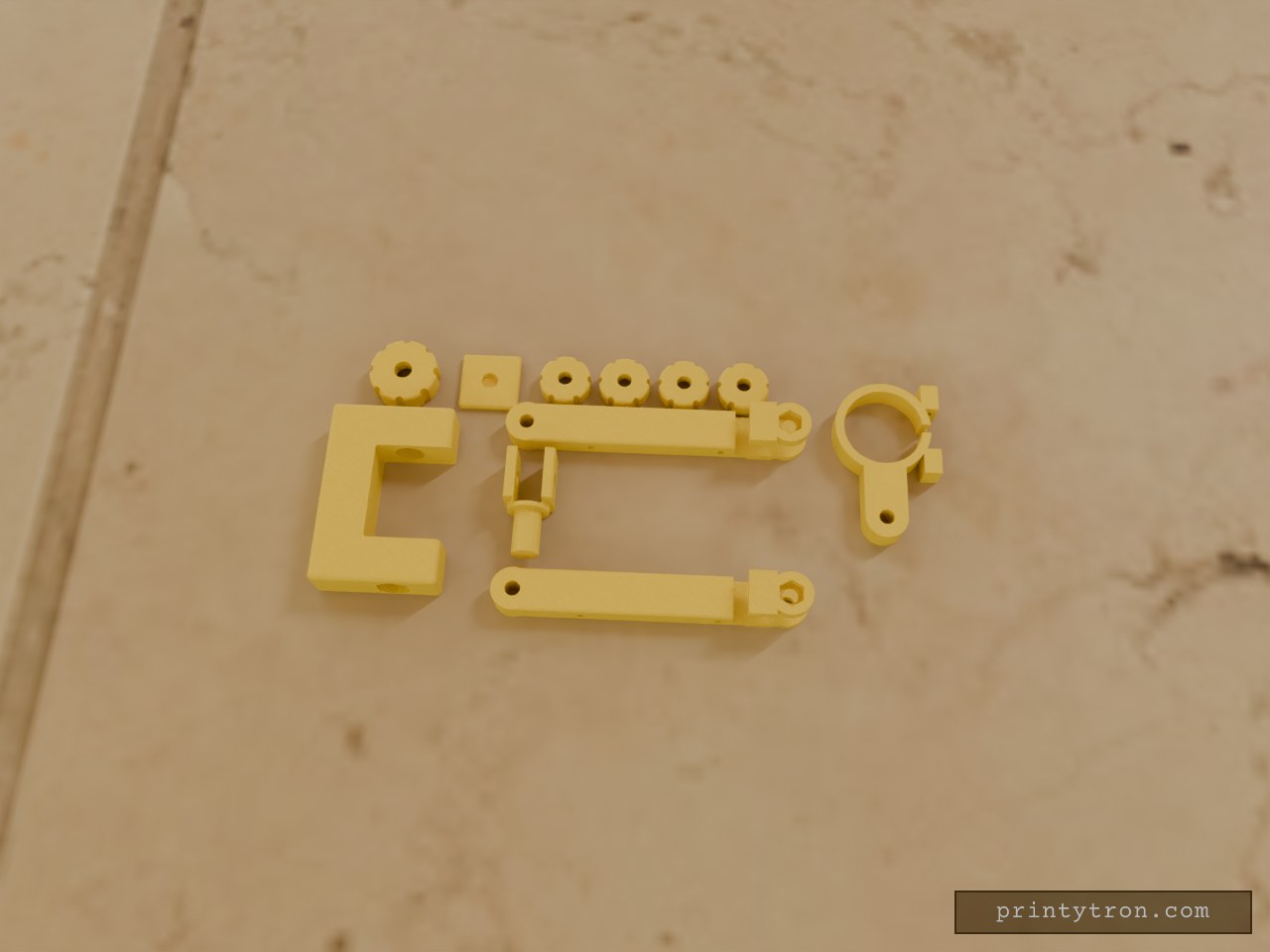

A heavy-duty, fully articulated microphone boom arm designed entirely for FDM printing. Instead of relying on fragile printed threads for major stress points, this system uses a hybrid approach: structural parts capture standard hex nuts and bolts, while retaining large, ergonomic 3D-printed knobs for toolless adjustment.
The modular desk clamp handles surfaces up to 37mm thick, and the universal microphone bracket uses a flexible 45mm C-ring grip that tightens around the microphone body, bypassing unknown thread specifications entirely.
Hardware Requirements
This build utilizes standard metric fasteners to ensure the boom arm safely holds its position under load without cracking:
- Joints: 4× M8×40mm hex bolts and 4× M8 hex nuts.
- Desk Clamp: 1× M10×60mm hex bolt and 1× M10 hex nut.
- Mic Grip: 1× M4×20mm bolt and 1× M4 hex nut.
Print Notes
All parts are oriented flat on the build plate to align the FDM layer lines parallel to the physical stress direction—virtually eliminating the need for supports.
- Walls: Minimum 4 perimeters for structural rigidity.
- Infill: 30–40% Gyroid.
- Materials: PETG or ABS recommended for the arms and clamp body to resist long-term creep. The desk pad can be printed in TPU for maximum grip.
- Tolerances: Joint clearances are built with 0.25mm spacing. Hex pockets are generously oversized for easy bolt insertion.
