Bulkhead Signal Box with RJ45 and SMA
Created today
Description

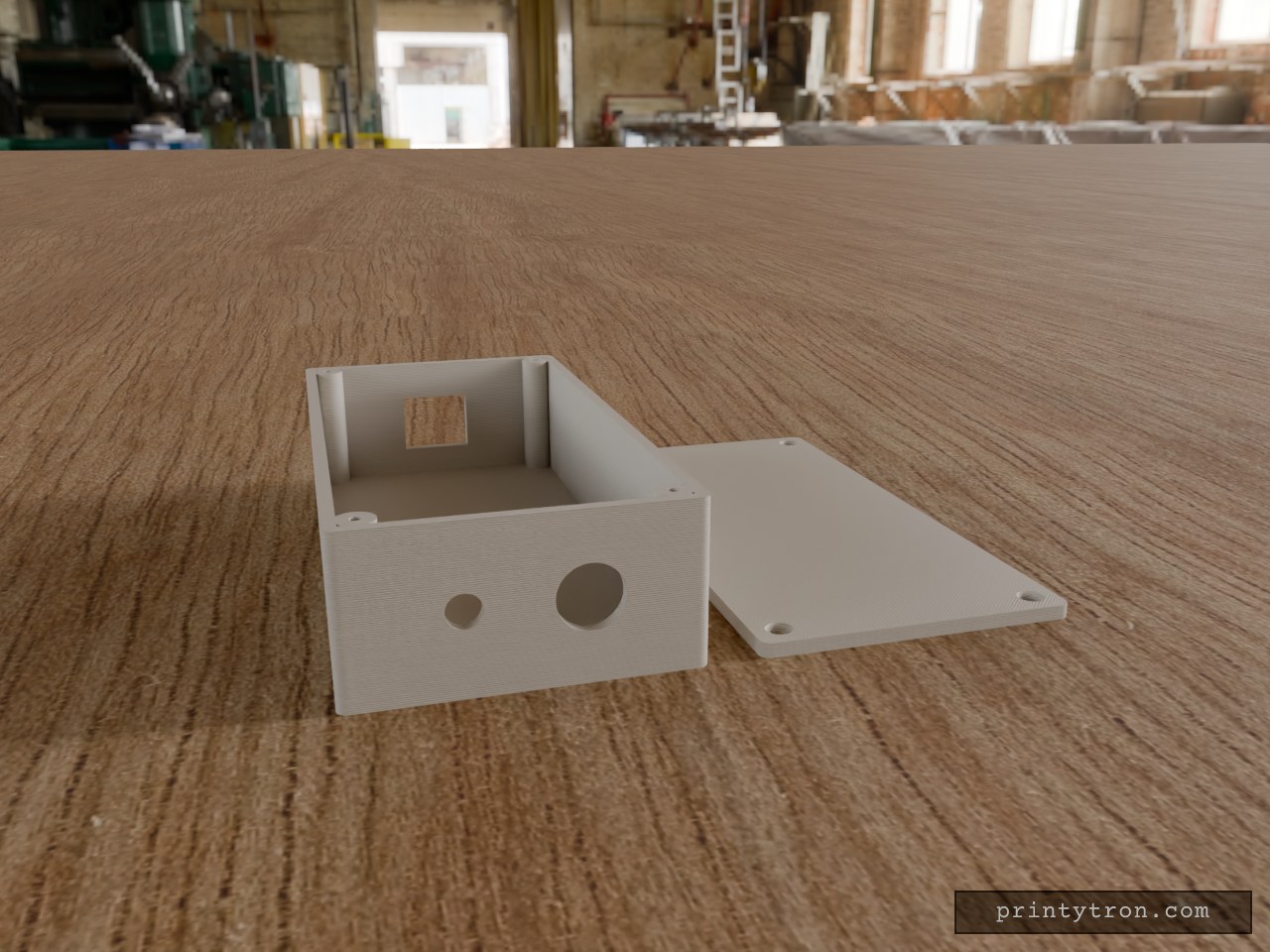

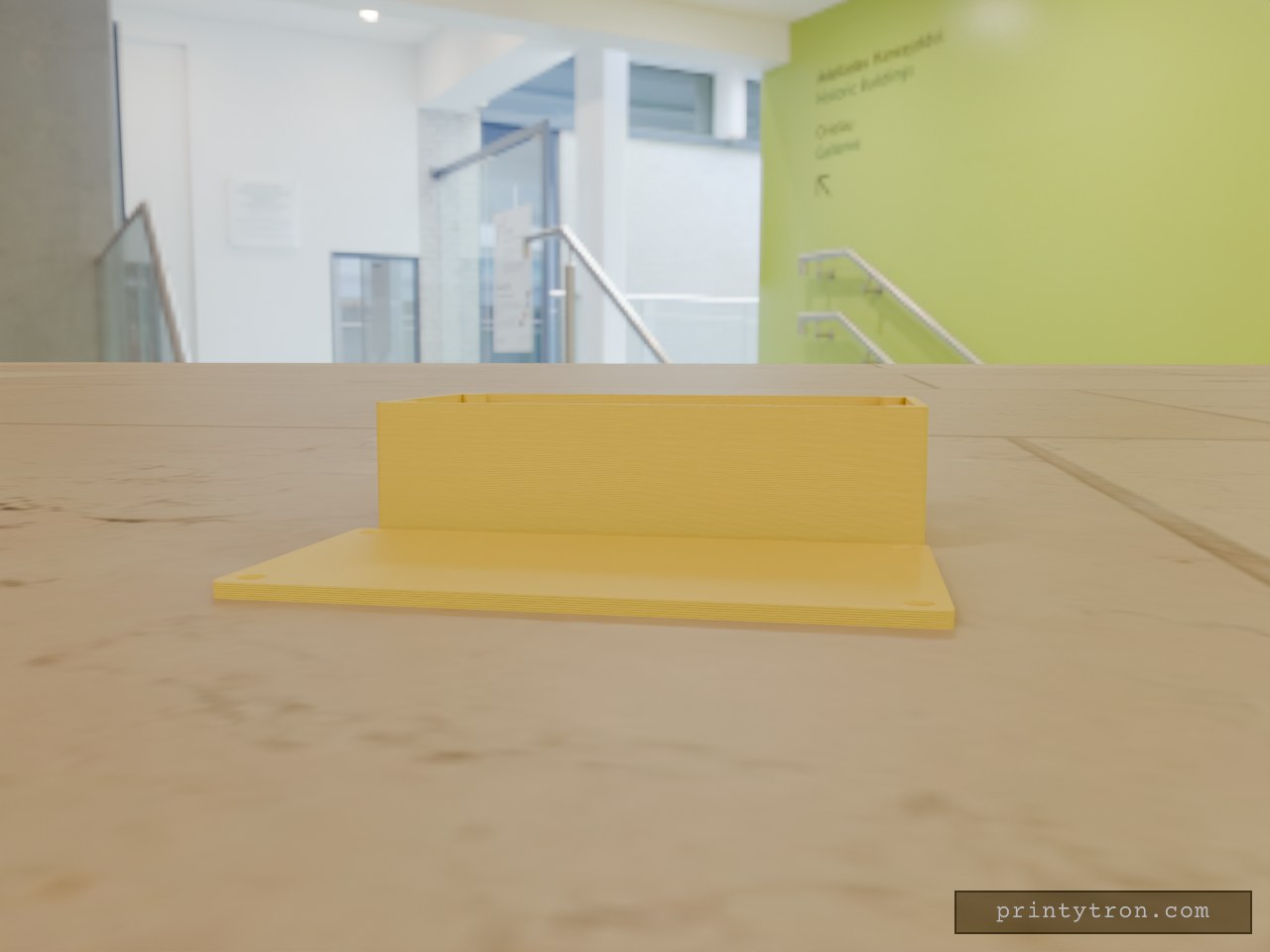

A compact 130 × 65 × 35 mm enclosure in the spirit of a field-radio interface box: Ethernet in one end, antenna and cable gland out the other. The lid sits flush and is held by four M2.5 × 10 mm countersunk screws threading into corner posts.
- RJ45 end: 16.5 × 14 mm rectangular opening, centred in width and height.
- Other end: 6.5 mm hole for a through-mount SMA connector and a 12.5 mm hole for a PG7-style cable gland, spaced evenly across the 65 mm width and centred in height.
- Walls: 2.5 mm; lid 3 mm, printed flat beside the box.
- Screws: 2.1 mm pilot holes in the posts for self-tapping M2.5; countersunk clearance holes in the lid.
