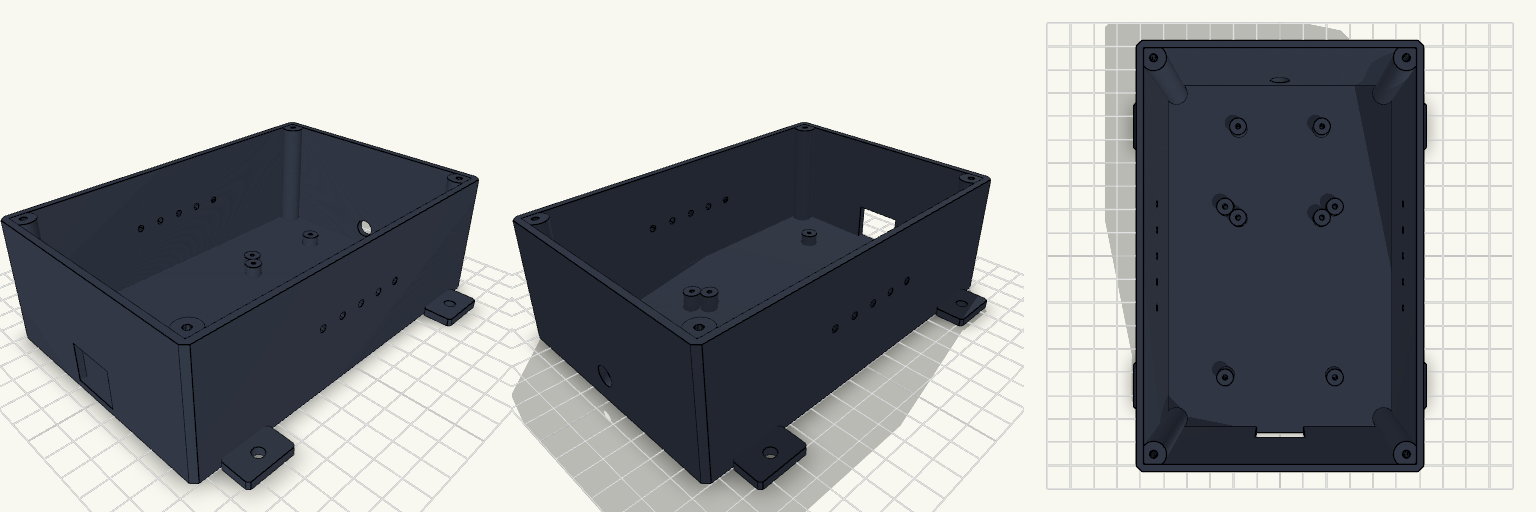

CareProof Prototype Enclosure
Created today
Description
A modular, two-piece electronic enclosure engineered for a 2x3-inch prototype board, a PN532 NFC reader, twin PIR motion sensors, and a BME280 temperature module. Designed with repeated access in mind, the housing features generous internal clearances and dedicated external ports for both programming and external sensors.
Features include:
- Built-in standoffs sized for a standard 2x3" mainboard and a PN532 module
- A precision 0.8 mm-thick window for reliable NFC tap reading
- Dedicated 23.5 mm dual cutouts for motion sensor domes
- A discrete ventilation matrix targeting the BME280 bay
- Constant-access USB-C cutouts and top-edge wire routes for peripheral sensors
- External mounting ears for secure, flush-to-wall installation
