Cherry MX 6-Way Cube
Created 1 months ago
Description
Six-sided fidget clicker block for standard mechanical keyboard switches.
The bores are standard 14.2mm squares with exactly 1.5mm of plate thickness behind them, allowing the plastic retaining clips on the switches to snap firmly into place without glue.
Fitment & Printing Notes:
- Compatibility: Fits Cherry MX, Gateron, Kailh, and most MX-style clones.
- Clearance: The internal cavity is 24mm across; switch stems and contact pins clear each other safely in the center without bottoming out.
- Printing: The top face prints over an internal void. You will want to run internal supports for that ceiling, or just be prepared to trim the bridging droop before seating the top switch.
Images
More like this
Explore more in Desk & Tech →
Micro Print-in-Place Joystick
This is a miniature print-in-place joystick that functions as a tactile desk toy. The internal geometry has been rebuilt to ensure the ball joint prints cleanly without supports or mid-air extrusion failures.
Grid Tray And Puzzle Blocks
A flat 90x90mm tray with an 8x8 internal grid and a matching set of puzzle blocks. Tray: 90x90mm outer dimensions, 10mm high, 2mm walls and base, with 0.5mm deep grid lines separating it into 64 fields. Blocks: Assorted flat 2.5mm thick puzzle shapes (T, L, Square, S, Long-3, Long-2, Dot, 6-Block) sized to fit the grid with 0.5mm clearance. Each block features a single vertical tab on one edge for easy placement and removal.
Handheld-Gehäuse mit herausnehmbarer Anschlussblende
Handheld-Gehäuse für eine selbstgebaute Konsole, bei dem die Kabel- und USB-Öffnung hinten nicht dauerhaft offen bleibt: Eine Klipp-Platte schließt sie und lässt sich bei Bedarf herausnehmen. Aussparung in der Rückwand: 100 × 30 mm, mittig Klipp-Platte: Außenrand 104 × 34 mm, Einsatz 99,6 × 29,6 mm, zwei Federarme mit Rastnasen, Fingermulde Innentiefe: 48 mm, Wandstärke 3 mm Display-Fenster 155 × 87 mm, Tastenlöcher 7,2 mm Druck: Schalen offen nach oben, Platte flach, ohne Stützen möglich
Pi 3 case
A bare Raspberry Pi 3 is so light that hooking up a standard HDMI cable instantly tips it off the desk. This case locks the board into a heavy enclosure and uses snap-on outer corner bumpers to give it some actual grip, so the board stays exactly where you put it. The port cutouts are oversized enough to accept real molded cables without them binding against the shell. Bed Fit: Everything is packed tightly to fit in a single run on a 180×180 mm print bed. Printing: All pieces sit flat on the plate. No supports required anywhere. Clearances: Built with a 0.4 mm gap around the board and lid joint so it slots together cleanly.

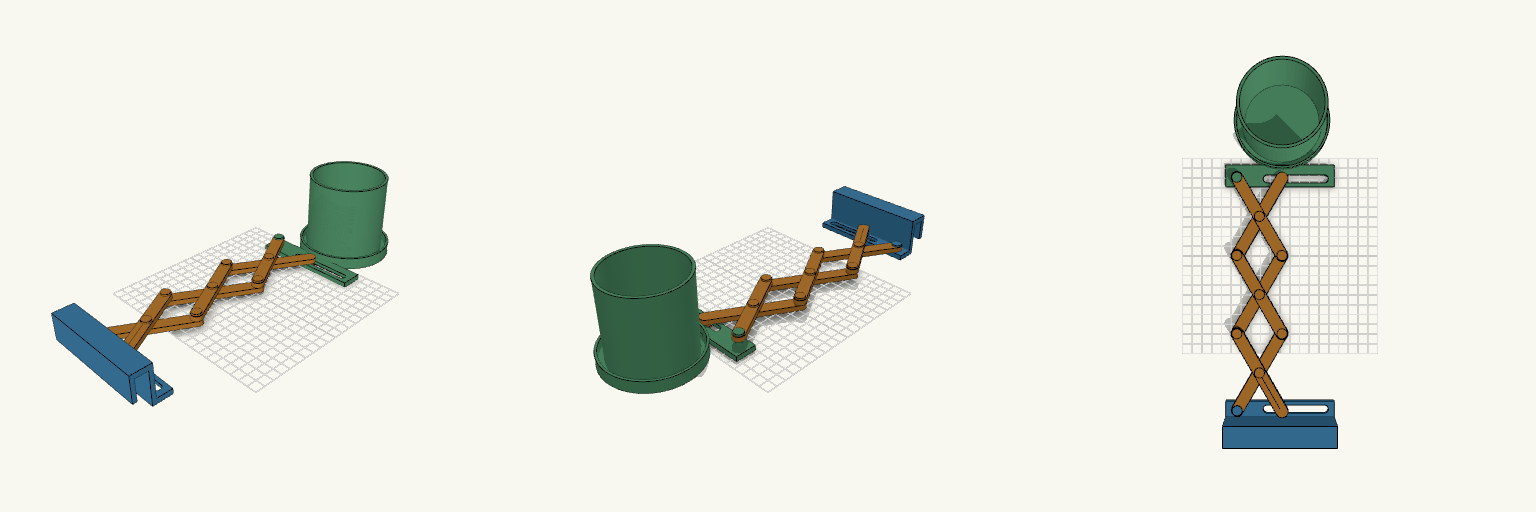

Lazy-Tongs Piano Bottle Caddy
A pantograph-style drink arm in the spirit of a vintage lazy-tongs: a hooked clip straddles the top of a piano's music desk, and a three-unit scissor mechanism unfolds backward to carry a bottle cup. The cup sits inside a wide, rimmed drip tray, so condensation stays off the keys and cabinet. The arm folds flat for storage and stretches out for use. Pivots are print-in-place pins, and the two end joints ride in slots so the arms can open and close. Design notes Cup bore is 76 mm, sized for a standard 33.8 fl oz (1 L) water bottle; cup wall is 85 mm tall. Drip tray is 96 mm across with a 12 mm rim and sits flush with the arm plane. Clip slot fits a music desk about 13 mm thick; adjust the thickness value to suit your piano. Three colored regions: desk clip, scissor arms, cup and tray. Shown in a partly extended pose; the opening angle can be changed to show it folded or fully reached. Best printed as shown, with 0.4 mm clearances at the pivots. Support is only needed under the clip hook. A full bottle is a cantilever load, so keep the arm short for heavier bottles.

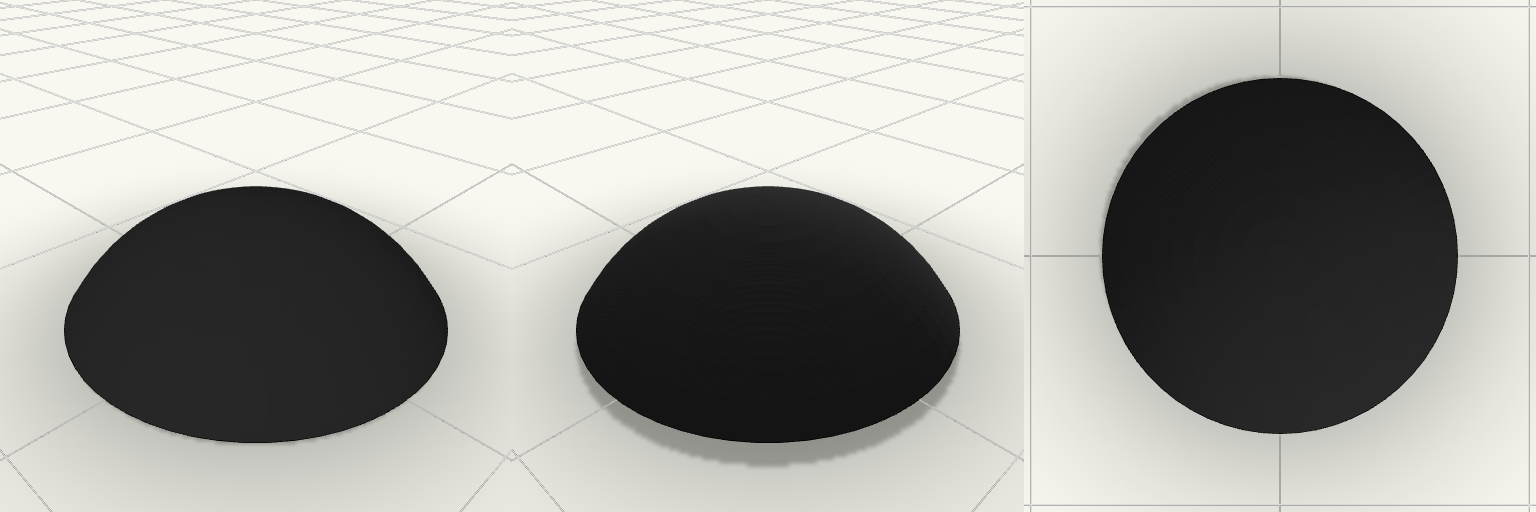

Speaker Dust Cap 14mm
