CycMount — Toolless Camera Clamp
Created today
Description
Introducing CycMount, a robust camera mount engineered to secure action cameras to standard 22mm bicycle handlebars. Built with frequent swaps in mind, it utilizes custom wing nuts for a completely tool-free installation, allowing quick transfers between bikes. The integrated three-prong interface is precisely dimensioned with 3mm thick fingers on a 5mm pitch, ready to accept standard action camera housings and a 5mm pivot bolt.
Design Features
- Strength by Orientation: Both clamp halves print flat on their sides, aligning the layer lines perpendicularly to the clamping stress for maximum strength.
- Support-Free: The horizontal print orientation ensures the 22mm handlebar bore and the 5.2mm pivot hole print perfectly round without requiring slicer supports.
- Tool-Free Adjustments: Includes two custom wing nuts designed with integrated M5 hex nut traps.
Required Hardware
- 3× M5 Hex Nuts (two for the wing nuts, one for the bottom clamp)
- 2× M5 Cap Head Bolts (for the main clamp body)
- 1× M5 Bolt (for the camera pivot)
Images
More like this
Explore more in Automotive, RC & Hobby →
Faceted SimHub Button Box
A clean, industrial-styled button box designed for sim racing rigs, controlling Wind, Pedals, and Bass Shakers via SimHub. The enclosure uses a faceted, dodecahedron-inspired geometry to eliminate flat overhangs and keep the footprint small. The front panel cuts a heavy 45° chamfer, hiding the seam where it snaps into the rear body. Features internal snap-fit prongs and receiver towers — no visible hardware required. Base dimensions reduce sharply toward the mount to avoid interfering with wheelbases or monitor arms. Built with clearances for standard Cherry MX switches and a toggle switch cut out for the top left.

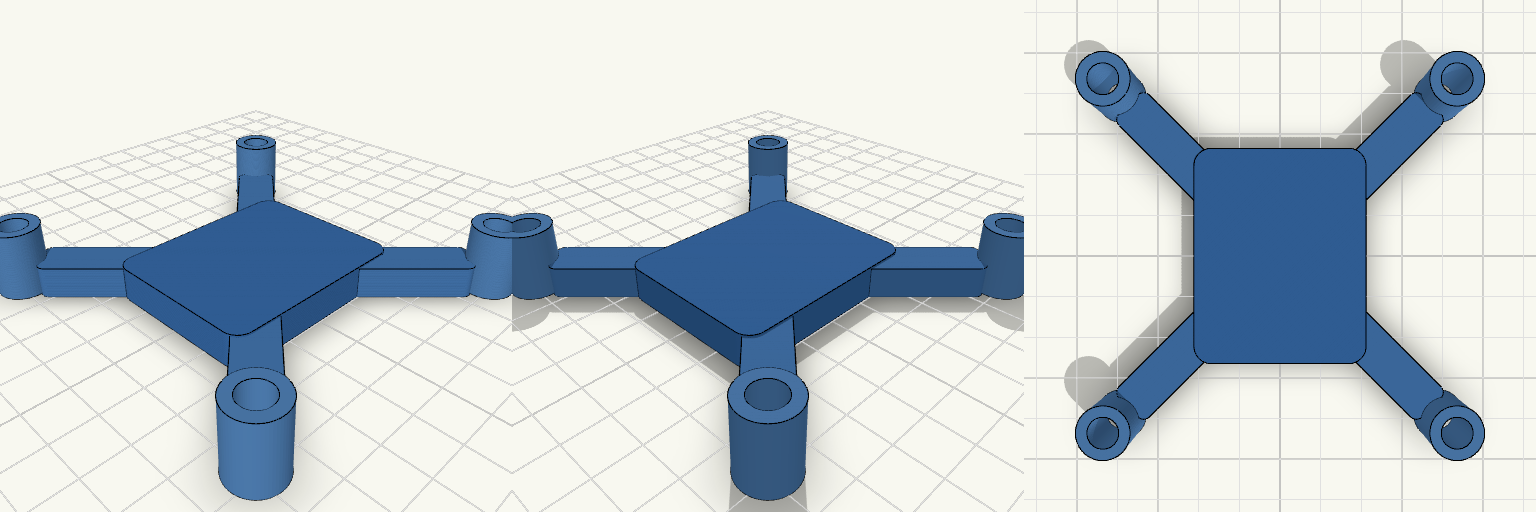

Solid Core Quadcopter Frame
