Dyson V11 Car Crevice Tool
Created 1 months ago
Description
A long, narrow crevice attachment designed to fit Dyson V11 vacuums (35mm wand mount with a spring-clip catch slot). Built specifically to reach deep into car seat gaps where standard attachments cannot fit. The overall length is 220mm, transitioning from a round mount to a thin rectangular shaft, and tapering sharply at the tip to wedge into tight cracks.
Remixing and Variables
This model is built as a baseline for custom detailing attachments. Key dimensions to adjust for your specific needs:
- Shaft Reach: The main rectangular body is currently 160mm long. Extending this allows deeper reach, though printing vertically may require slower speeds or a brim.
- Tip Profile: The final 20mm tapers down to a 5mm outer width. Widening this slightly will improve airflow if suction is restricted; narrowing it further will access tighter rail gaps.
- Mount Clearances: The adapter sleeve has a 35.5mm inner diameter over a 25mm depth to slide over the 35mm wand. Adjust this clearance if your printer's bridging or shrinkage binds the fit.
Images
More like this
Explore more in Automotive, RC & Hobby →
RC Car Bevel Gear Rear Drive
A rear-axle drive for an RC car where the motor shaft has to turn 90° into a cross-car axle without the gears skipping or the motor shifting. This set uses a 12-tooth pinion and 24-tooth crown gear (2:1) on a 103.9 mm × 6 mm axle, with an open motor cradle instead of a closed box. Key numbers Gears: module 1.5, 20° pressure angle, 4 mm face width, 90° shaft angle Pitch cone angles: 26.57° (pinion) and 63.43° (crown); cone distance about 20.1 mm Pinion bore 2.1 mm, crown bore 6.2 mm, both with M3 set-screw holes in the hubs Axle supports: 6.4 mm through-hole plus a 17.3 mm seat for 606 bearings (6×17×6) Base: 84 × 92 × 5 mm, M3 holes (3.4 mm clearance); cradle slots allow forward and back adjustment Motor cradle parameters at the top of the file: mw, mh, wall, saddlel, saddley. Measure the real motor and edit them Cover is open at the bottom, with two M3 ears at the rear Printing Print gears with the hub facing up or down on the bed; PETG or nylon preferred Cover prints open-side up without supports Axle is a separate 6 mm steel rod; M3 screws hold supports, cradle, straps and cover
Double Seatbelt Buckle Holder, Backseat
Two seatbelt buckles flop around and fall into the seat gap, so this holder stands both upright side by side in the backseat of a Toyota Sienta. Each 33 x 53 mm pocket goes straight through the base, so the buckle and webbing pass through with nothing blocking the bottom. Pocket size: 33 x 53 mm each, sized for a 31 x 51 mm buckle Sleeve height: 28 mm above a 6 mm base Overall footprint: 130 x 64 mm Centre screw hole: 4.5 mm Print flat on the base, no supports needed
Line Follower Chassis (N20/Mega)
A flat-printing, modular chassis designed specifically for high-speed line following. Engineered to accommodate an Arduino Mega 2560, dual N20 motors, and a Pololu QTR-8RC reflectance sensor, with priority placed on a low center of gravity and straightforward field maintenance. What it's for This frame carries the electronics and drive system for a 2WD differential steering robot. Components drop into dedicated regions rather than requiring complex brackets, and all sensitive electronics are kept clear of the track surface. The front sensor mount separates from the main plate to allow independent height tuning of the IR array. Dimensions Overall envelope (assembled): 180 mm (L) × 130 mm (W) × 55 mm (H) Track width: ~90 mm, providing clearance for 35–38 mm diameter wheels. Electronics rails: Slotted cross-members accept an Arduino Mega or similarly sized microcontrollers. Drive mounts: Drop-in snap/strap cradles for standard 12×10 mm N20 motors. Power bay: Sized for two parallel 18650 lithium cells (44 mm inner width) with integrated Velcro pass-throughs. Assembly All major features anchor with standard M2 or M3 hardware. The front skid and sensor bracket print flat independently and bolt into designated sliding rails on the chassis nose. The motor mounts include under-plate zip-tie channels to secure the gearboxes rigidly against torque. Use standoffs for the motor driver and buck converter pads to ensure proper wiring clearance above the deck.

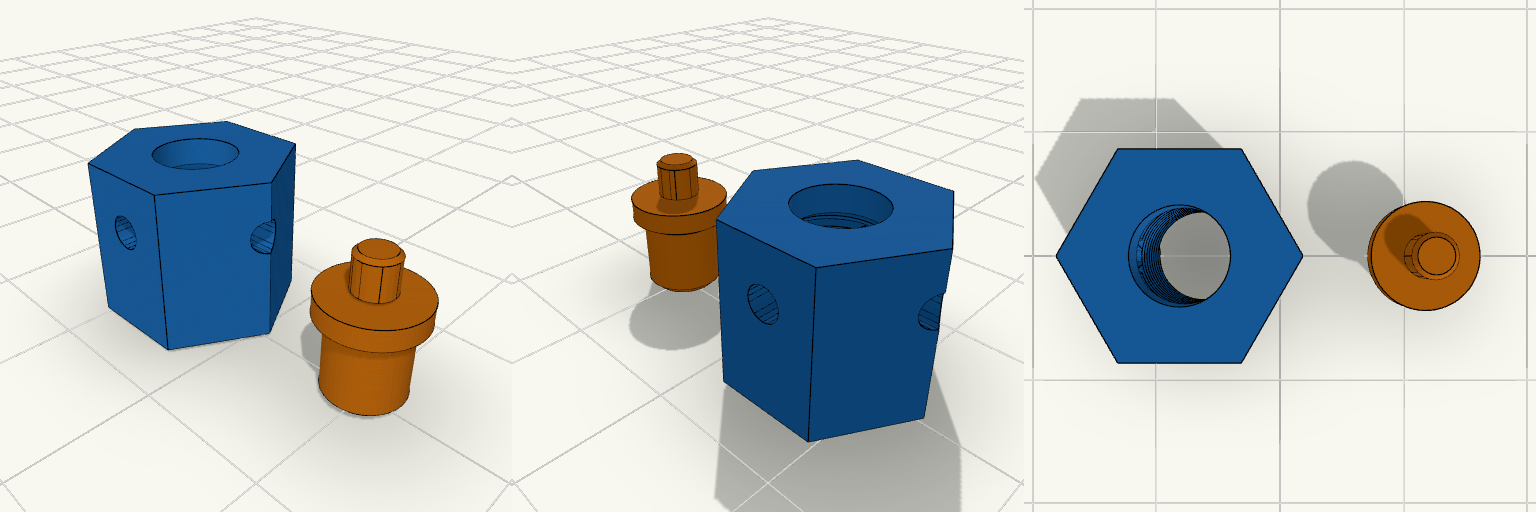

Captive Tire Deflator
