Description
What it's for

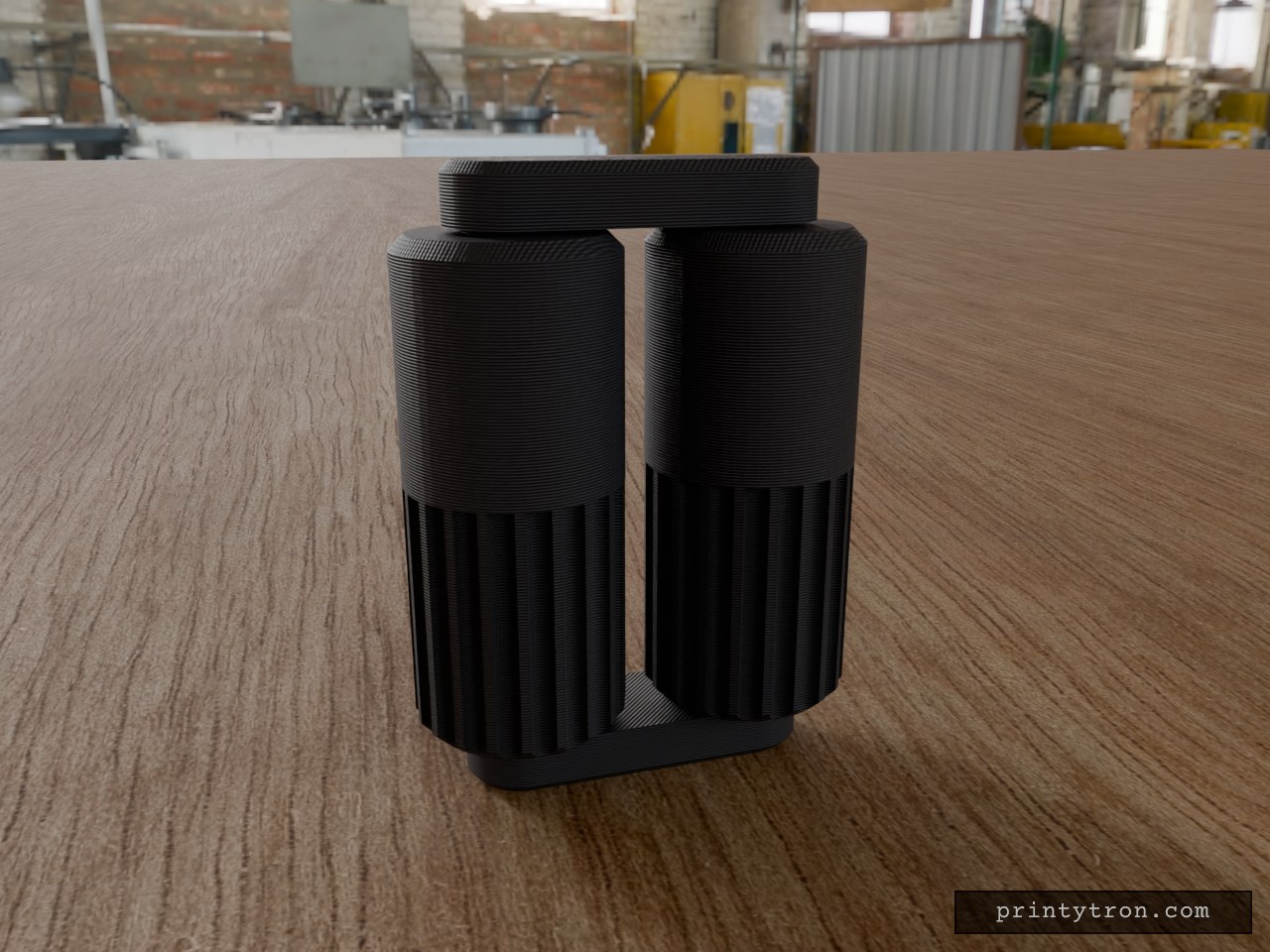

A fully print-in-place fidget roller inspired by continuous-motion hand toys. It features two heavily grooved outer cylinders captured on a rigid internal frame. Built to be rolled continuously in one hand to keep fingers busy.
Dimensions
- Overall size: 37 mm wide, 63 mm tall, 22 mm deep.
- Rollers: 22 mm diameter, 50 mm tall with 20 scalloped grip grooves.
- Clearance: Designed with a 0.5 mm gap top, bottom, and radially around the axles for a free spin immediately off the build plate.
Print notes
Prints completely vertically without supports. The top frame link is designed with a flat bottom to bridge cleanly across the two internal axles without adhering to the rollers beneath it. Once finished, a firm twist breaks any minor stringing and frees the rollers.
