Fillable Ballast Flag Base
Created today
Description
A freestanding, FDM-printable flag base designed for securing ground stakes indoors or on hard surfaces. The primary body features a hollow dome for sand ballast, accessed via a robust threaded fill port, and an integrated flange with four mounting holes for temporary pegging or bolting.
A reinforced 120mm central socket holds the stake, braced by four solid corner ribs. The socket includes a side-entry hex nut trap designed for an M8 bolt to clamp the stake firmly in place without play.
- Ballast capacity: ~1.3 Liters (approx. 2kg of dry sand).
- Hardware required: 1x M8 bolt (25-30mm long), 1x M8 hex nut.
- Compatibility: Clears a 16mm standard tent or feather flag stake (socket bore is 16.5mm).
- Overall print dimensions: 230mm footprint diameter, 120mm height. Fits most mid-sized print beds.
Images
More like this
Explore more in Workshop & Tools →
Biofloc Monitor Station Enclosure
An enclosure is only as good as the snarl of wires it prevents. This is a heavy-duty two-part monitor housing built specifically for FDM printing, designed to group, separate, and anchor a complete suite of biofloc water-quality electronics without turning into a bird's nest inside. The layout isolates the battery compartment at the bottom and keeps the DC buck converters and relay in a ventilated top section, leaving the central deck clear for the ESP32 and an array of sensor interfaces. Internal divider walls double as cable routing channels, forcing the wiring to stay orderly. Core Features Printability: Both halves print completely flat on the build plate (Z=0). The integrated bottom handle is flush with the front face to avoid overhangs. Dimensions: 170 mm width × 250 mm height × 75 mm depth. Hardware Required: 6× M3 screws for the rear cover; additional M3 hardware for the internal standoffs and the 16x2 LCD faceplate mount. Ports: Bottom panel holds 4× sensor ports (3× 8mm, 1× 6mm) with engraved labels. Right panel holds cutouts for 12V DC, an SD card slot, a rocker switch, and USB programming access.
Hilti Nuron Battery Mount
A wall-mounted receiver bracket for Hilti Nuron batteries. Heavy battery packs love to lever short brackets right out of the drywall. This bracket gives them a solid vertical footprint to spread that load, catching the battery's sliding interface on an internal U-channel with a dead stop at the base. Internal Channel: 63mm wide (48mm opening) Clearance: Counter-sunk screw holes keep the hardware below the sliding surface Detail: Features a debossed HILTI logo on the backplate that stays clear of the sliding path

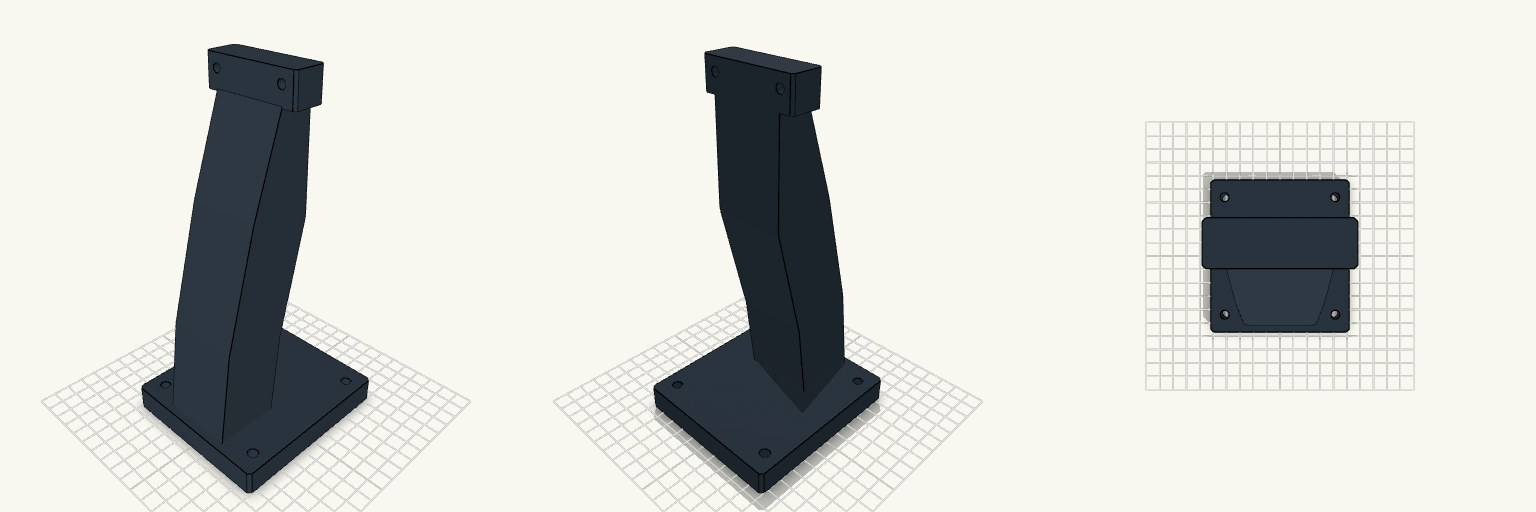

Measure Stand
