Description
Brute is a hollow, LEGO-compatible cab modelled loosely on the British Class 47 locomotive. It is six studs wide and four deep, with a closed floor that carries a grid of sockets so it presses onto a standard baseplate. Two studs on the nose give a place to clip on headlight pieces.
Features
- Raked twin windscreens and side door windows
- Flat, smooth roof at five-brick height
- Two studs on the front face for headlights
- Lamp recess centred between the headlight studs
- 6×4 socket grid under the floor
Dimensions
- Width: 47.8 mm
- Depth: 31.8 mm
- Height: 48 mm to the roof
- Headlight studs: 4.8 mm diameter, 8 mm either side of centre
Print notes
Print upright on the floor plate, or flipped onto the roof for a clean top surface. Hollow underneath and open at the rear.
Images
More like this
Explore more in Automotive, RC & Hobby →
Flat pack Lego style cab based loosely on the BR Type 47 diesel
Brute is a hollow, LEGO-compatible cab modelled loosely on the British Class 47 locomotive. It is six studs wide and four deep, with a closed floor that carries a grid of sockets so it presses onto a standard baseplate. Two studs on the nose give a place to clip on headlight pieces. Features Raked twin windscreens and side door windows Flat, smooth roof at five-brick height Two studs on the front face for headlights Lamp recess centred between the headlight studs 6×4 socket grid under the floor Dimensions Width: 47.8 mm Depth: 31.8 mm Height: 48 mm to the roof Headlight studs: 4.8 mm diameter, 8 mm either side of centre Print notes Print upright on the floor plate, or flipped onto the roof for a clean top surface. Hollow underneath and open at the rear.
Freelance Lego fitting cab with Headlight Studs
Brute is a hollow, LEGO-compatible cab modelled loosely on the British Class 47 locomotive. It is six studs wide and four deep, with a closed floor that carries a grid of sockets so it presses onto a standard baseplate. Two studs on the nose give a place to clip on headlight pieces. Features Raked twin windscreens and side door windows Flat, smooth roof at five-brick height Two studs on the front face for headlights Lamp recess centred between the headlight studs 6×4 socket grid under the floor Dimensions Width: 47.8 mm Depth: 31.8 mm Height: 48 mm to the roof Headlight studs: 4.8 mm diameter, 8 mm either side of centre Print notes Print upright on the floor plate, or flipped onto the roof for a clean top surface. Hollow underneath and open at the rear.
25mm Tactical Tabletop Tokens
A complete set of nine 25mm wargaming tokens tailored for tabletop tracking. Designed with a clear separation between the base and the raised lettering, making them perfectly suited for a mid-print filament swap or a multi-material system. Specifications Dimensions: 25 mm diameter, 4 mm overall height. Tolerances: The raised text and outer rim sit exactly 1 mm above the base layer, creating a clean Z-height transition for color changes. Printability: No supports required. The bottom edges feature a 1 mm chamfer to prevent elephant-foot distortion on the first layer, ensuring the tokens remain perfectly circular and easy to pick up from flat tables. Layout: Arranged in a flat 3x3 grid for immediate batch printing. Can be split into individual models in the slicer if needed.
Double Seatbelt Buckle Holder, Backseat
Two seatbelt buckles flop around and fall into the seat gap, so this holder stands both upright side by side in the backseat of a Toyota Sienta. Each 33 x 53 mm pocket goes straight through the base, so the buckle and webbing pass through with nothing blocking the bottom. Pocket size: 33 x 53 mm each, sized for a 31 x 51 mm buckle Sleeve height: 28 mm above a 6 mm base Overall footprint: 130 x 64 mm Centre screw hole: 4.5 mm Print flat on the base, no supports needed

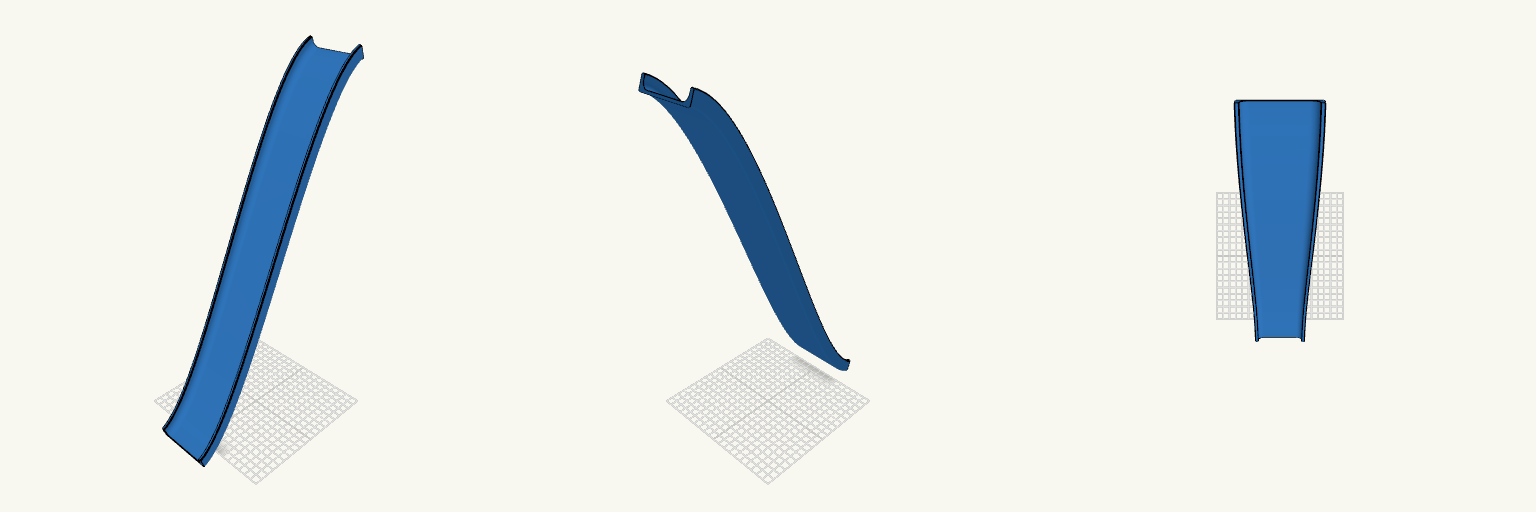

Dollhouse Slide Flume
