Gas Flow Regulator Replacement Knob
Created 1 months ago
Description
Heavy-duty replacement rotary control knob designed for gas regulators, torch bottles, and flow control valves. Features deep perimeter fluting to ensure positive grip even when operating with work gloves, a top recess with directional flow arc, and distinct raised minus and plus indicators.
The underside features an 8 mm double-flat valve stem socket (6.5 mm across flats, 18 mm deep) with a transverse grub screw cross-bore for secure mechanical locking onto brass regulator shafts.
- Outer diameter: 46 mm
- Total height: 26 mm
- Grip: 12 scalloped finger flutes
- Stem bore: 8.2 mm with 6.5 mm double-D flats, 18 mm socket depth
- Set screw: M4 / 3.4 mm cross-bore for grub screw retention
- Markings: 270-degree indicator arc with raised +/- flow indicators
Images
More like this
Explore more in Workshop & Tools →
サーボソケット
A servo can't turn a valve knob without a socket that grips it, and a loose fit slips under torque. This cylindrical socket slides onto the knob from the bottom and keeps the top face flat and closed for a future servo horn. Key numbers Body: 30 mm diameter, 14 mm tall, chamfered edges Cavity depth: 10 mm, opening only on the bottom face Opening at the bottom: 2.6 mm × 16.7 mm, widening to 4.5 mm × 16.7 mm at the inner end Clearance: 0.15 mm per side, with rounded corners and slightly bowed long walls Top wall: 4 mm solid, with no screw or mounting holes Printing: open face down on the bed, no supports needed; the wall slope is about 5° from vertical Cavity size, taper, corner radius and clearance are all adjustable parameters

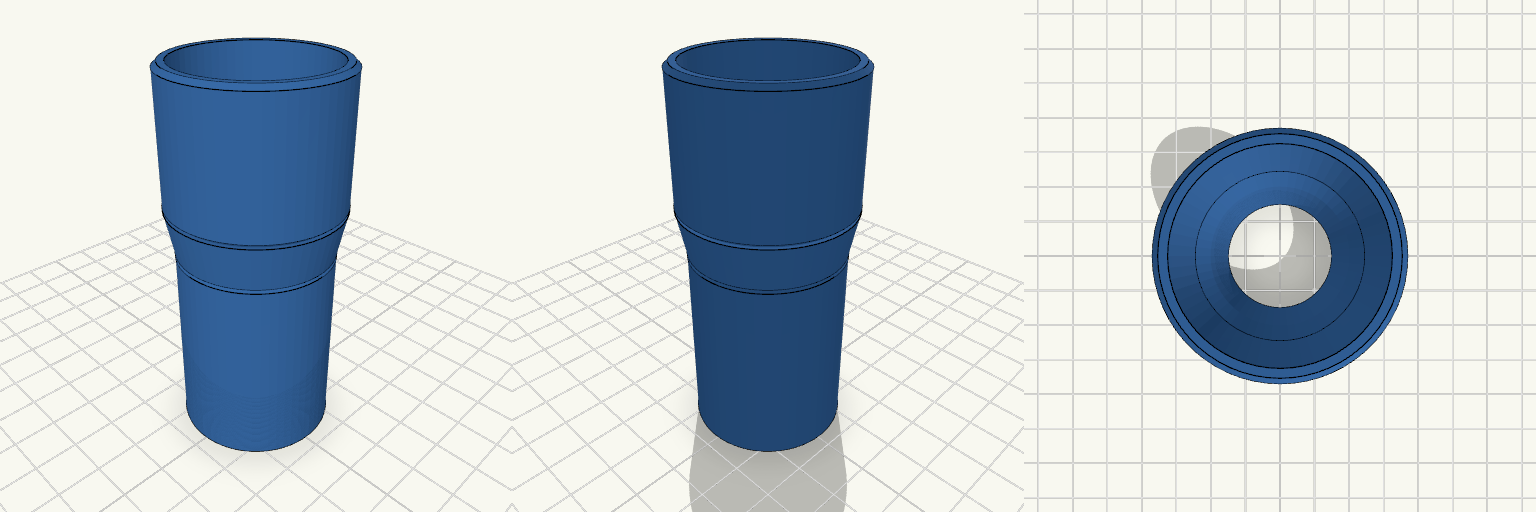

Metabo Schlauchadapter 35mm zu 39mm
