Kayak Track Anchor Cleat
Created 1 months ago
Remixed once
Description
A heavy-duty zig-zag anchor cleat designed specifically for marine T-track systems (YakAttack, Scotty, RAM).
This printed assembly includes the cleat body, two M8 threaded T-bolts, and two knurled hand nuts.
Fitment Details
- Track Slot: The alignment boss on the bottom of the cleat is sized at 8.5mm to drop perfectly into standard 9mm (3/8") kayak track top slots.
- T-Bolt Heads: The included bolts have 11.5mm x 22mm heads designed to slide through the wider internal channel of the track without pulling through the top.
- Hardware: The printed hardware uses standard M8x1.25 threads. The heavier 8mm shaft is vastly stronger than 1/4-20 when 3D printed, while still fitting flawlessly through a standard kayak track slot.
Photos
Technical views
More like this
Explore more in Automotive, RC & Hobby →
NAJMA
A compact, single-piece delivery truck chassis designed as Part 1 of a commemorative desk model. Engineered to print in place with zero assembly required for the base. Integrated Wheels: Solid cylinders fused into the chassis base for a robust, no-moving-parts foundation. Rear Platform: Provides a flat bed with two precisely placed alignment pins to locate a custom cargo box. Commemorative Markings: Features embossed text on the cabin roof celebrating the occasion. Built to be fully printable without supports, keeping the underside flat and stable.
StatQuad — Mechanical TTRPG Tracker
A compact, 4-row mechanical stat counter. This model features a fully integrated print-in-place leaf spring and cam system designed specifically for FDM limits. Features 4-Row Array: Eight numbered dials grouped into four rows, displaying double-digit values. Mechanical Detents: Leaf springs elevated off the baseplate by 0.5 mm ensure each dial clicks into position precisely and won't fuse to the floor during printing. Low Profile: The housing is optimized to sandwich the gears with just a fraction of a millimeter of Z clearance. Print notes Print without supports — the 0.5mm gap under the leaf springs will bridge cleanly. Fine layer height (0.12 - 0.16 mm) is recommended for the digits and detent nubs.
Double Seatbelt Buckle Holder, Backseat
Two seatbelt buckles flop around and fall into the seat gap, so this holder stands both upright side by side in the backseat of a Toyota Sienta. Each 33 x 53 mm pocket goes straight through the base, so the buckle and webbing pass through with nothing blocking the bottom. Pocket size: 33 x 53 mm each, sized for a 31 x 51 mm buckle Sleeve height: 28 mm above a 6 mm base Overall footprint: 130 x 64 mm Centre screw hole: 4.5 mm Print flat on the base, no supports needed

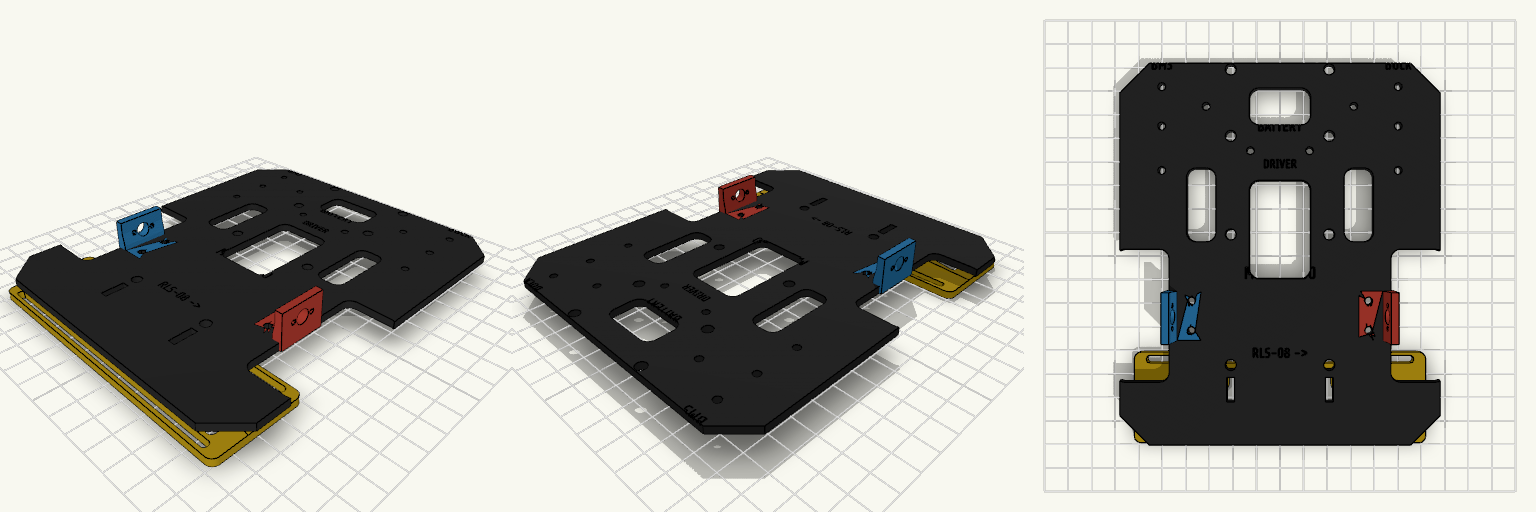

Veloce — Differential Line Follower Chassis
