Description

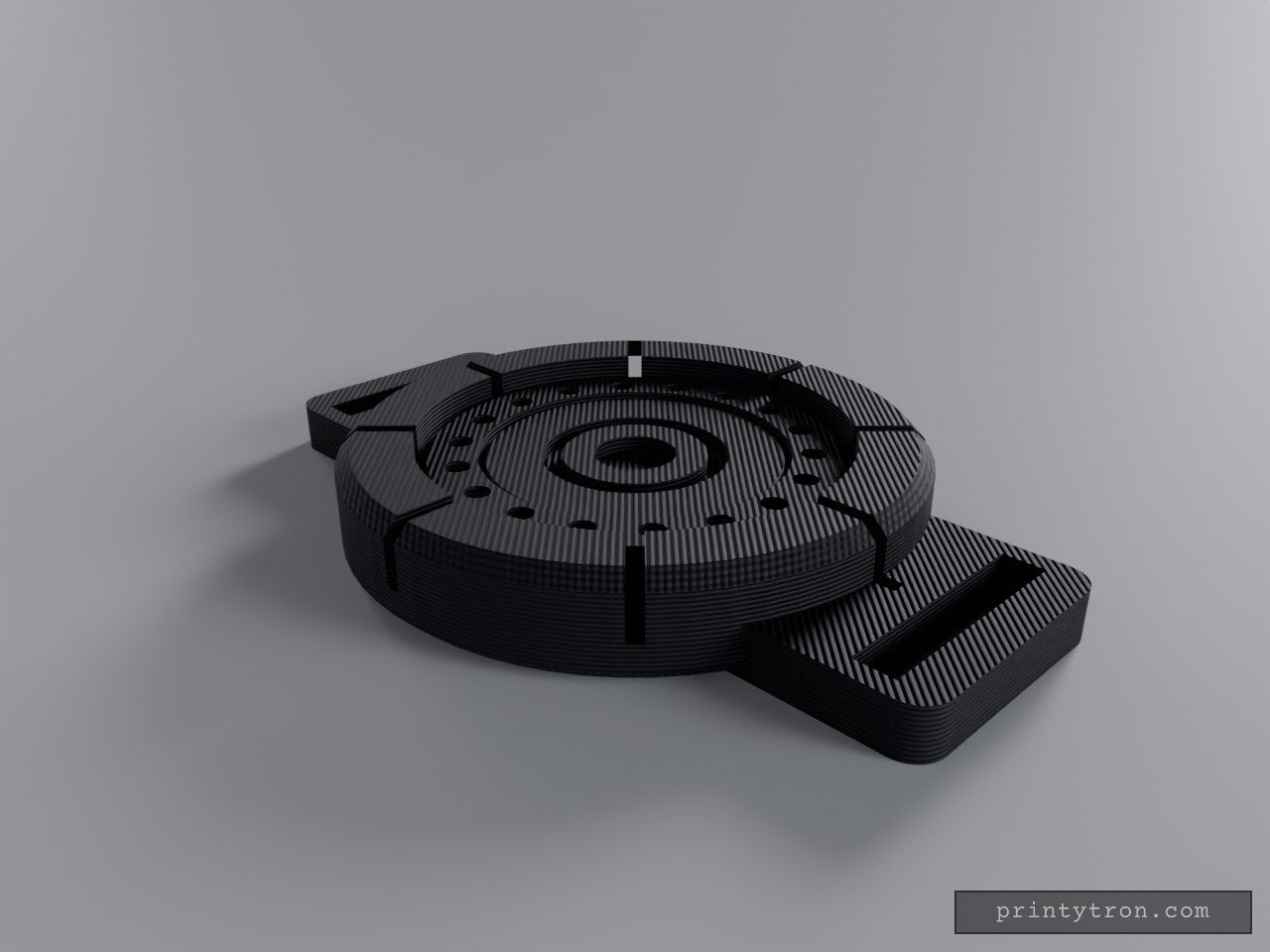

A scaled-down version of the standard palm repulsor, proportioned specifically for a child's hand.
Design Notes
- Overall width is roughly 57 mm to sit comfortably flat across a smaller palm.
- The side mounting slots are sized to accept a standard 1/2-inch elastic strap.
- Printed as three separate pieces to allow for distinct colours without painting.
