Created today
Description
A two-part threaded enclosure for an 80mm round LED lantern.
- Clearances: 82mm internal pocket for the light.
- Cable Routing: 35mm central base opening and an open bottom channel for USB routing.
- Assembly: 4mm-pitch threaded connection between base and shade.
- Shade: Twisted dodecagon with 1.5mm wall thickness for optimal light transmission.
- Build Plate: Designed to fit diagonally on a 180x180mm printer bed.
Images
More like this
Explore more in Decor & Display →

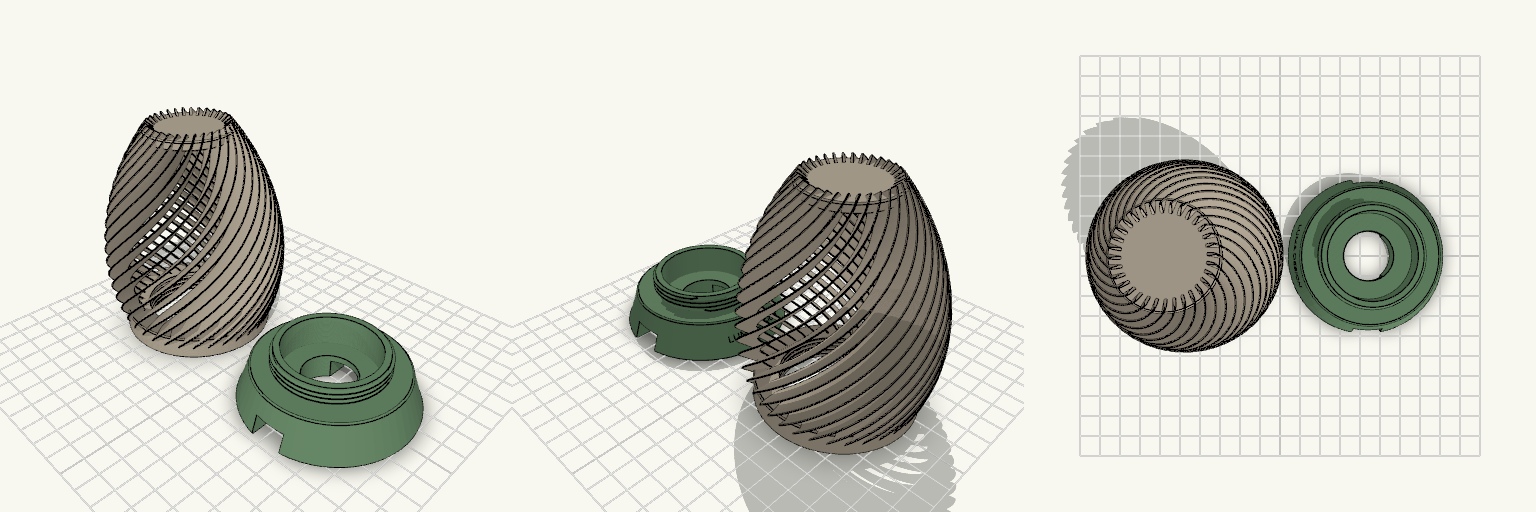

מנורת פסים מעודכנת להדפסה
A two-piece twisted table lamp designed to thread together securely and house a standard 40mm LED puck. The base features a hollow core and wide exit channel for seamless wire routing, accommodating thick braided cables and USB plugs. The shade uses a 32-rib Bezier profile for a full teardrop volume without requiring print supports. Fitment and Clearances Print Volume: Scaled to comfortably fit 180mm print beds (perfect for Bambu A1 Mini) when sliced as separate objects. Light Pocket: 42mm final inner diameter to securely drop in a 40mm round LED. Mating Interface: Fully modeled threaded collar for a self-locking, hardware-free assembly. Cable Routing: Base features an oversized bottom channel and center bore to clear USB-A connectors.

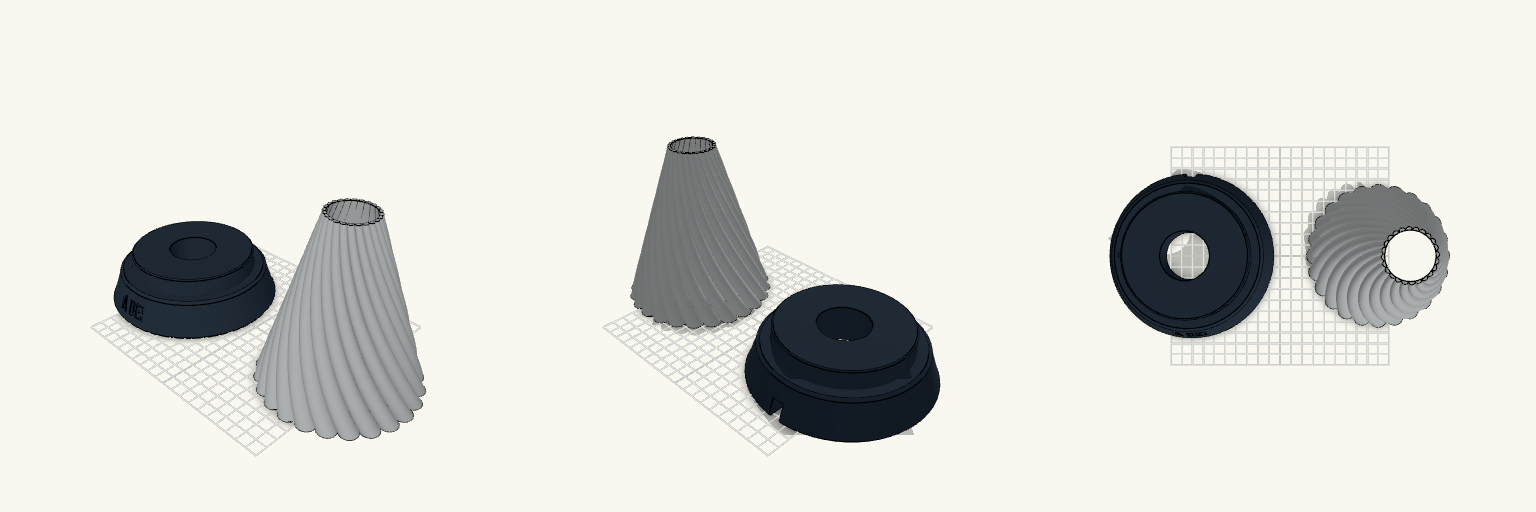

Low Twist Table Lamp
A two-piece tabletop lamp designed around a standard E27 socket, sitting low to the desk. The shade slips directly over the base collar, printing narrow-side-up with a sweeping twisted rib profile. Remix Hooks Twist & Scale: The shade currently twists 72 degrees over 140mm height. You can tighten the twist or push it taller depending on your build volume. Base Lip: The shade mounts via a 110mm diameter friction-fit collar. If scaling the shade, keep the collar dimensions locked so it still mates with the base. Socket Mount: The internal bore is 42mm wide and sits 10mm off the deck — plenty of space for a standard E27 fixture, with a routing channel dropping down to the desk surface.
Reeded Table Lamp
A modern reeded table lamp designed to stand independently on a desk, nightstand, or cabinet. The design has been re-proportioned to be shorter and wider, offering a grounded, substantial look. Customization & Assembly Main Shade: Measures 130mm tall and 140mm wide, heavily textured with vertical reeds. It simply slides over the base lip. Base Stand: Sits flat on the table with a 25mm height. It features a standard 42mm hole for an E27 socket and a discreet bottom channel for cable routing. Top Diffuser: A drop-in cap that hides the bulb and softens the upward light. All three pieces are designed to be printed easily without supports. The modular drop-in fit makes swapping bulbs or modifying the shade's color later straightforward.
Ivory Folded Ceramic Vases
A trio of statement centerpiece vases designed with deep organic grooves, sweeping necks, and soft ivory tones. Each piece balances a minimalist ceramic aesthetic with flowing, fabric-like curves, ready to print as functional tabletop decor. Low Spiral Vase: A wide, dramatic base that twists upward through 140 degrees into a slightly offset neck. Tall Wavy Vase: The anchor of the set, standing 210 mm tall with crisp vertical ribs and a gentle 45-degree rotation. Asymmetric Curved Vase: A sweeping swan-like profile that leans dynamically off-center with a reverse twist. Print Notes: Designed to be printed in standard FDM standard mode (hollowed out with 2.5 mm walls, rather than vase mode) for maximum rigidity and heft. No supports required. Ensure your print bed is well leveled to anchor the large flat bases securely.

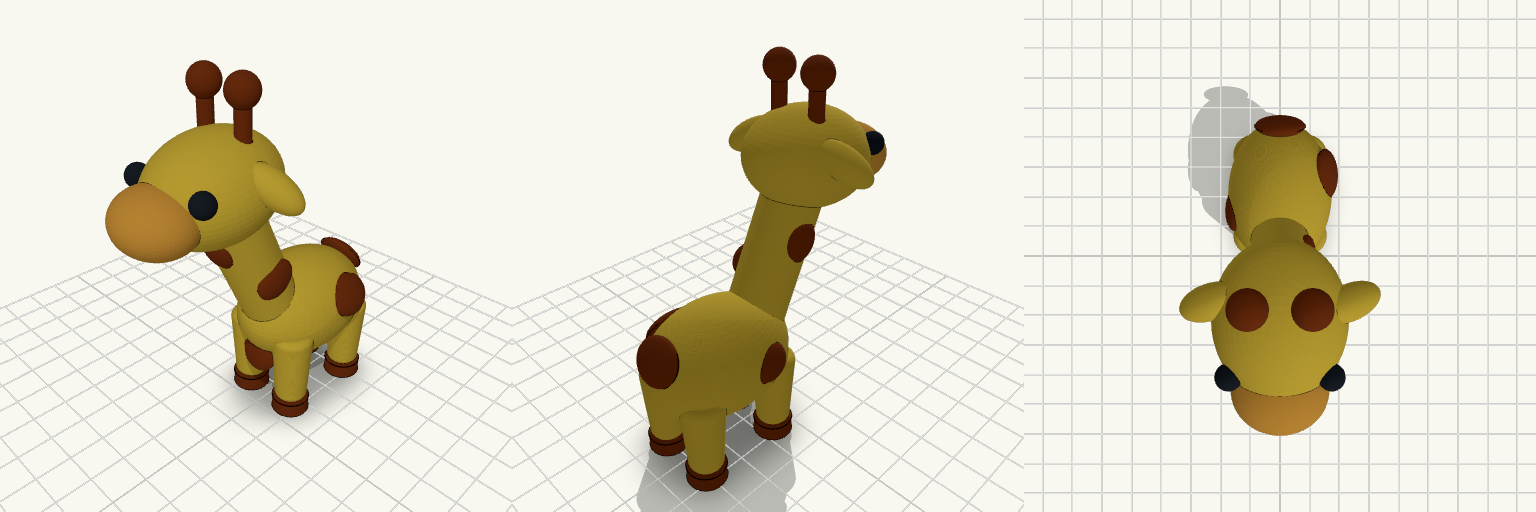

Cartoon Giraffe Figure
A modular, multi-part cartoon giraffe figure with exaggerated proportions. Designed for easy remixing: the body parts are built from basic geometries, meaning you can easily swap the spheres for sharper polyhedrons if you want a low-poly look, or adjust the simple translation coordinates to change the giraffe's neck angle and stance. Remixing Parameters Leg Height: Currently set to 22mm length with a taper from 9mm to 16mm. Neck Angle: Set to a 25-degree pitch, making it easy to raise or lower the head. Spot Placement: Arranged radially; you can scale or duplicate them to increase coverage.
Tapered Planter with Drainage
A classic tapered planter pot designed for small indoor plants. The base features a central drainage hole surrounded by a ring of six additional holes to prevent waterlogging and ensure healthy root systems. A slightly thickened rim provides structural rigidity and a clean visual finish. Design specifications: 80 mm top diameter tapering to a 60 mm base 70 mm overall height with 2 mm wall thickness 7 integrated drainage holes (6 mm diameter each)
