Linked 20mm Compliant Clips
Created today
Description

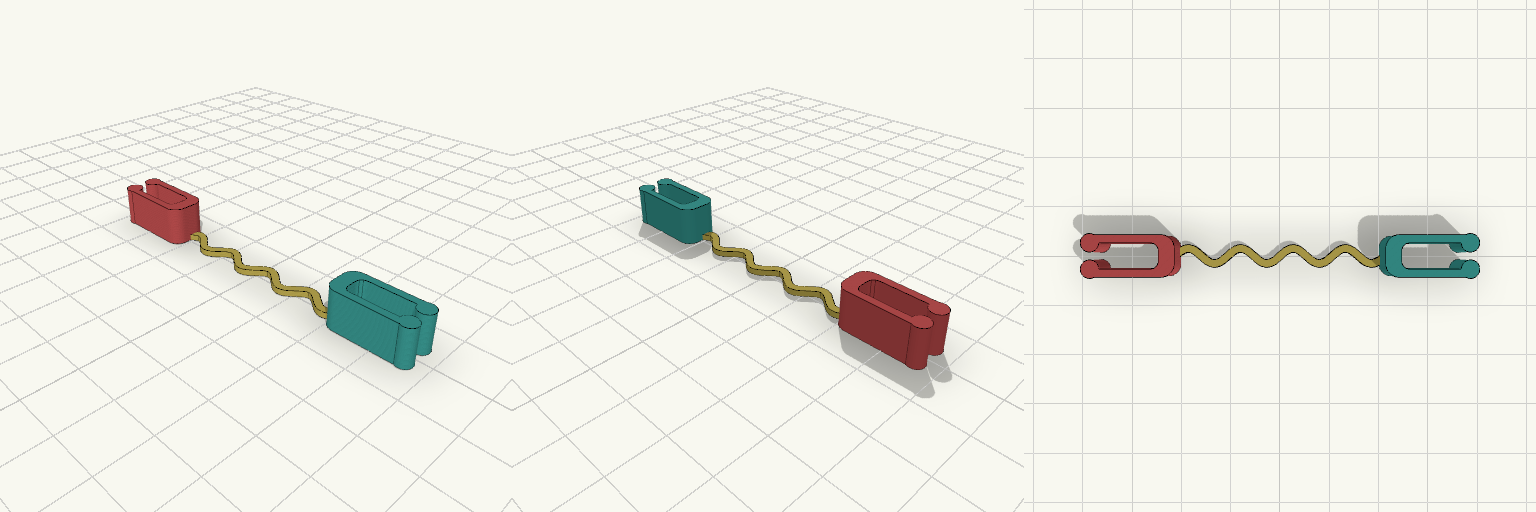

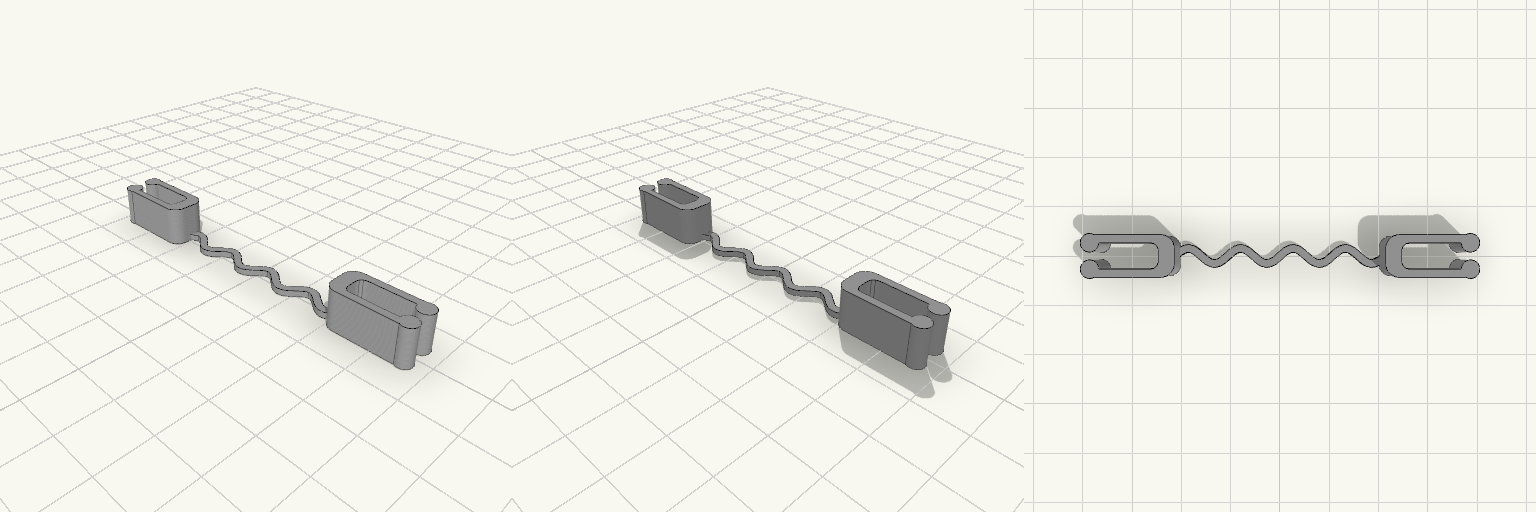

A pair of opposed 20mm compliant U-clips joined by a 40mm flexible meander strap. The part prints flat as a single monolithic body, using the thin 1.2mm wavy cord as a flexible tether and the thicker clip walls as rigid springs.
- Overall Footprint: 80mm long x 8mm wide x 8mm tall
- Clip Tolerance: 1.5mm resting gap, narrowing to 1mm at the front pinch points
- Tether Geometry: 1.5mm continuous meander, 40mm span
- Print Strategy: Prints flat on the bed; no supports required
