Monolithic Mirrored Roof Bridge
Created today
Description
A custom monolithic spanning piece built for standard interconnecting block systems. It features two continuous 26-stud curved roof sections (matching a 15068 profile) separated by a sunken two-stud central channel.
- The central channel is dropped by one standard plate height (3.2 mm), allowing the next layer of parts to sit flush below the curve peaks.
- The underside features a full 6x26 cavity equipped with 125 interlocking tubes.
- Integrated structural cross-ribs connect the entire undercarriage, providing genuine rigidity and ensuring a tight clutch across a massive 208 mm span.

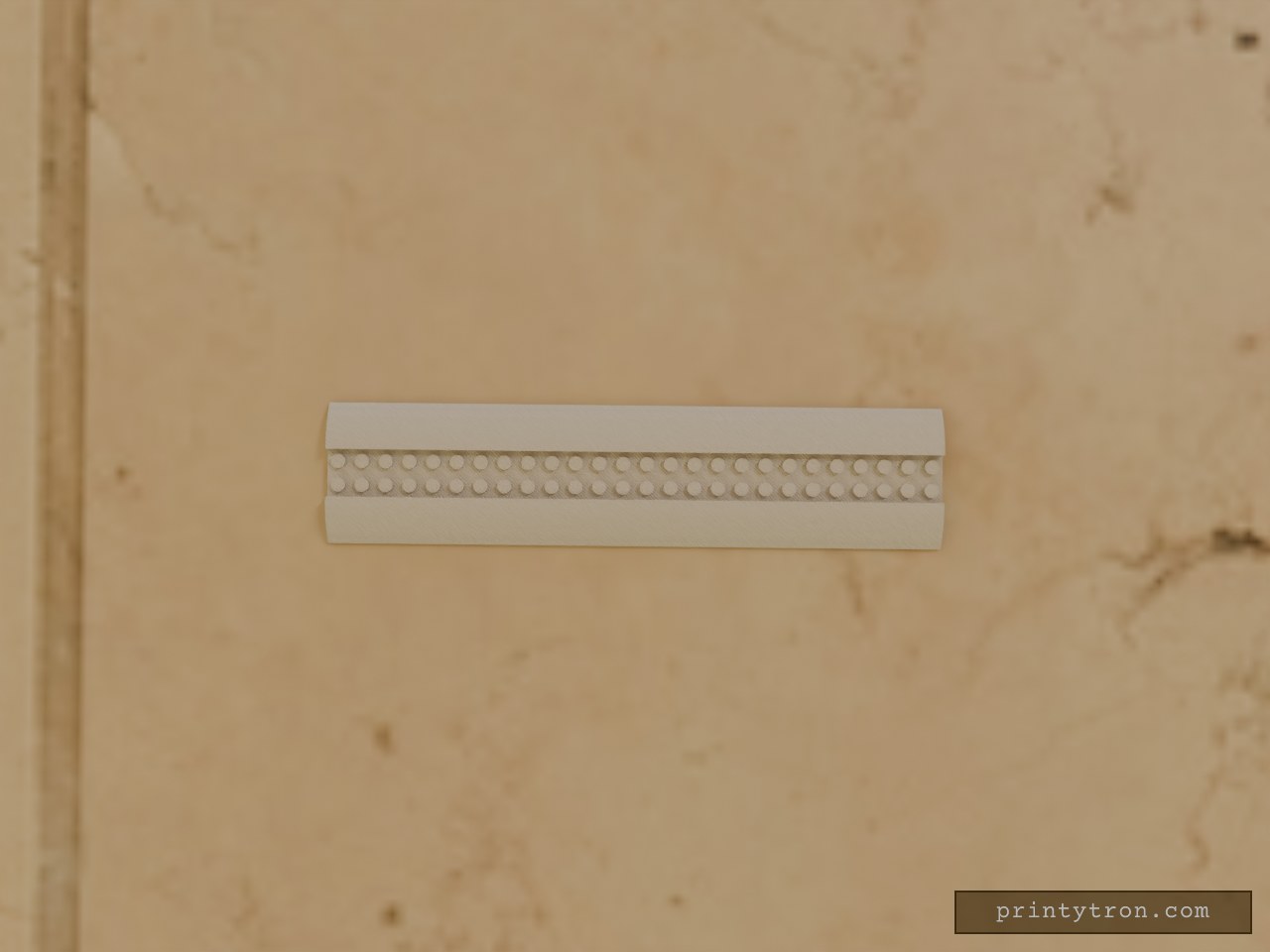

Photos

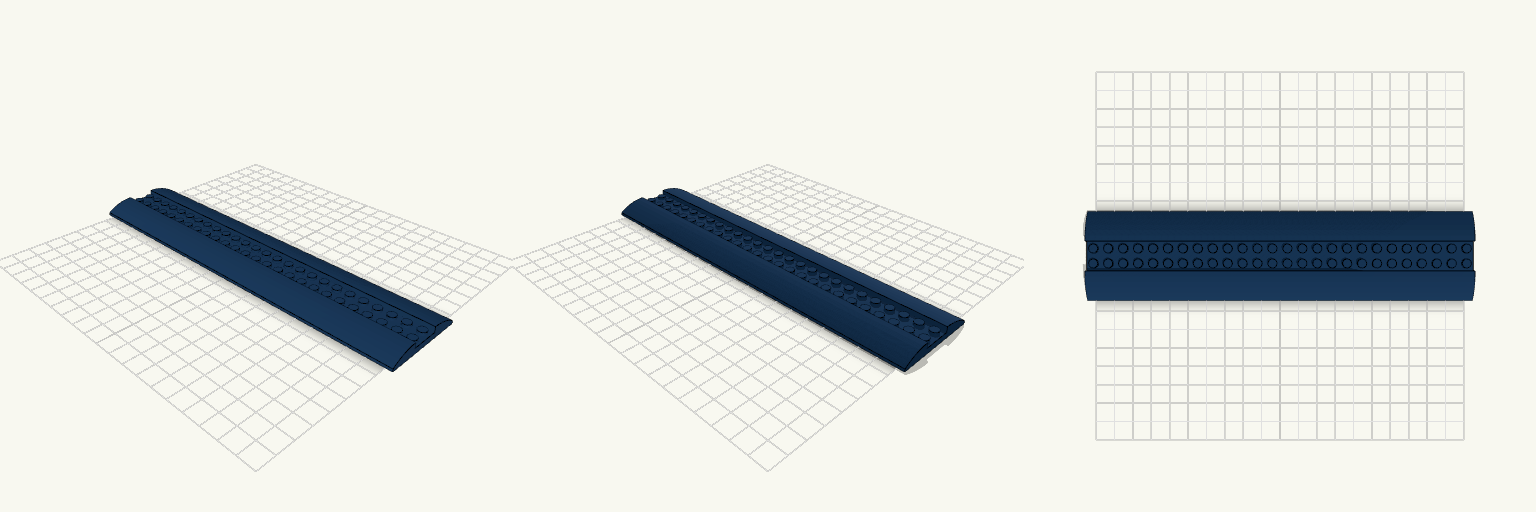

Technical views
More like this
Explore more in Automotive, RC & Hobby →
Monolithic Mirrored Roof Bridge
A custom monolithic spanning piece built for standard interconnecting block systems. It features two continuous 26-stud curved roof sections (matching a 15068 profile) separated by a sunken two-stud central channel. The central channel is dropped by one standard plate height (3.2 mm), allowing the next layer of parts to sit flush below the curve peaks. The underside features a full 6x26 cavity equipped with 125 interlocking tubes. Integrated structural cross-ribs connect the entire undercarriage, providing genuine rigidity and ensuring a tight clutch across a massive 208 mm span.

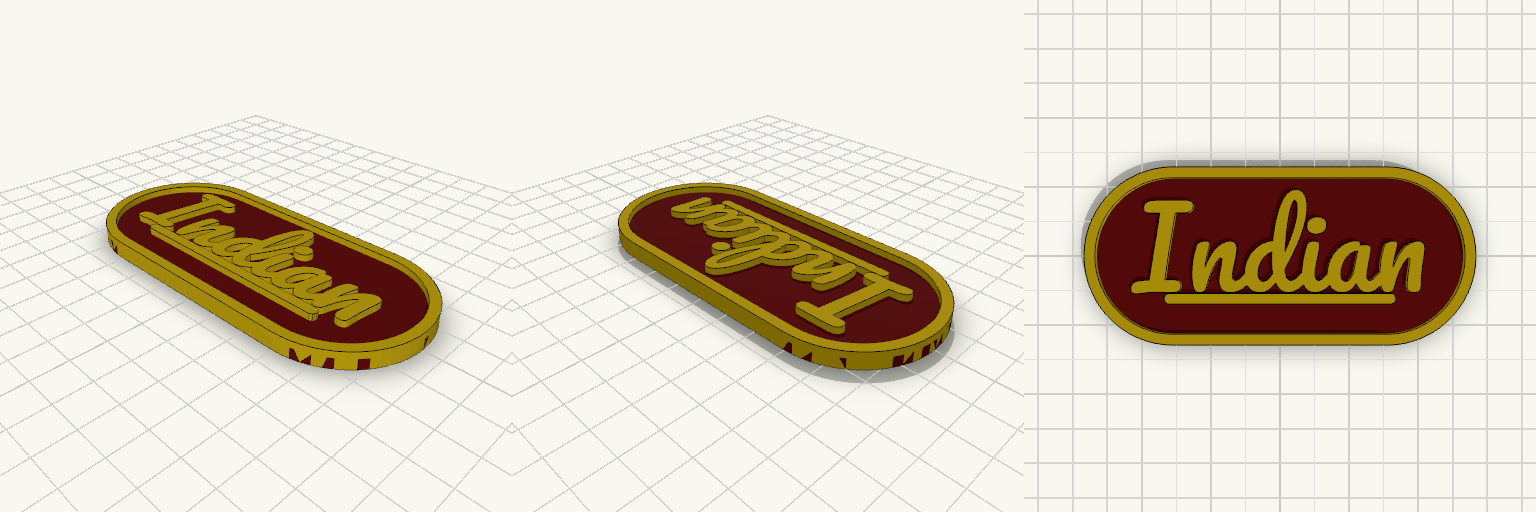

Motorcycle Script Logo Plate
