Motorized Clamshell Medication Box
Created 11 days ago
Description
A clean, professional enclosure for a motorized medication reminder.
The enclosure is split into two zones: a full-height front bay for electronics (ESP32, LCD, RTC, and battery), and a clamshell medicine compartment in the rear.
- Clamshell Box: The medicine bay splits exactly in half, providing deep trays in both the base and the lid.
- Electronics Integration: Dedicated cutouts for a 16x2 LCD, LEDs, a buzzer, switch, and side Type-C port.
- Motorized Hinge: Integrated M3 hinge knuckles and servo mount designed for an SG90.
- No Supports: All parts print flat on the bed.
Images
More like this
Explore more in Storage & Organization →
Caja Secreta con Llave Clásica
Una caja fuerte impresa en 3D que esconde su apertura a plena vista. En lugar del típico tirador, la tapa se asienta completamente a ras y requiere una llave física estilo tradicional para desenroscarla. El interior está optimizado con un techo cónico, por lo que imprime limpio sin necesidad de soportes. Características del montaje Impresión sin soportes: La cámara y la rosca se imprimen directo en la base. Llave dentada: Perfil plano tipo casa con agujero para llevarla en el llavero. Seguridad visual: La tapa a ras evita poder girarla con los dedos.
Tokens 3d print
A 3D-printable card dispenser built for standard playing cards. The stack sits vertically, and a narrow 0.8 mm slot at the bottom front lets exactly one card pass through at a time, stripping off any cards that try to follow it. Features a sliding track cutout in the floor for your thumb, and rests on 25 mm legs so you can pull a card without lifting the box off the table. A friction-fit lid keeps the rest of the deck secure. Holds one standard 40 mm stack of cards Bottom-dispensing slot (one card at a time) 25 mm elevated base for table-top access No supports required
Distributeur de Gommettes Sport Tir
Boîte de distribution verticale dimensionnée sur mesure pour accueillir librement un rouleau de gommettes de 98 mm. Le rouleau repose par gravité, distribuant les autocollants via une fente frontale affleurante. Détails de conception Fente ajustée : 18 mm de large pour guider précisément un rouleau de 16 mm. Typographie en relief : Inscription latérale robuste dépassant de 0,7 mm. Mécanisme sans axe : Le rouleau tourne naturellement contre les parois internes. Couvercle à glissière : Insertion par l'arrière avec un ergot de verrouillage tactile et une prise en relief.

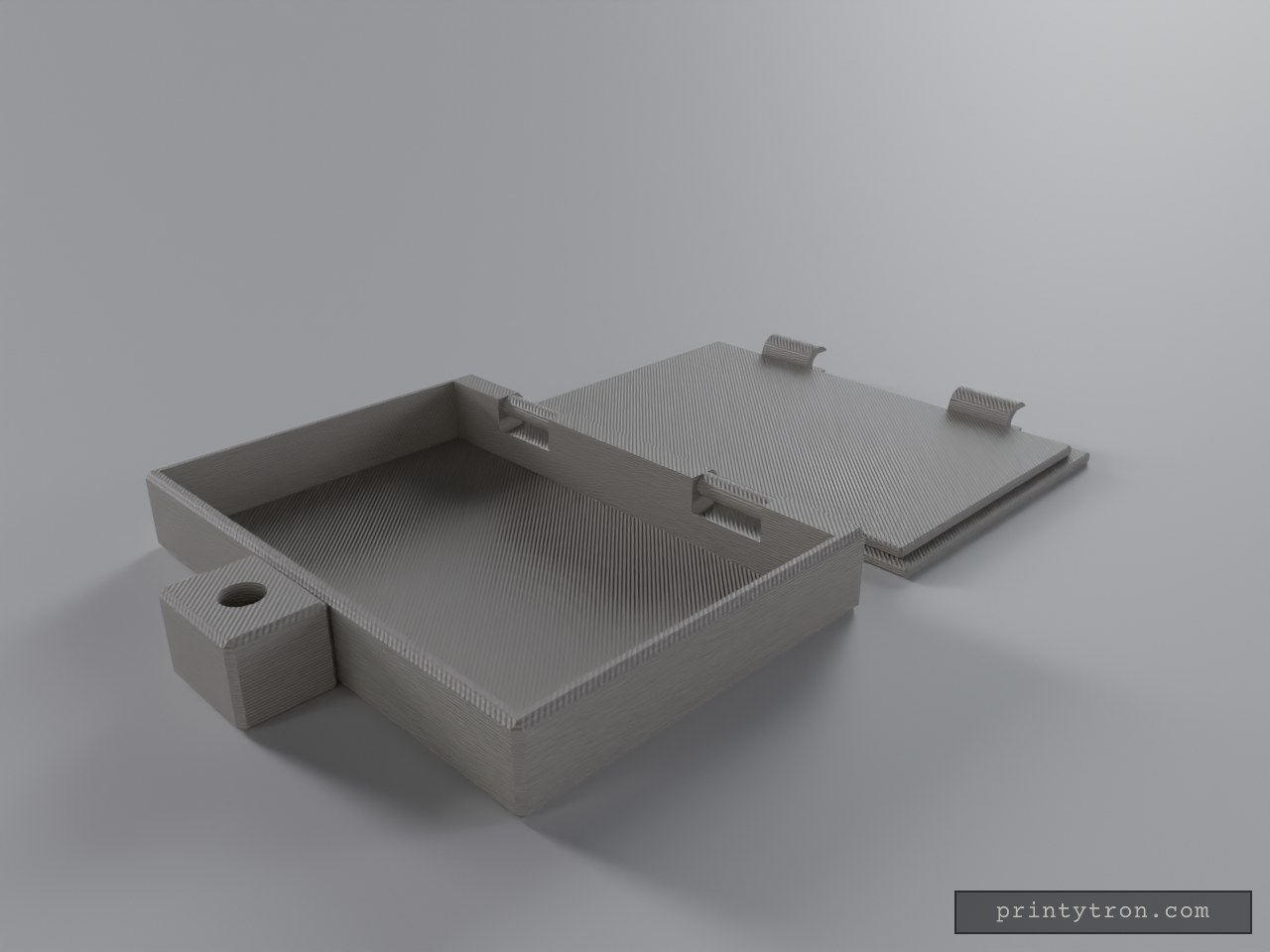

Armored Clamshell Card Lockbox
