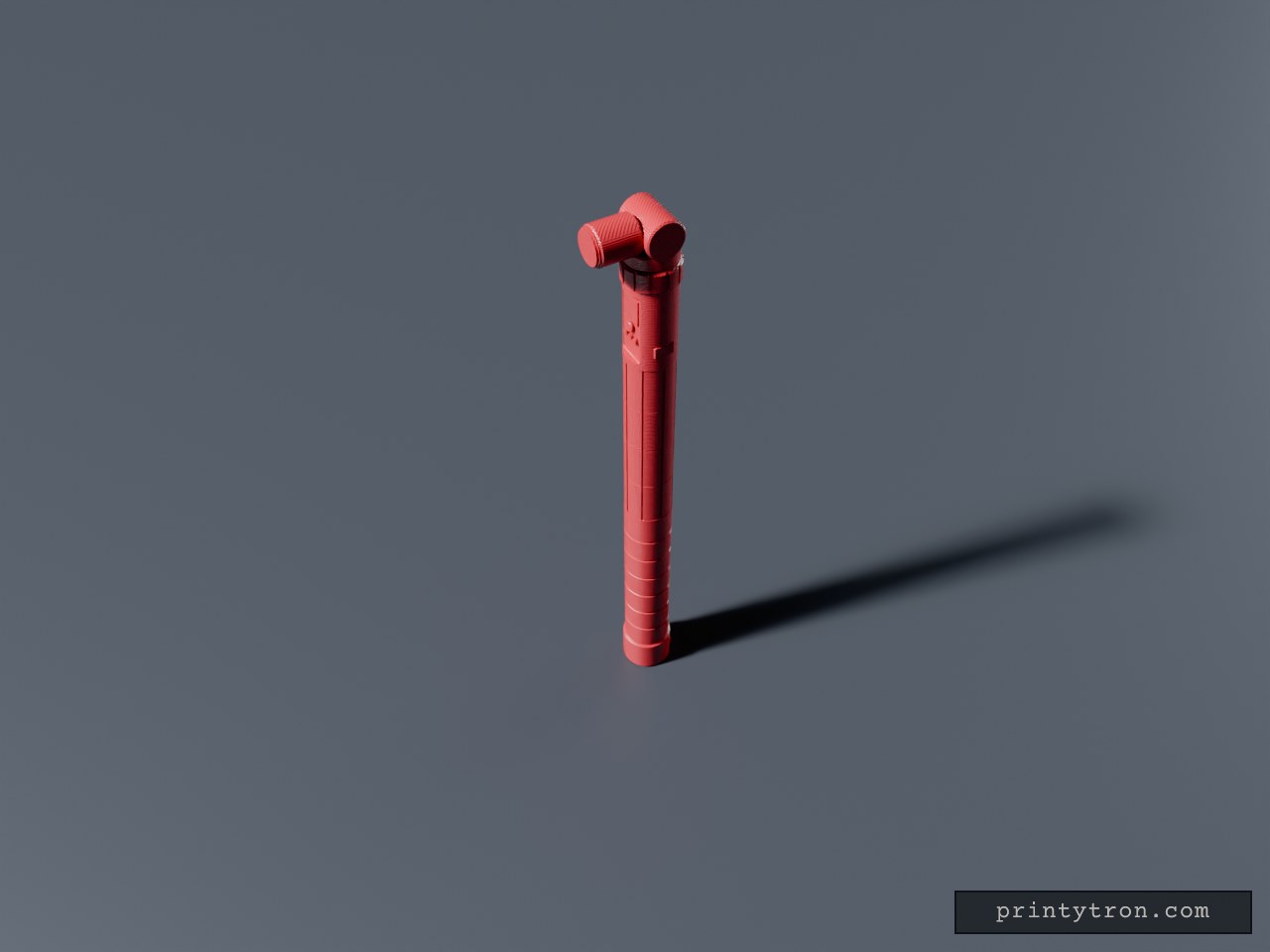

Multi-Purpose Safety Rod

Made by a Guest

Created 1 months ago

Workshop & Toolssafety-toolbatonflashlightmulti-toolvoltage-testerergonomic-grip
Remix this model →

Description

Juggling a flashlight, a stick, and a voltage tester in a dark, damp crawlspace is a great way to drop all three. This consolidates them into a single rugged baton. It packs a directional work light, an integrated AC voltage detector ring, and a heavy-duty grip so you aren't poking blindly around live wires or unexpected wildlife.

Specs & Print Notes

  • Dimensions: ~430mm long, 38mm maximum diameter.
  • Sensors: The bright red upper collar houses the AC detection ring, kept safely away from the primary grip.
  • Power: The midsection is designed to house a 360-degree wrap of flexible solar cells.
  • Printing: Due to its length, it is best split into segments along the structural joints for standard 200mm Z-axis beds, joining the pieces with internal dowels or threaded inserts.

Photos

Technical views
