Nautical Shield Speaker Guard
Created today
Description
This rugged radial shield evokes the heavy-duty machinery of an old trawler, ready to protect delicate marine audio gear from stray knees, errant ropes, and the open elements. The design features a raised central dome to house protruding tweeters, flanked by deep structural spokes that provide rigid impact resistance across a 6.5-inch footprint.
Design Notes
- Clearance: Central raised hull provides 12mm of breathing room for integrated tweeters.
- Mounting: Four 45-degree offset countersunk holes drop right onto a 155mm pitch circle.
- Structure: Two internal concentric rings tie the radial spokes together to prevent flexing under pressure.
- Printability: Lays flat on the build plate; print in ASA or PETG for outdoor UV and temperature resistance.
Images
More like this
Explore more in Automotive, RC & Hobby →
Space Command Console Toy
The keyboard belongs to you. The TV remote belongs to you. The oven dials are strictly off limits. But they still want to press buttons, and everything they reach for has a consequence. This console solves that. It’s a chunky, slanted control panel built to take a hammering. The throttle is a captive slider that prints fully in place—no assembly, just crack it loose and it glides. The giant red and green buttons sit on thin printed hinges, giving them enough flex to feel like a real press without needing actual springs or hardware. The dials and radar screen are solid topographic features that add tactile feedback without weak points. Printing Notes Dimensions: The base fits squarely on a 180x130mm footprint. Print-in-Place Clearance: The slider runs in an internal T-slot with a generous 0.5mm clearance on all sides, making it easy to free up on almost any FDM machine. Orientation: Designed to sit entirely flat on the build plate. The 13-degree slope of the panel is built into the geometry, so the internal bridges and tracks print parallel to the bed. Settings: Standard 0.2mm layer heights work beautifully. Three perimeters recommended to keep the compliant button hinges tough.

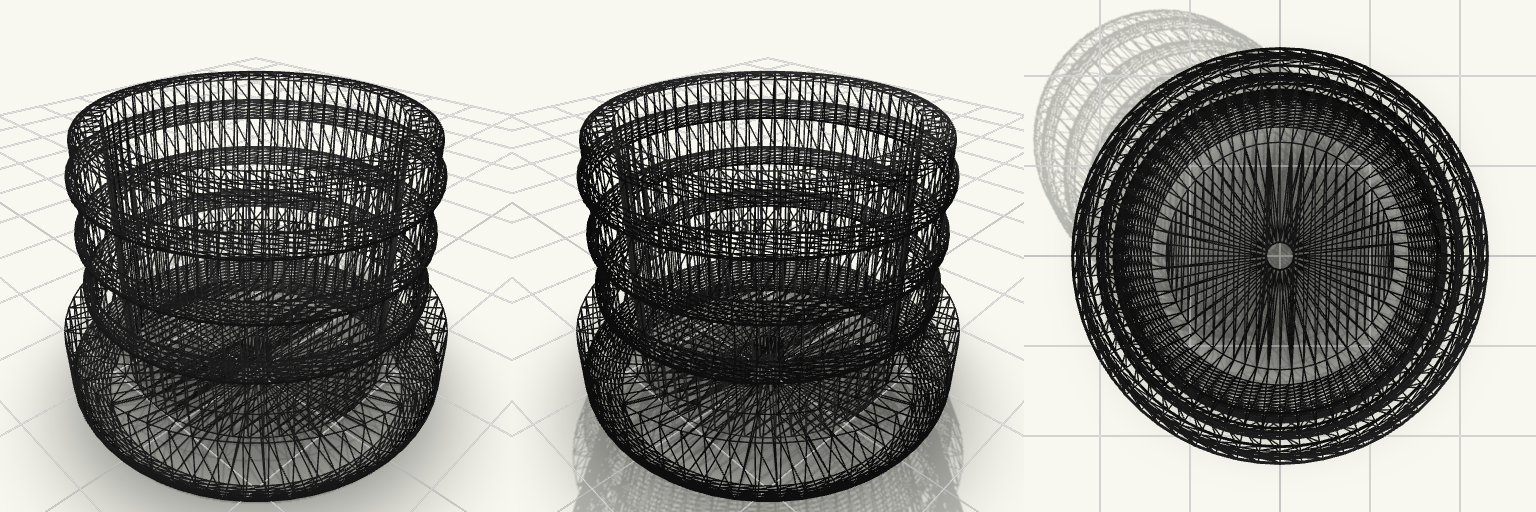

Brompton Seatpost Bumper Cap
