Nimbus — 100mm Quad Frame
Created today
Description
A scaled-up quadcopter frame designed for 7mm coreless motors. Originally modeled for a compact layout, the arms are now extended to give a full 100x100mm outer footprint while retaining the 25.5mm whoop flight controller mounting pattern.
Features
- Friction-fit Mounts: Sized for 7mm brushed motors, with an integrated wire routing slit.
- Underslung Tray: Integrated bottom mount for a standard 1S battery.
- Lightweight Arms: Hull-cut arm profiles that parametrically scaled up to span the new 100mm stance without adding unnecessary mass.
Images
More like this
Explore more in Automotive, RC & Hobby →
Solid Core Quadcopter Frame
A solid unibody quadcopter frame designed to hold four micro drone motors. Features: Solid central chassis block Swept structural arms Motor mounts with clearance for 8.5mm motors Unified 8mm frame thickness with 7.5mm arms
12
Large vehicle prints warp, lift off the bed, or take days to finish. Splitting the chassis into smaller, hollowed quadrants stops the curling and lets the pieces finish quickly. This is the left-side foundation. Fit Details Overall Dimensions: 140 mm × 70 mm × 12 mm Wall Thickness: 3 mm perimeters and floors for rigid bridging Mating Pins: 5 mm diameter pins into 5.3 mm receiver holes for a clean press-fit Panel Mounts: Four 6.3 mm top sockets align the upper body elements
Faceted SimHub Button Box
A clean, industrial-styled button box designed for sim racing rigs, controlling Wind, Pedals, and Bass Shakers via SimHub. The enclosure uses a faceted, dodecahedron-inspired geometry to eliminate flat overhangs and keep the footprint small. The front panel cuts a heavy 45° chamfer, hiding the seam where it snaps into the rear body. Features internal snap-fit prongs and receiver towers — no visible hardware required. Base dimensions reduce sharply toward the mount to avoid interfering with wheelbases or monitor arms. Built with clearances for standard Cherry MX switches and a toggle switch cut out for the top left.

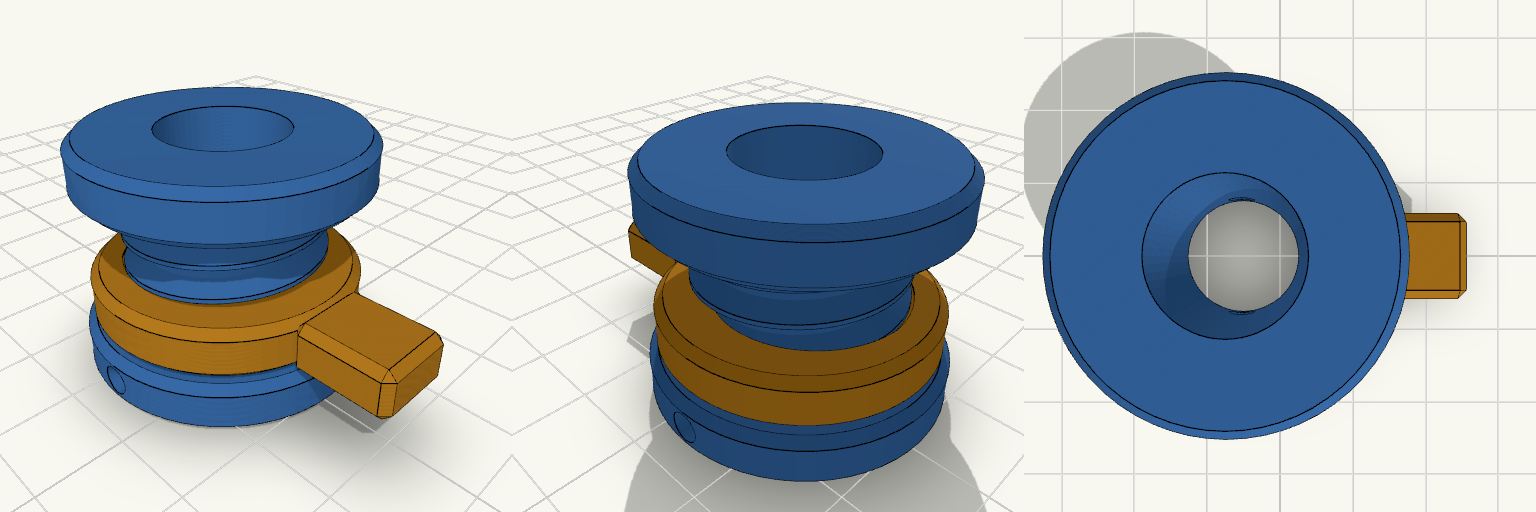

15mm Shaft 900-Degree Stopper
A compact, print-in-place traveling nut mechanism designed to mount onto a 15mm diameter shaft. This stopper locks rotation exactly at 900 degrees (2.5 turns) in either direction. The inner blue sleeve slides over your 15mm shaft and secures with a standard M3 bolt and captive nut, while the outer orange traveler moves up and down the internal threads as the wheel turns. Fitment and Constraints Host Shaft: 15mm diameter. The bore is modeled at 15.2mm to allow for a snug fit. Rotation Limit: Exactly 900 degrees (2.5 turns), enforced by rigid top and bottom flanges. Assembly: Print-in-place. The mechanism prints fully assembled with 0.4mm radial clearance in the threads, permanently capturing the traveler nut between the outer flanges so it cannot back off. Installation Requirements: You must have a fixed block or housing wall nearby for the traveler nut's side tab to ride against; this prevents the nut from simply spinning with the shaft and forces it to travel linearly.

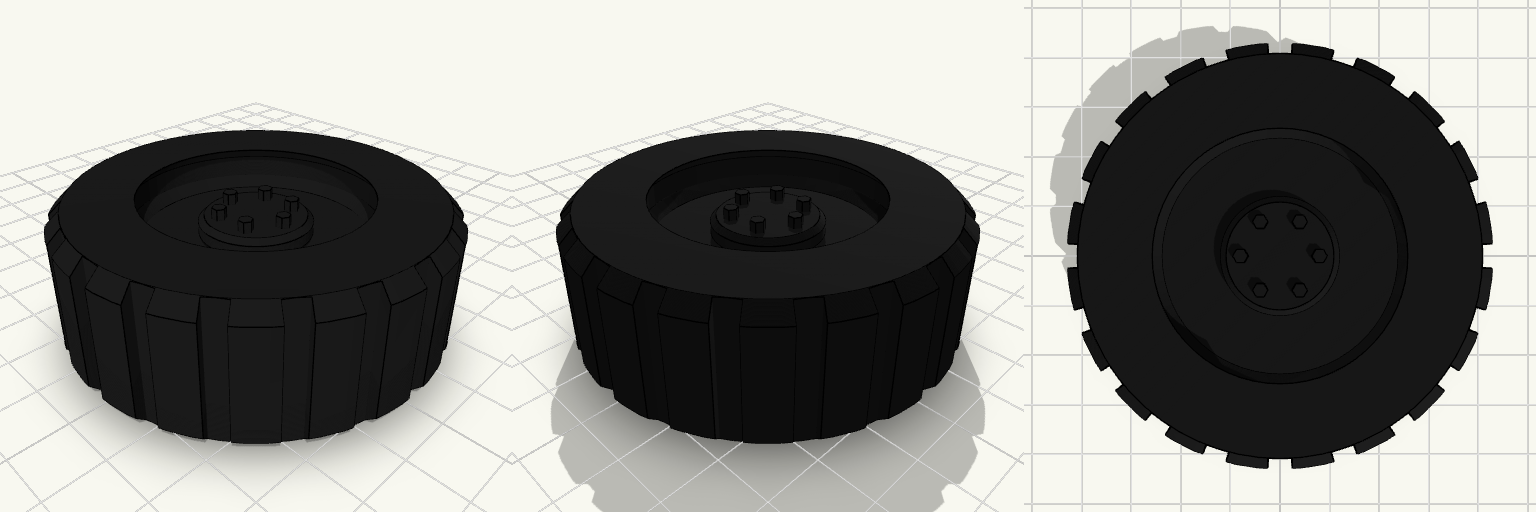

12mm Hex Parade Truck Wheel
