Numbered SD Card Organizer Tray
Created 1 months ago
Description
Memory cards scatter across desks and get mixed up between cameras the moment you set them down. This flat organizer tray pins down eight standard SD cards and eight microSD cards in numbered slots, mapping exactly which card belongs to which camera body. Deep semicircular thumb scoops break the flush fit, letting you tilt a card out immediately instead of prying at the edges with a fingernail.
Slot Fitment
- Standard SD: 33 x 25 mm footprint, 2.5 mm deep.
- MicroSD: 12 x 16 mm footprint, 1.5 mm deep.
- Print settings: Print flat on the bed. No supports required. The embossed numbers sit 0.6 mm high, resolving cleanly at a standard 0.2 mm layer height.
Images
More like this
Explore more in Desk & Tech →
Pi 3 case
A bare Raspberry Pi 3 is so light that hooking up a standard HDMI cable instantly tips it off the desk. This case locks the board into a heavy enclosure and uses snap-on outer corner bumpers to give it some actual grip, so the board stays exactly where you put it. The port cutouts are oversized enough to accept real molded cables without them binding against the shell. Bed Fit: Everything is packed tightly to fit in a single run on a 180×180 mm print bed. Printing: All pieces sit flat on the plate. No supports required anywhere. Clearances: Built with a 0.4 mm gap around the board and lid joint so it slots together cleanly.

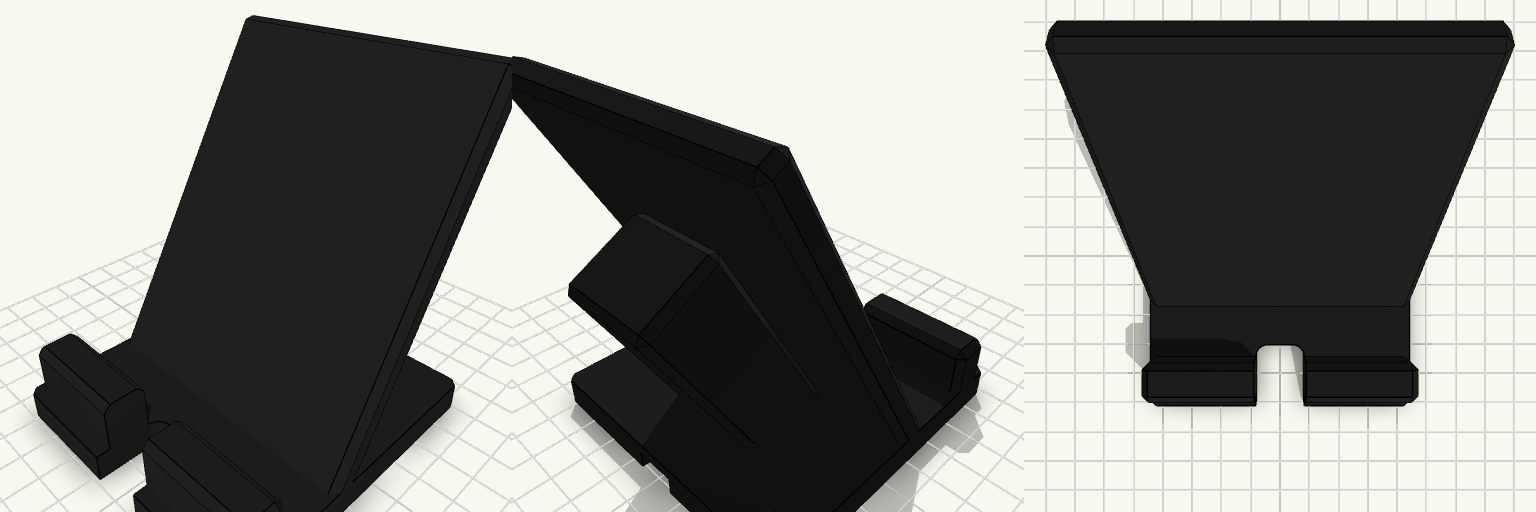

A-Frame Mobile Stand
