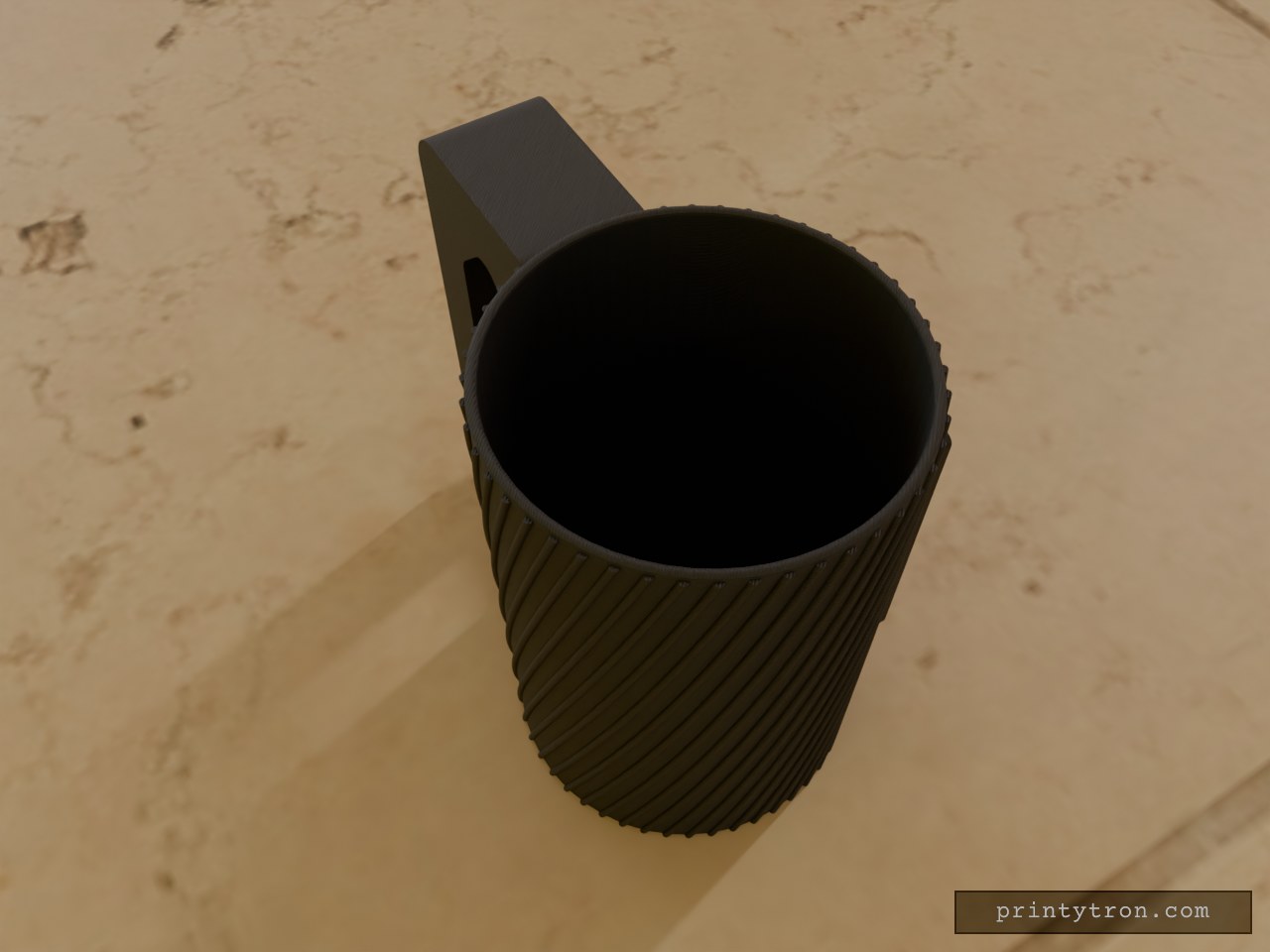

Obsidian — Ribbed Can Cooler with Handle
Created yesterday
Description
Obsidian is a matte-black-ready can cooler for standard 330 ml cans, with a reinforced side handle, diagonal grip ribs and a flat front panel reserved for names or logos. The handle opening has a peaked top so it prints upright without supports.
Dimensions
- Inside diameter: 68 mm
- Inside height: 105 mm (above a 3 mm base)
- Wall: 2 mm, base: 3 mm
- Overall height: 108 mm; footprint about 115 × 74 mm including handle and panel
Features
- Diagonal ribs outside, perfectly smooth bore inside
- Rounded top rim
- Broad, rounded handle, 24 mm wide
- Flat front panel, 40 × 66 mm
Print notes
- Print upright, base on the plate, PETG, 0.4 mm nozzle, 0.2 mm layers
- No supports expected; fits a 180 mm build volume
Photos
Technical views
