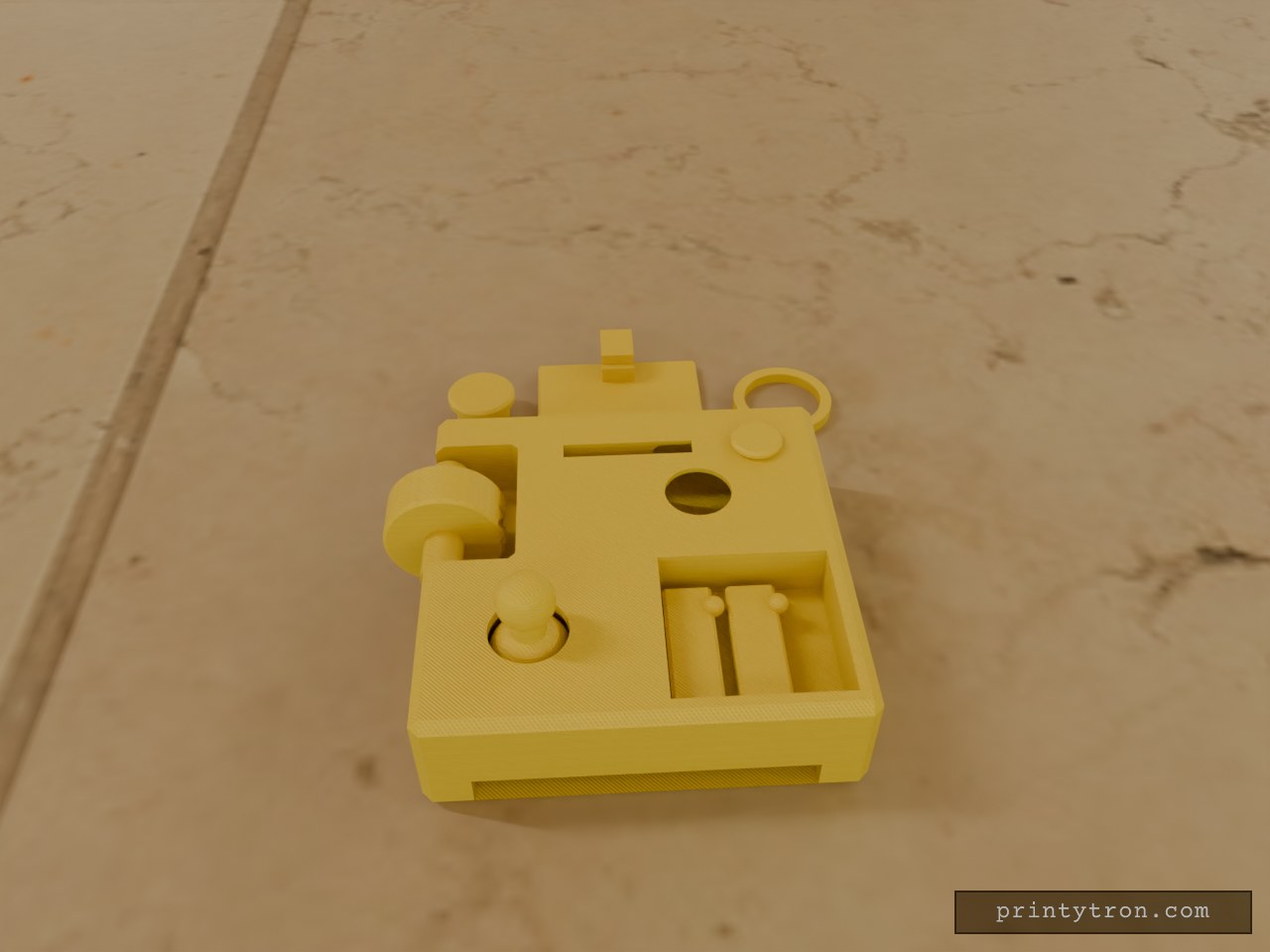

Pocket Multi-Fidget Block
Created today
Description
What it's for
A dense, multi-function pocket fidget block that packs six tactile mechanisms into a single footprint. Designed to be printed entirely flat without supports, it features a print-in-place captive joystick, a spinning side-wheel, and two cantilevered clicky buttons.
The front edge houses a deep hidden storage slot containing a flat-packed basketball kit. The backboard (complete with a rubber band hook on the rear) slots into the top of the block, and the rim snaps firmly into the backboard.
Finally, one quadrant contains an internal hollow tank cavity with a threaded fill plug and a side spout. The top wall of the tank is intentionally thin (0.8mm) with a tactile button pad—pressing it lightly flexes the roof, simulating a squirt-pump mechanism. (While functional in TPU, printing in PLA serves as a satisfying, slightly yielding fidget button).
Dimensions
- Base Block: 60 × 60 × 18 mm.
- Storage Slot: 46 mm wide, 58 mm deep, 4.5 mm tall.
- Backboard: 30 × 25 mm (excluding base peg).
- Rim: 18 mm outer diameter.
Assembly
- Print Settings: No supports required. Ensure your printer is dialed in for 0.4mm print-in-place tolerances so the joystick and spinner break free smoothly.
- Hoop: Slide the backboard out of the front slot, insert the peg into the slot on the top deck, and press the rim peg into the backboard hole.
- Tank: The included friction plug seals the top fill hole.
