Railing 2 m Long, 1.5 m High
Created today
Description
A railing panel with the dimensions written on every part, so nobody has to dig out a tape measure to check which bar is which length.
- Overall: 2000 mm long, 1500 mm high, 50 mm deep
- Posts: 50 x 50 mm, 1500 mm tall, labelled with height
- Top and bottom rails: 1900 mm between posts, 80 mm tall
- Bars: 12 vertical bars, 20 x 20 mm, 1260 mm long, 150 mm centre-to-centre
- Labels: raised 1 mm text on the front face (top rail length, 150 mm gap marks, bar lengths, post heights)
- Printing: designed at full size, so scale down or split into sections for a normal printer
Images
More like this
Explore more in Home & Fixtures →
Wall-Mounted Bedside Floating Shelf
What it's for A sleek floating shelf for beside the bed at about head height, sized for an ornament or a small potted plant. A back plate with four countersunk screw holes fixes it to the wall, and two triangular brackets support the top. The design is symmetrical, so printing two gives a matching pair for each side of the bed. Dimensions Shelf top: 200 × 120 × 12 mm, rounded edges Back plate: 170 mm wide, 6 mm thick, 70 mm tall including the shelf Screw holes: four, 4.5 mm shank with 9 mm countersink, set 80 mm apart, the upper pair just below the shelf Brackets: two, 6 mm thick, at X ±70 mm Print notes Prints with the top face on the bed, with no supports needed. Use wall plugs suited to your wall type and countersunk screws with heads up to 9 mm. Remix ideas Narrow the shelf for tighter spaces. Add a small front lip to keep ornaments from sliding off. Add a cable notch for a bedside lamp.
Straight Cylindrical Pipe
A straight cylindrical pipe with a uniform wall thickness, designed for fluid transfer, structure, or sleeving. Inner Diameter: 60 mm Outer Diameter: 64 mm Wall Thickness: 2 mm Overall Length: 60 mm
Wide Hook With Tall Front Lip
A small wall-side hook, 20 mm wide and 15 mm deep, with a 20 mm back plate, a flat 3 mm arm and a 50 mm upturned front lip. Remix hooks Width (20 mm): the one value shared by the plate, arm and lip. Widen it for heavier loads or narrow it for tight spots. Lip height (50 mm): lower it to around 10–15 mm for a simple catch, or keep it tall to hold flat items upright. Back plate height (20 mm): raise it to leave room for a screw hole or two. Arm thickness (3 mm): thicken it if the hook will carry weight. Pairs well with countersunk screw holes in the back plate or double-sided mounting tape.

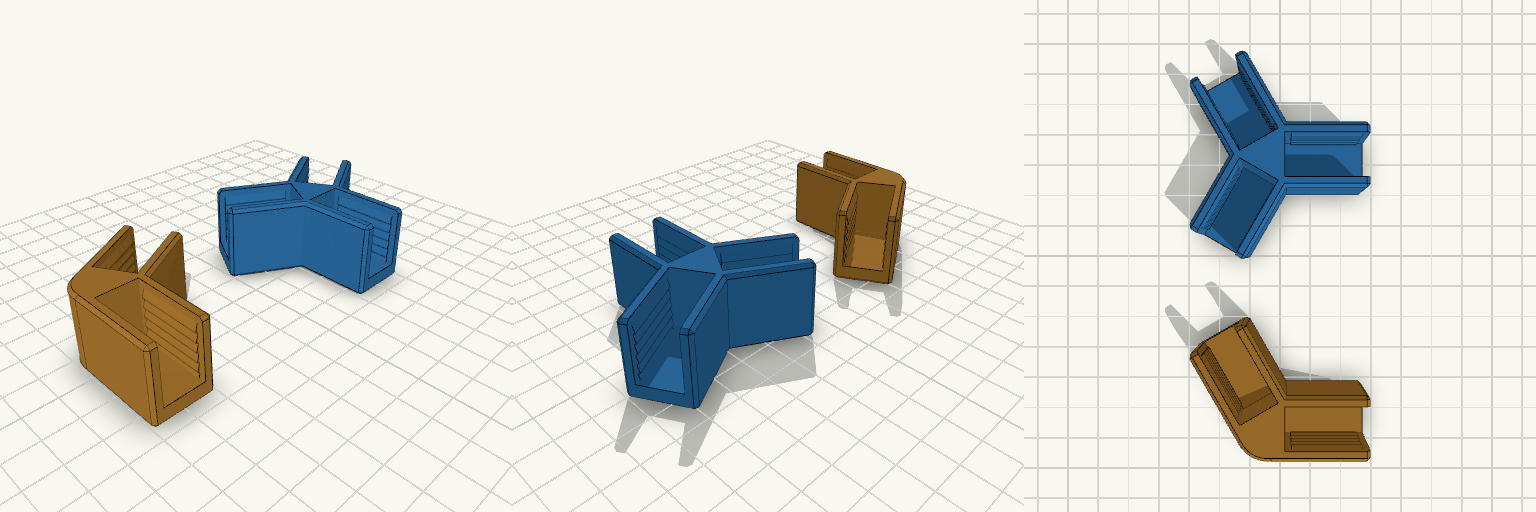

HexGrip — Square-Cut Plywood Hex Clips
