Round Water Bottle With Cap
Created today
Description
A round water bottle with a tapered shoulder, a 24 mm mouth and a separate slip-on cap. Printed as a hollow vessel with 3 mm walls.
Remix hooks
- Body diameter and height: 70 mm wide, 170 mm straight section. Change these to resize capacity.
- Wall thickness: 3 mm. Raise it for watertight prints in PLA, or lower it with vase mode in mind.
- Neck: 24 mm bore, 30 mm outside. Swap the plain cap for a threaded one using a threaded rod and nut.
- Pairs with: a silicone gasket, a carry loop through the neck ring, or a sleeve that fits the 70 mm body.
The cap is a friction fit and not a sealed closure. Test before filling.
Photos
Technical views
More like this
Explore more in Kitchen & Bathroom →
Galaxy Cap & Pets
A standalone pop-top can cover designed for easy swapping of customizable 3D-printable pets. Hooks for Remixing The Peg System: The mounting peg on the cap is a standard 3.8 mm cylinder, sitting slightly toward the back edge. Any custom object with a matching 4.2 mm socket will drop right on. Skull Profile: The flat skull on the cap is an exact scaled-down copy of the original 3D geometry. Expansion: Want to add more utility? You could stretch the cap base horizontally to house three or four pets simultaneously, or angle the peg so the figure faces upward when the can is open.
HexCatch — Geometric Coaster

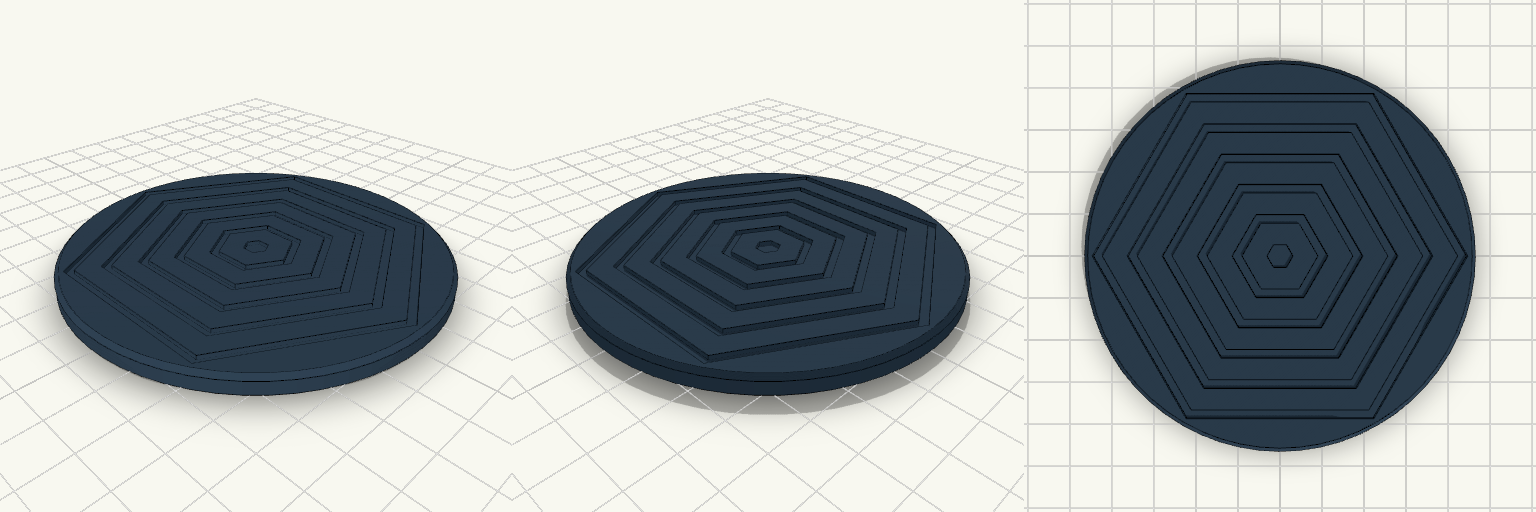

Introducing HexCatch, a 90mm circular coaster engineered to keep surfaces perfectly dry. The surface features a recessed, concentric hexagon pattern that acts as a condensation trap, drawing moisture away from the base of glassware before it can pool and run onto the table. \n\n## Dimensions\n Overall footprint: 90mm diameter\n Thickness: 5mm \n Channels: 2mm wide and 1mm deep\n\n## Features\n Integrated drip reservoir: Geometric recesses hold condensation safely off the table.\n Modern profile: A clean circular exterior contrasts with the sharp hexagonal interior.\n Chamfered base: Slight angle on the bottom edge makes it easy to lift from flat surfaces.
