Sliding Tray With Lid Handle
Created today
Description
A 78 x 47 x 125 mm vertical tray that slides into a box, topped by a lid that doubles as a pull handle. Four compartments, lowered front lips and a grooved finger tab make loading and pulling easy.
Remix hooks
- Wall and floor: 1.2 mm walls, 1.8 mm floor. The floor absorbs the leftover height so the 56 mm lower row and 66 mm upper row fit the 125 mm total.
- Lip height: 6 mm front lips with a 22 mm round dip. Raise the lip for deeper pockets, or widen the dip for bigger fingers.
- Dividers: the vertical wall sits at 38 mm from the left, and the right side is split by a horizontal wall. Move either to resize the compartments.
- Ribs: 2 x 2 mm guide ribs on the side walls, full height. Change them to match the clearance of the box.
- Lid: 90 x 56 x 8 mm, flush at the back, with 45 degree chamfered underside edges and three 1 mm grooves on the 30 mm tab. Pairs with any box sized around the 82 mm tray.
Prints upright with no supports.
Images
More like this
Explore more in Storage & Organization →
Gaveta Vertical Mini APH Pocket
Uma gaveta vertical de bolso, no espírito de um canivete suíço de primeiros socorros: o puxador largo no topo é também a tampa, e puxá-lo para cima faz a bandeja subir pelas guias, expondo os itens. Notas de projeto Corpo 86 × 52 × 127 mm, parede de 1,6 mm, dois drenos de ø 3 mm e furo de ø 4 mm para cordão. Bandeja 78 × 47 × 125 mm com tampa de 90 × 56 × 8 mm, recorte de dedo e divisórias. Clipe em J de 40 mm, 2,6 mm de espessura, impresso deitado. Pensado para PETG, sem suportes. Versão simplificada: dentes de retenção, rabo-de-andorinha, berço do oxímetro e batente liberável ainda não modelados.

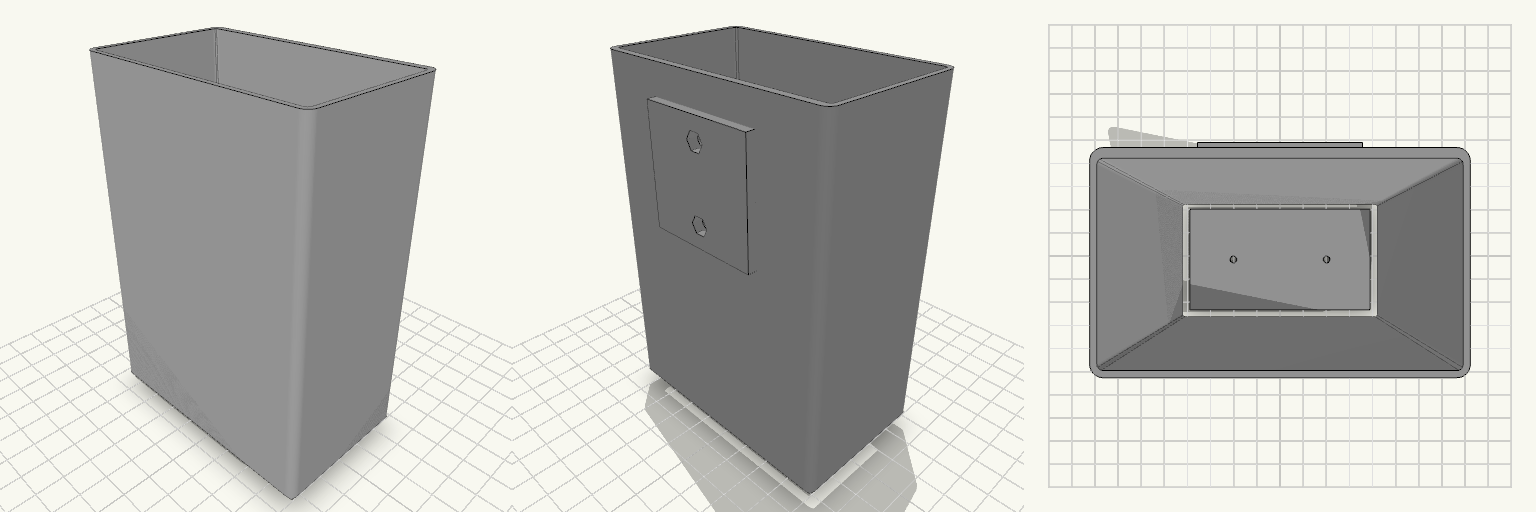

Drawer Sleeve Box With Mounting Pad
