Softflow — M22 Faucet Splash Diffuser
Created today
Description
Softflow is a screw-on splash diffuser for faucets with an M22x1 male outlet thread. The base is perforated with a staggered hex grid of small holes, breaking the flow into many fine streams for a softer, wider spray. A short open chamber between the thread and the perforated floor lets water spread across the whole hole pattern before it exits.
Features
- M22x1 female thread, 8 mm deep, with a beveled lead-in at the opening
- Staggered hex grid of 1.5 mm holes at 2.6 mm spacing, inside an 18 mm circle
- 3 mm perforated floor with a relief chamber above it
- Chamfered top and bottom edges on a round body
Dimensions
- Outer diameter: 28 mm
- Overall height: 16 mm
- Thread: M22 x 1 mm pitch, 8 mm engagement depth
- Floor thickness: 3 mm
Print notes
- Print with the perforated face down on the bed, opening facing up; no supports are needed.
- Thread fit has not been tested against a real faucet. If it binds, increase the thread clearance slightly.
- A fine layer height (0.12–0.16 mm) keeps the small holes and thread crisp.
- PETG or ASA suits wet, warm-water use better than PLA.
Images
More like this
Explore more in Kitchen & Bathroom →

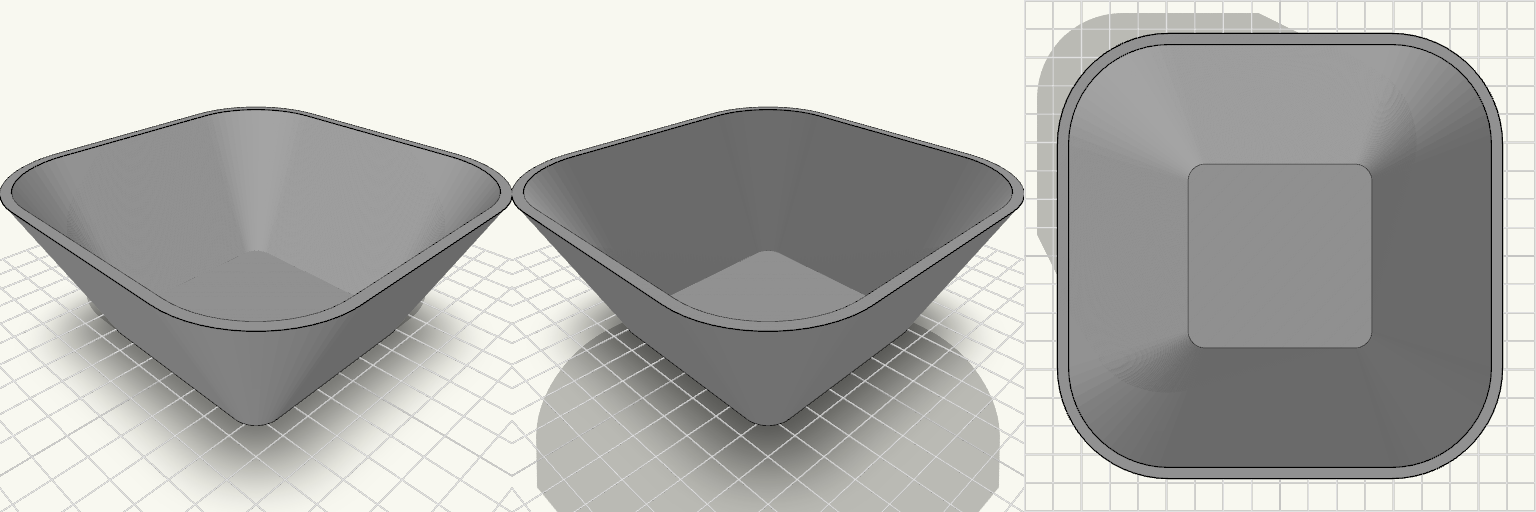

Square-Base Bowl That Stays Put
