Solid Core Quadcopter Frame
Created today
Description
A solid unibody quadcopter frame designed to hold four micro drone motors.
Features:
- Solid central chassis block
- Swept structural arms
- Motor mounts with clearance for 8.5mm motors
- Unified 8mm frame thickness with 7.5mm arms
Images
More like this
Explore more in Automotive, RC & Hobby →
12
Large vehicle prints warp, lift off the bed, or take days to finish. Splitting the chassis into smaller, hollowed quadrants stops the curling and lets the pieces finish quickly. This is the left-side foundation. Fit Details Overall Dimensions: 140 mm × 70 mm × 12 mm Wall Thickness: 3 mm perimeters and floors for rigid bridging Mating Pins: 5 mm diameter pins into 5.3 mm receiver holes for a clean press-fit Panel Mounts: Four 6.3 mm top sockets align the upper body elements
hello
A heavy-duty rear kicktail platform designed for the Escoone W6 electric scooter. Features a solid, uninterrupted core for maximum strength, adjustable bolt spacing for the 114.3mm factory mounts, and a steep ramp angle to lock in the rear foot during hard acceleration. 105mm bottom arch to clear the rear fender Solid center spine for FDM printability Recessed bolt mounts to keep the deck flat High-traction chevron cuts for grip
Custom Solid School Bus
A miniature school bus scaled to exactly 120 mm in overall length, proportioned realistically for print-in-place FDM printing. Features include recessed windows to preserve a watertight manifold body, integrated fenders, and robust side mirrors that won't snap when the supports pull away. Dedicated Sign Panels: Extruded flat blanks on the sides carry the requested school name on two clear lines. Exact Dimensional Fit: The front and rear bumpers are anchored dead on the 120 mm boundaries. Printability: The entire base is sliced flat at Z=0, guaranteeing solid bed adhesion without rafts.
BlockBus — Solid FDM Chassis
This is a heavy-duty, monolithic school bus model engineered specifically for FDM printers like the K1 Max. Instead of a fragile hollow shell, the body is a continuous solid block. The details — including the windows, grille, and doors — are debossed just 1mm deep, providing all the visual definition without introducing internal overhangs or requiring support material. Dimensions Length: Exactly 120 mm (from front to rear bumper) Width: 44 mm (outer wheel edge to wheel edge) Height: 42 mm (including the roof hatches) Print Notes Support-Free: Designed to be printed entirely without supports. The debossed windows bridge easily, and the wheel overhangs are minimal. Bed Adhesion: The bottom 0.4 mm of the model (including the wheels) is sliced perfectly flat, yielding a wide contact patch for a flawless first layer. Infill: Since the core is fully solid, use your slicer's infill (10-15% is usually plenty) to control the final weight of the part.
Faceted SimHub Button Box
A clean, industrial-styled button box designed for sim racing rigs, controlling Wind, Pedals, and Bass Shakers via SimHub. The enclosure uses a faceted, dodecahedron-inspired geometry to eliminate flat overhangs and keep the footprint small. The front panel cuts a heavy 45° chamfer, hiding the seam where it snaps into the rear body. Features internal snap-fit prongs and receiver towers — no visible hardware required. Base dimensions reduce sharply toward the mount to avoid interfering with wheelbases or monitor arms. Built with clearances for standard Cherry MX switches and a toggle switch cut out for the top left.

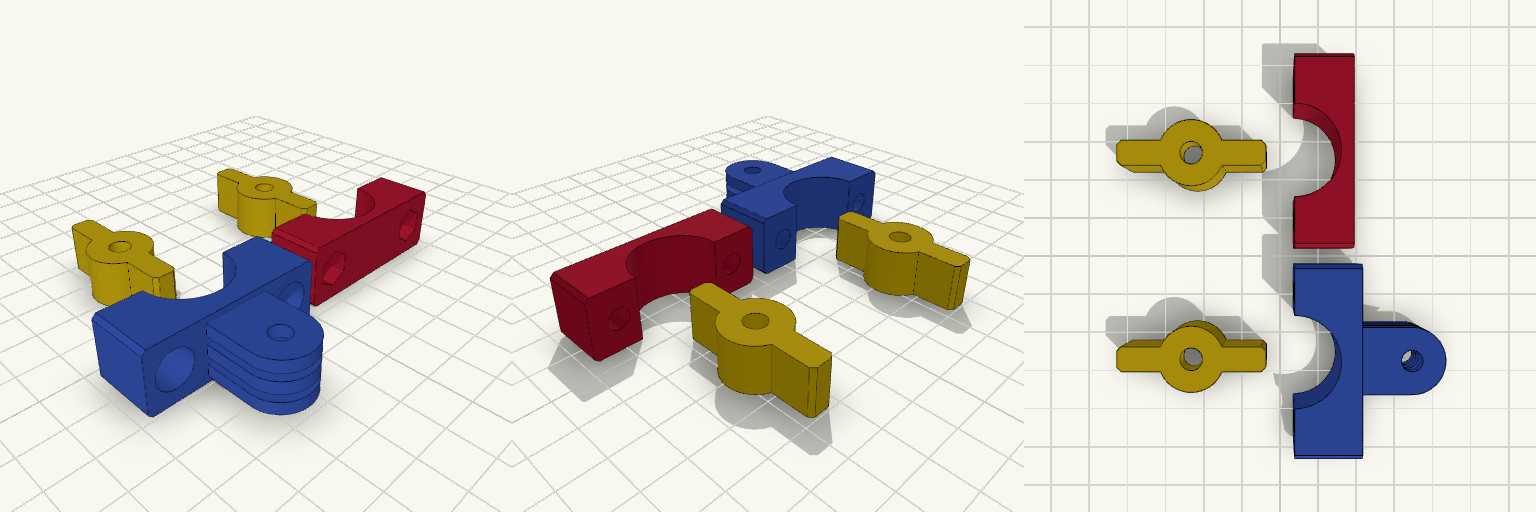

CycMount — Toolless Camera Clamp
Introducing CycMount, a robust camera mount engineered to secure action cameras to standard 22mm bicycle handlebars. Built with frequent swaps in mind, it utilizes custom wing nuts for a completely tool-free installation, allowing quick transfers between bikes. The integrated three-prong interface is precisely dimensioned with 3mm thick fingers on a 5mm pitch, ready to accept standard action camera housings and a 5mm pivot bolt. Design Features Strength by Orientation: Both clamp halves print flat on their sides, aligning the layer lines perpendicularly to the clamping stress for maximum strength. Support-Free: The horizontal print orientation ensures the 22mm handlebar bore and the 5.2mm pivot hole print perfectly round without requiring slicer supports. Tool-Free Adjustments: Includes two custom wing nuts designed with integrated M5 hex nut traps. Required Hardware 3× M5 Hex Nuts (two for the wing nuts, one for the bottom clamp) 2× M5 Cap Head Bolts (for the main clamp body) 1× M5 Bolt (for the camera pivot)
