Table-Clamp Book Holder
Created today
Description
A heavy-duty book rest that clamps directly to the edge of a desk or workbench. Built to hold reference books, manuals, or sketchpads open at a comfortable viewing angle without eating up desk space. The spine overhangs the desk slightly to keep the center of gravity stable, while a generous front lip holds pages down securely.
Remix Hooks
- Table Clearance: The throat is set to 50mm to handle thick workbenches. Drop
throat_hto 35mm if you're clamping it to standard office desks. - Book Canvas Size: The backboard defaults to 180mm wide. Scale the
cuboidspans up if you want to support massive hardcover atlases, or shrink them for a compact tablet holder. - Tilt Angle: Defined at
-15degrees. Push it to-25for standing desks, or pull it closer to0for line-level reference reading.
Print tip: The main holder body should be printed on its side (rotated 90 degrees) so the C-clamp throat and backboard print without massive under-supports.
Images
More like this
Explore more in Desk & Tech →
ATEN KVM Under-Desk Mount
Under-desk sliding bracket pair tailored for the ATEN CS1944DP and similar 44mm-height desktop devices. Built with outward-facing mounting flanges for easy screwdriver access and a rear stop to prevent the unit from pushing back when plugging in cables. Clearance: 45.5mm internal height leaves 1.5mm of vertical wiggle room, accommodating a strip of standard foam tape to add friction and protect the chassis. Hardware: Countersunk holes oriented upwards, suited for #8 or M4 flathead wood screws. Versatile: Two-piece design means width isn't constrained. Space them out to match the switch exactly. Printing: Best sliced by rotating 90 degrees onto the outer side walls to print completely support-free.
19.5mm Desk Edge Puck Mount
Edge-mounted charging cradle sized for the 33.5mm Google Pixel Watch magnetic puck. Designed to drop over a standard 3/4-inch (19.5mm) wood plank. Fitment: The 33.5mm bore sits at the rear of the housing. You push the puck in from the back, then slide the whole assembly over your desk edge — the wood itself traps the puck so it cannot back out. Cable Routing: An 8mm slot on the bottom allows the cable to drop cleanly out of the way. Incompatibilities: Does not fit full-sized phone Qi chargers or desks thicker than 19.5mm without adjustment. Phone hooks have been removed from this version.
Trade Paperback Honeycomb Bookmark
Honeycomb relief bookmark. Fits standard hardcovers and trade paperbacks. At 1.2mm overall thickness, it sits flat between the pages without stressing standard textbook or hardcover bindings, but may cause spine stretch if left for extended periods in tightly bound mass-market paperbacks. Fitment Dimensions Overall length: 140mm Overall width: 30mm Maximum thickness: 1.2mm Relief depth: 0.4mm
Handheld-Gehäuse mit herausnehmbarer Anschlussblende
Handheld-Gehäuse für eine selbstgebaute Konsole, bei dem die Kabel- und USB-Öffnung hinten nicht dauerhaft offen bleibt: Eine Klipp-Platte schließt sie und lässt sich bei Bedarf herausnehmen. Aussparung in der Rückwand: 100 × 30 mm, mittig Klipp-Platte: Außenrand 104 × 34 mm, Einsatz 99,6 × 29,6 mm, zwei Federarme mit Rastnasen, Fingermulde Innentiefe: 48 mm, Wandstärke 3 mm Display-Fenster 155 × 87 mm, Tastenlöcher 7,2 mm Druck: Schalen offen nach oben, Platte flach, ohne Stützen möglich
Pi 3 case
A bare Raspberry Pi 3 is so light that hooking up a standard HDMI cable instantly tips it off the desk. This case locks the board into a heavy enclosure and uses snap-on outer corner bumpers to give it some actual grip, so the board stays exactly where you put it. The port cutouts are oversized enough to accept real molded cables without them binding against the shell. Bed Fit: Everything is packed tightly to fit in a single run on a 180×180 mm print bed. Printing: All pieces sit flat on the plate. No supports required anywhere. Clearances: Built with a 0.4 mm gap around the board and lid joint so it slots together cleanly.

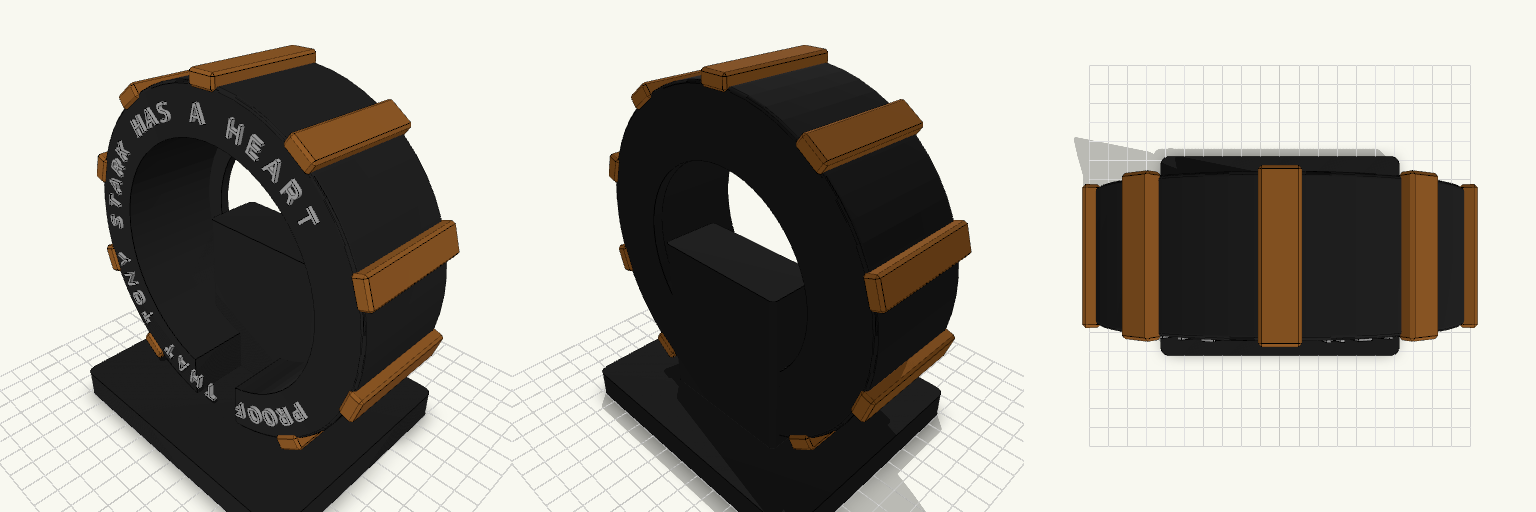

Vertical Arc Reactor Speaker Stand
