Tee-Spanner — Offset Bracket
Created today
Description
A sturdy, precision-measured stepped T-bracket designed to join or space components on multiple planes. The solid central pillar provides a heavy-duty connection between the base plate and the cross piece.
Dimensions
- Base Plate: 4.5" × 1" × 0.25"
- Cross Piece: 2.6" × 0.6" × 0.19"
- Overall Offset: 0.78" top-to-top (0.59" clearance between plates)
- Mounting Holes: 0.27" diameter, spaced 2" apart
Features
- Stepped dual-plane geometry
- Print-ready filleted outer corners
- Heavy center union block for shear strength
Images
More like this
Explore more in Workshop & Tools →
LockDrop — Packout Cup Holder
A rugged, drop-in cup holder designed to integrate perfectly with the Packout system. Secures easily onto any standard Packout lid using an integrated twist-lock cleat that sits flush for straightforward 3D printing. The main body accommodates standard tumblers and bottles while the heavy-duty walls and gussets ensure side-load stability. Features Twist-Lock Cleat: Drops into standard female Packout receivers with a friction fit. Flush Base Construction: Designed to print cleanly without complex supports for the bottom locking mechanism. Heavy-Duty Walls: Thickened sides with structural gussets engineered for shop environments. Front Branding: Embossed Milwaukee logo wrapping the front curve for a finished tool aesthetic. Drainage: Integrated center channel prevents liquid and debris buildup.

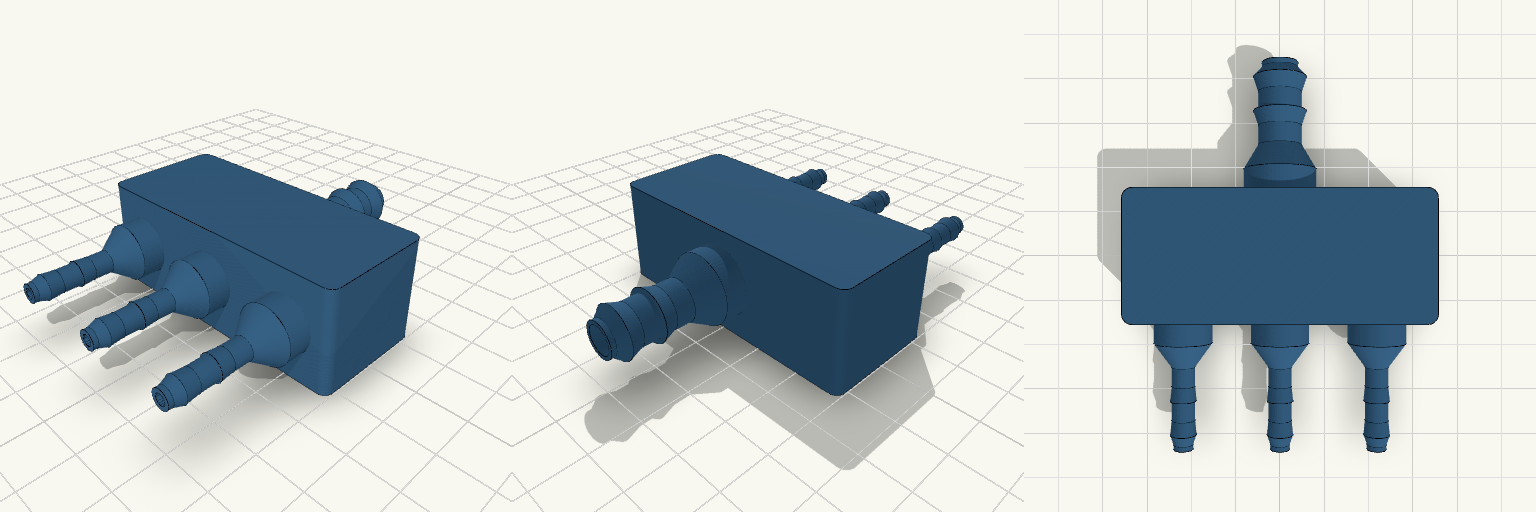

Robust 3-Way Irrigation Manifold
