Toolbox Front Latch Replacement C-Clip
Created today
Description

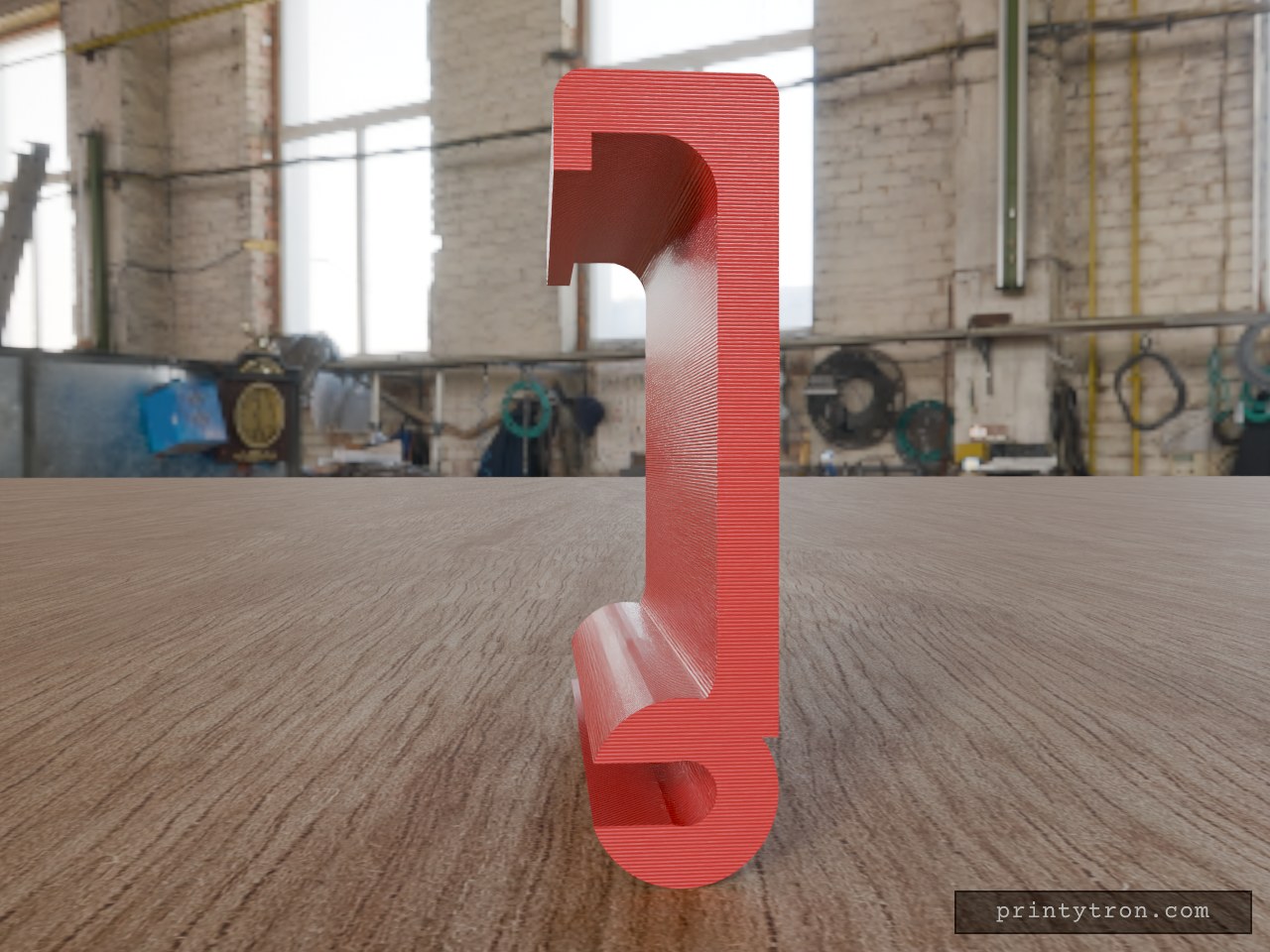

Replacement front latch for a STUFF Basic 20 inch toolbox, for when the original hinge loop or hook has snapped. One solid C-profile part, 61 mm wide, with an open clip at the bottom that snaps onto the box pin and a filleted L hook at the top.
Key numbers
- Overall: 61 mm wide, 65 mm tall, 18 mm deep
- Wall: 5 mm throughout
- Clip: 5.3 mm bore, 15.3 mm outer diameter, 5 mm gap
- Hook: 13 mm forward, 5 mm inside fillet, 2 mm outside fillet, 2.5 mm rounded tip
Printing
- Material: PETG
- Supports: none
- Orientation: lay it on its 61 mm side so the C-profile faces up
