Truss-Web Parallel Clamp Arm
Created today
Description
Industrial structural bridge for mounting a 4040 V-slot extrusion parallel to a standard 40mm round pipe.
This design strips away unnecessary bulk while maintaining high structural rigidity through an internal cross-braced truss. The main arm carries dual clamping faces, mating with custom outer caps that secure via standard M5 hardware.
- Dual-Clamp System: Full wrap-around clamps for both the 40mm pipe and the 40x40 extrusion.
- Tension Gaps: 1mm built-in clearance on the clamping faces ensures the bolts can bite down properly without the halves bottoming out.
- Weight Reduction: Large through-holes cut into the web remove non-structural mass and reduce print time, leaving an I-beam-like internal structure.
- Hardware: Uses standard M5 bolts. The main arm includes integrated hex catches for standard M5 nuts, while the outer caps feature counterbores for the bolt heads.
Images
More like this
Explore more in Workshop & Tools →
Zauberstab Verschluss 2.0
Zweiteiliger, hohler zylindrischer Testkörper zur Prüfung von FDM-Toleranzen. Beide Teile verfügen über eine geschlossene Außenwand und schließen bündig ab. Feste Abmessungen: Außen 30.8 mm, Innen 21.8 mm Mindestwandstärke: 1.5 mm im kritischen Bereich der Nuten Mechanismus: Bajonettverschluss mit Arretierungsnocke gegen unbeabsichtigtes Öffnen Druckbar: Ohne Stützstrukturen, flach auf dem Druckbett positioniert
60mm OD Flanged 45° Pipe
60mm outer diameter flanged pipe with a 45-degree elbow. Features a continuous 56mm inner bore with a 2mm wall thickness. The 100mm OD flange is positioned exactly 30mm from the base and runs 3mm thick. Check your clamp or mating collar against the flange thickness and 100mm outer diameter. No mounting holes are drilled; this part is built for bonded or slip-fit assemblies where the 56mm internal passage must remain entirely unobstructed.
Matix Snap-Fit Test Frame
Un piccolo frammento della scatola principale, isolato e progettato per essere stampato velocemente. Serve per testare fisicamente l'inserimento e lo scatto del frutto BTicino Matix prima di impegnare ore nella stampa del pezzo completo. Orientamento fedele: Si stampa in verticale, in modo che le linee di livello (layer) e i ponti della fessura riproducano esattamente le condizioni della scatola finita. Fianchi rigidi: Il profilo a "C" impedisce alla parete di flettere quando premi l'interruttore. Risparmio: Pochi grammi di filamento per verificare le tolleranze di aggancio.

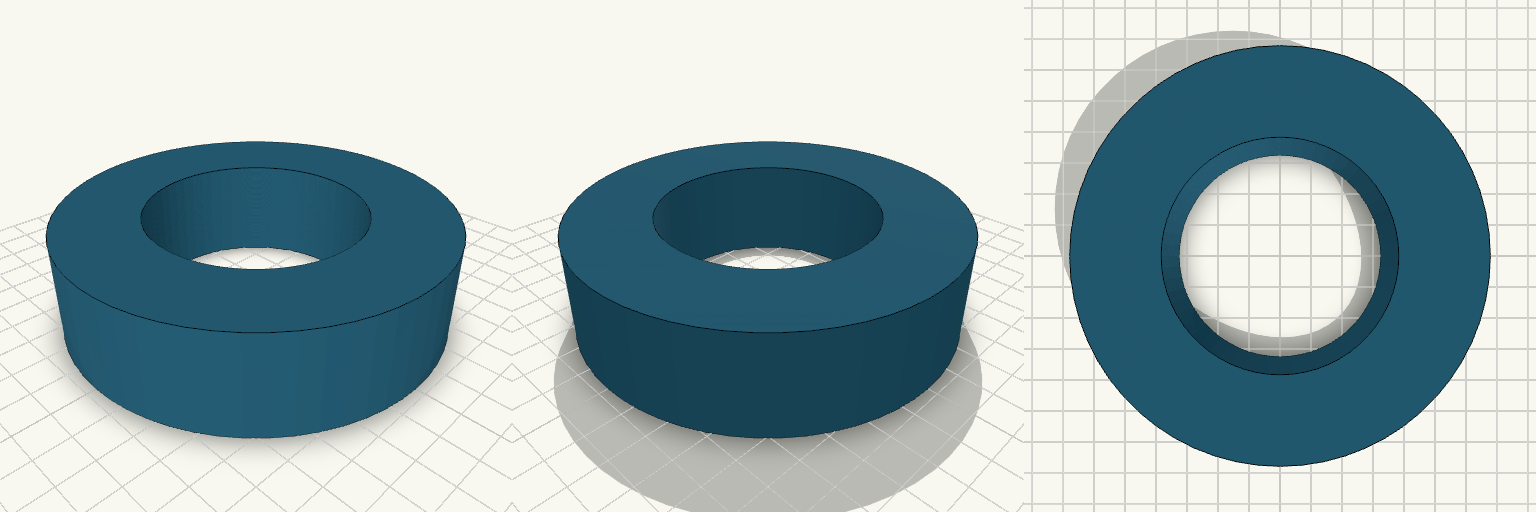

O-Ring — Solid Spacer
