Xenoa K1
Created today
Description
What it's for

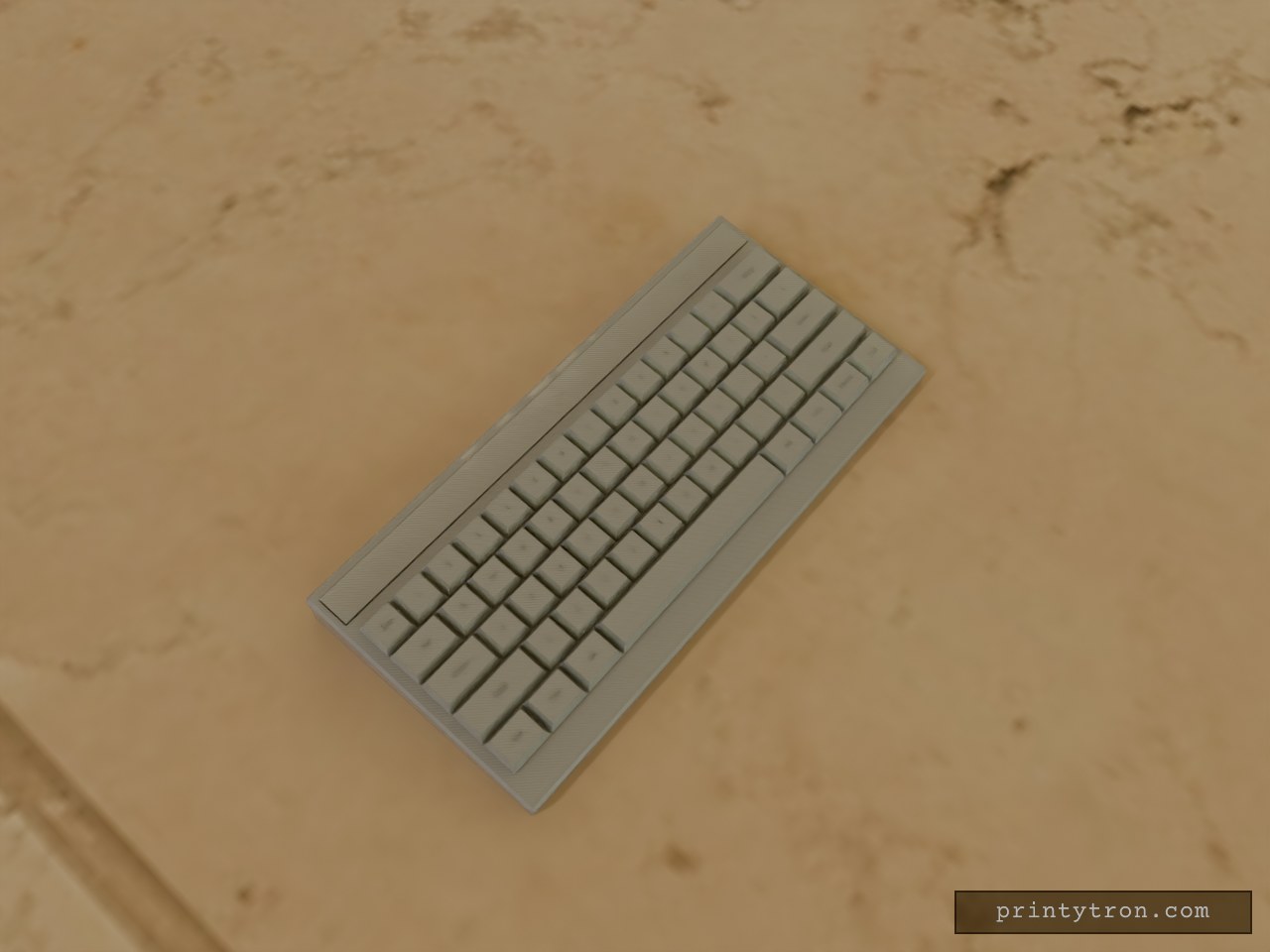

A 60% staggered mechanical keyboard case with an ultra-wide top bezel designed to house an edge-to-edge display panel. Features GH60-compatible tray-mount standoffs, a robust rear port cluster (two USB-C, two USB-A, and an auxiliary jack), and a dedicated rear slide switch slot for hardware toggles like an RGB kill switch.
Dimensions
- Overall Footprint: ~297 mm wide × 140 mm deep.
- Typing Angle: 6 degrees.
- Plate Cutouts: 14.2 mm square, spaced at standard 19.05 mm intervals (supports Cherry MX-style switches, including Hall Effect variants).
Print notes
- Material: Designed for rigid materials like PLA, PETG, or ABS. A translucent filament will allow internal RGB to bleed through the sides.
- Orientation: Print flat on the bottom base. Minimal supports needed for the rear port cutouts.
- Clearance: Standoffs are sized for M2/M2.5 self-tapping screws.
Photos
Technical views
More like this
Explore more in Desk & Tech →
Tiki Speaker Enclosure & Pedestal
Sliding a hollow sleeve over a speaker means the device drags on the desk if you ever need to move it. This adds a dedicated pedestal base to the enclosure. The Tiki drops into a perfectly toleranced pocket, and the Echo Dot sits flat on the floor inside it, locking everything together as a single solid unit you can actually pick up. Dimensions Pedestal Footprint: 128 mm diameter Tiki Height: 140 mm (sits 10 mm deep in the base) Clearance: 0.75 mm gap around the lip so the shell drops in without binding Cable Management: Rear cutouts in both pieces align perfectly to let the power cord out
CareProof V1 Sensor Enclosure
A complete modular enclosure system designed to house the components of the CareProof V1 tracking and monitoring node. The main chassis splits into a generous front housing and an overlapping rear cover, securely fastened with M3 corner screws to provide easy access for wiring adjustments. Included Components Front Housing: 152 × 105 × 28 mm primary shell with dedicated cutouts for a status LED, vent slots, a 24 mm PIR sensor aperture, and an embossed tap zone. Rear Cover: Matching backplate with an 8 mm alignment lip and M3 screw interfaces. NFC Bracket: Removable 50 × 50 mm internal sled to hold a PN532 module directly against the front face. PIR Bracket: Basic 35 × 30 mm retention plate for the motion sensor. Door Sensor Unit: Separate two-piece 40 × 20 mm enclosure designed to hold a standard magnetic reed switch on the client's door.
Folding Flat-Pack Name Tag
A print-in-place desk plate that prints entirely flat and features an integrated hinged kickstand. Designed for easy setup, the outer frame swings backward to form a stable tripod base. Features of this design: Print-in-place captive hinge mechanism with a 0.4mm tolerance Heavyweight 4mm main card thickness for rigidity Recessed nested geometry allowing it to collapse back into a single flat sheet Embossed typography using Archivo Black for high legibility

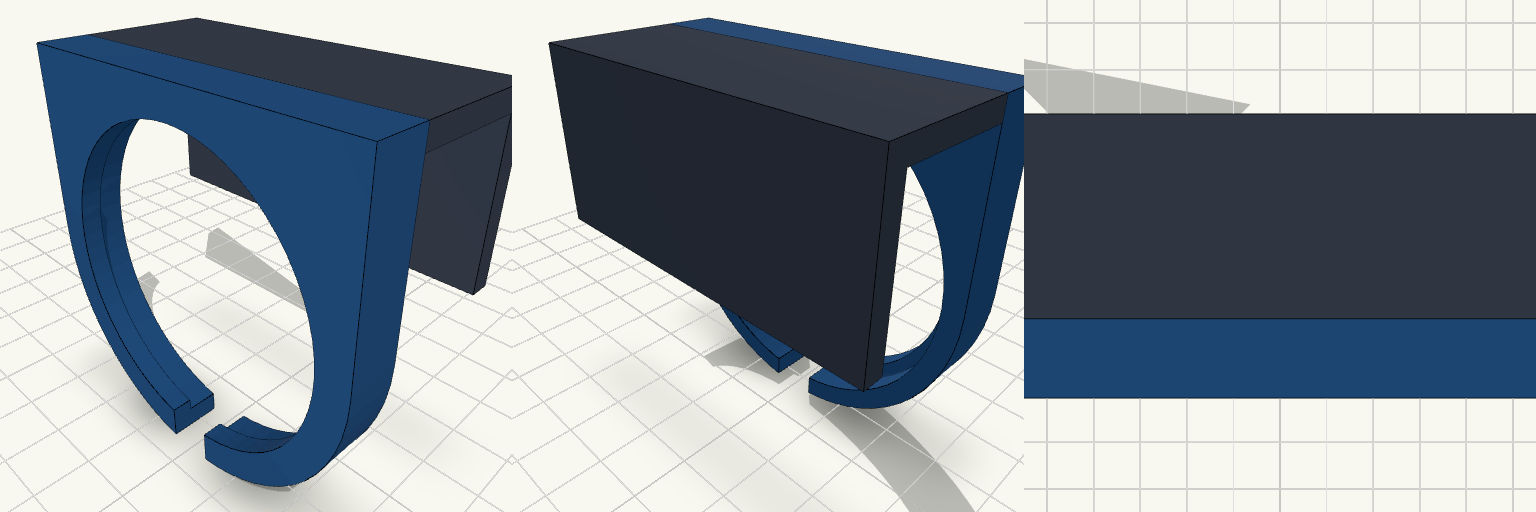

19.5mm Desk Edge Puck Mount
